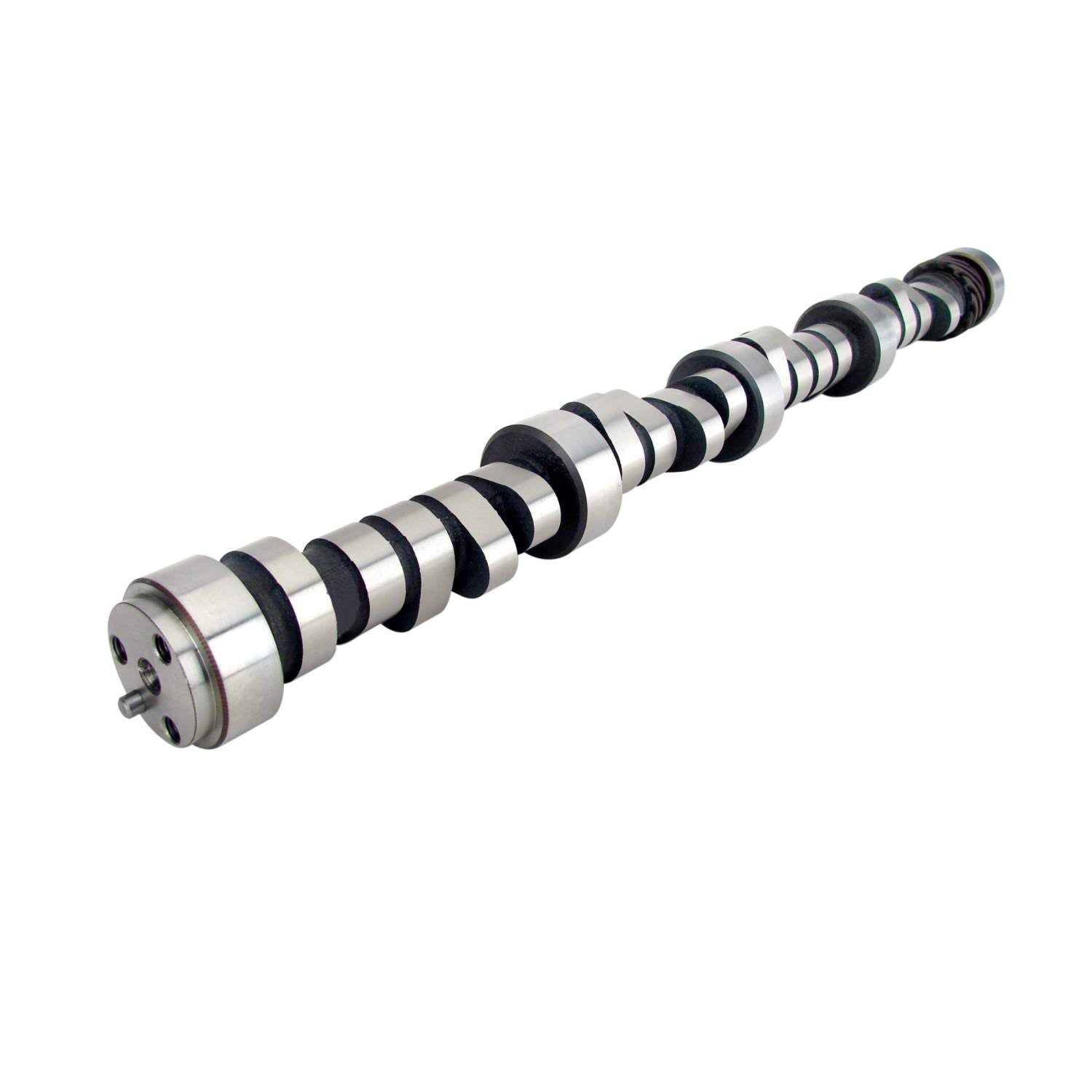

Xtreme Marine 230/236 Hydraulic Roller Cam For Chevrolet Big Block GEN VI

Xtreme Marine 230/236 Hydraulic Roller Cam Vehicle Specific

• 1996-1999 Chevrolet 454/502 GEN VI Big Block

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584082354
• Advertised Exhaust Duration: 290
• Advertised Intake Duration: 284
• Amazon ASIN: B000VU0FZE
• Assembly Lubricant Included: No
• Basic Operating RPM Range: 2,200-5,800
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Roller
• Cam and Lifter Kit Upgrade: CL01-451-8
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Camshaft Series: Xtreme Marine
• Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
• Exhaust Duration at .050 inch Lift: 236
• Exhaust Valve Lift: 0.547
• Grind Number: XM284HR
• Intake Duration at .050 Inch Lift: 230
• Intake Valve Lift: 0.547
• K-Kit Upgrade: K01-451-8
• Lifter Type: Hydraulic Roller
• Lifters Included: No
• Lobe Separation: 112
• SK-Kit Upgrade: SK01-451-8
• Usage: Marine
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.3 x 3 x 2.7 inches
• Weight: 10.8467 POUNDS
