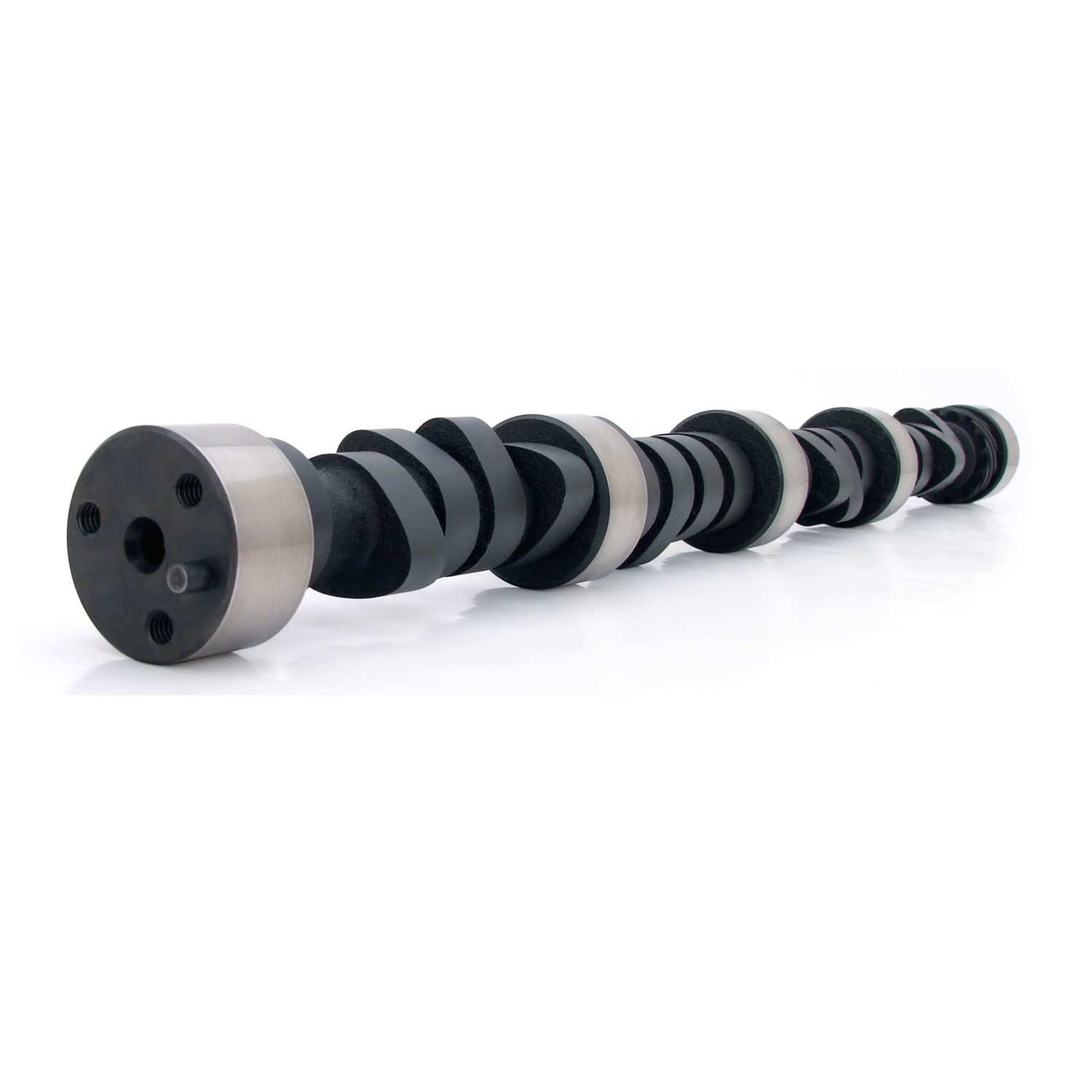

Xtreme Energy NIT 224/230 Hydraulic Flat Cam For Chevrolet Big Block 396-454

Xtreme Energy NIT 224/230 Hydraulic Flat Tappet Cam for Chevy Big Block 396-454 (Nitrided). Good for street machines. A stock converter will work, but best with a 1800+ stall. Slightly rough idle. Vehicle Specific

• Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584177784
• Advertised Exhaust Duration: 280
• Advertised Intake Duration: 268
• Amazon ASIN: B002EE6JW8
• Assembly Lubricant Included: Yes
• Basic Operating RPM Range: 1,600-5,800
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Flat Tappet
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Nitrided Cast Iron
• Camshaft Series: Xtreme Energy
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Exhaust Duration at .050 inch Lift: 230
• Exhaust Valve Lift: 0.52
• Grind Number: XE268H
• Intake Duration at .050 Inch Lift: 224
• Intake Valve Lift: 0.515
• Lifter Type: Hydraulic Flat Tappet
• Lifters Included: No
• Lobe Separation: 110
• Usage: Street/Strip
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.6 inches
• Weight: 10.5381 POUNDS
