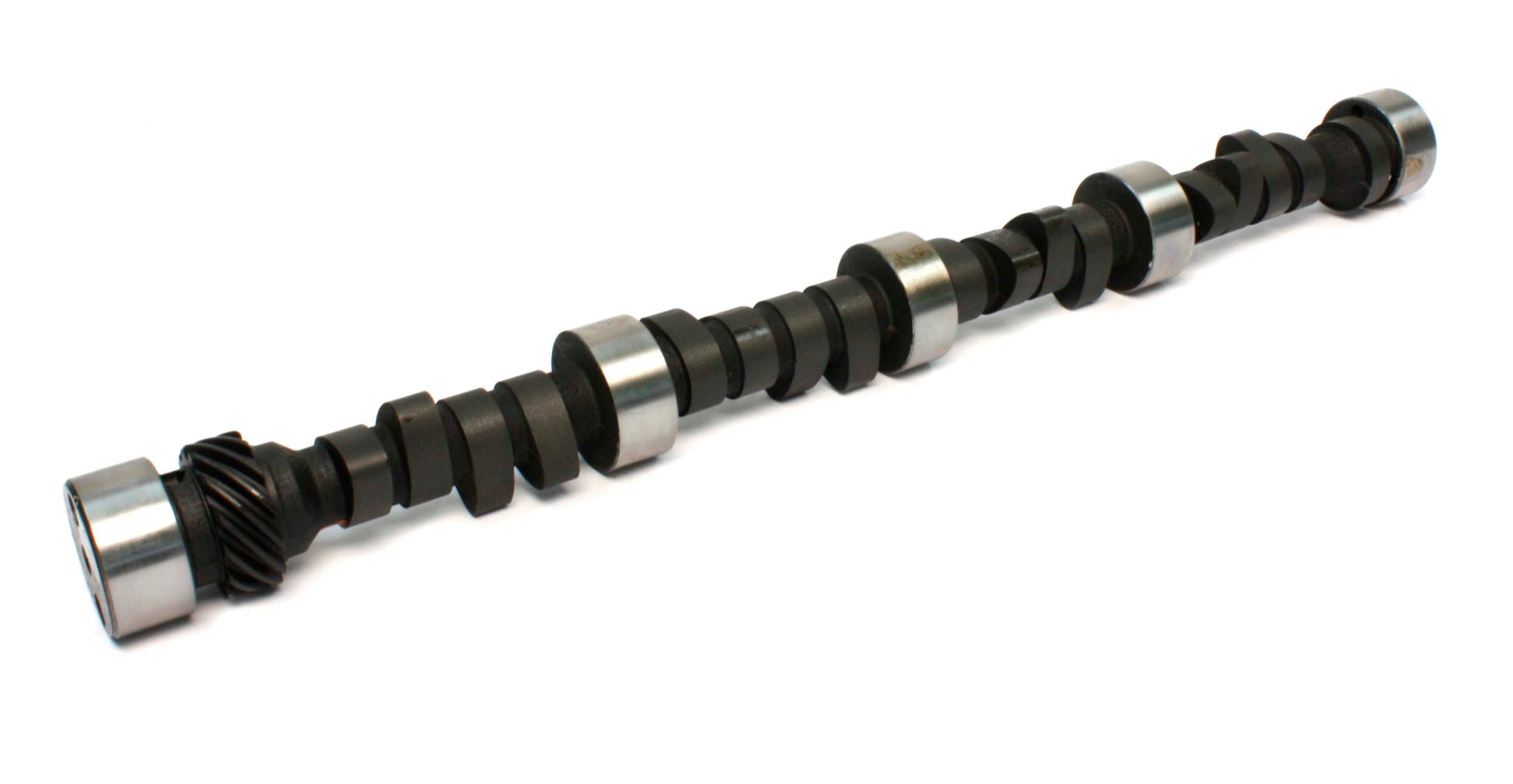

Xtreme Energy 4/7 Swap 244/252 Solid Flat Cam For Chevrolet Small Block

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. Vehicle Specific

• Fits Chevrolet GEN 1 Small Blocks including the 262
• or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early
• but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1
• LS2
• LS3 or any LS-based 4. 8
• 5. 3
• 5. 7
• 6. 0 and 6. 2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
• 265
• 267
• 283
• 302
• 305
• 307
• 327
• 350 and 400. Does not fit LT1/LT4

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584096672
• Advertised Exhaust Duration: 290
• Advertised Intake Duration: 282
• Amazon ASIN: B001G7CWW0
• Assembly Lubricant Included: Yes
• Basic Operating RPM Range: 2,400-6,800
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Solid Flat Tappet
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Camshaft Series: Xtreme Energy 4 and 7 Swap Firing Order
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Exhaust Duration at .050 inch Lift: 252
• Exhaust Valve Lift: 0.54
• Grind Number: XE282S
• Intake Duration at .050 Inch Lift: 244
• Intake Valve Lift: 0.52
• Lifter Type: Solid Flat Tappet
• Lifters Included: No
• Lobe Separation: 110
• Usage: Street/Performance
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 3.1 x 2.6 inches
• Weight: 8.4217 POUNDS
