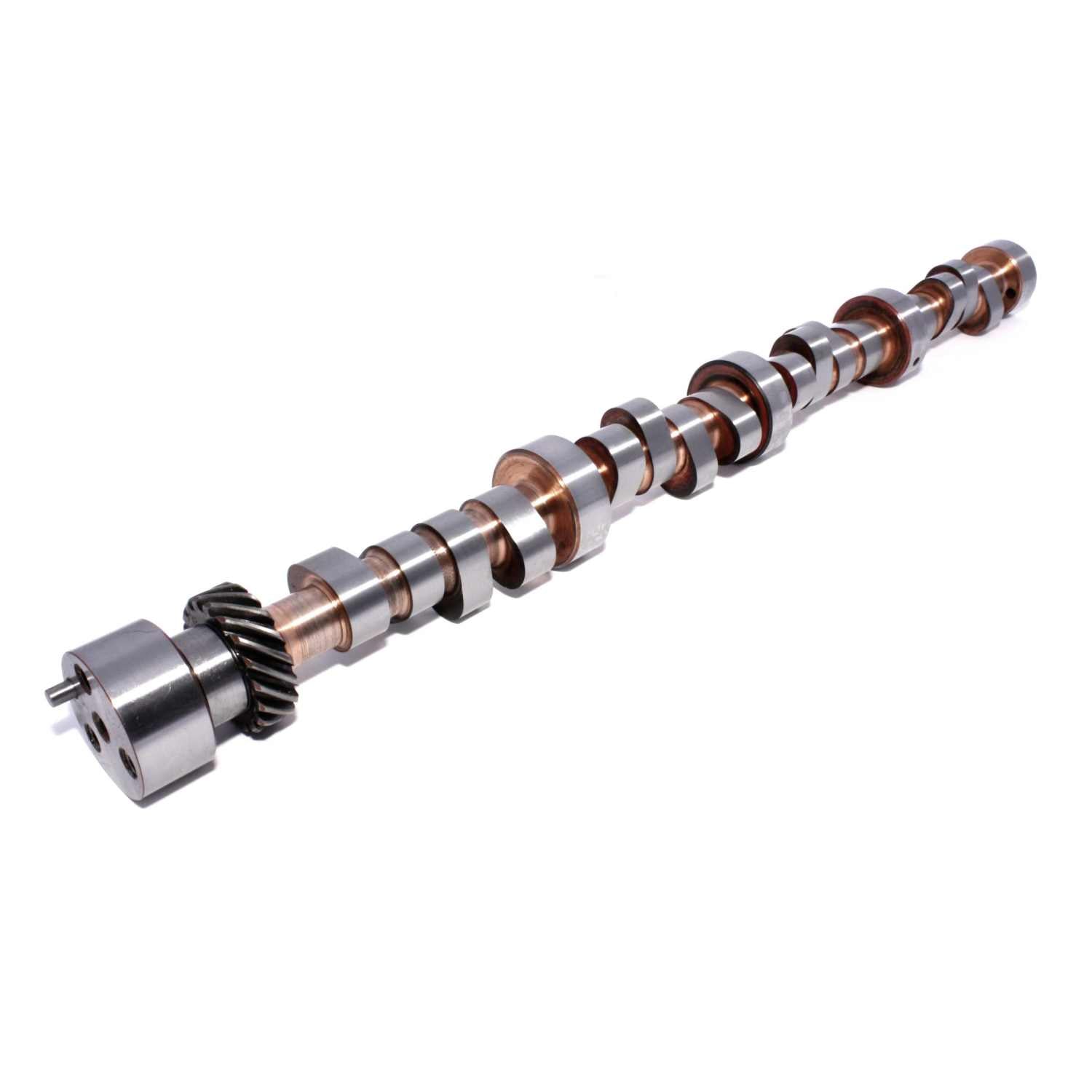

Xtreme Energy 242/248 Solid Roller Cam For Chrysler 383-440

Xtreme Energy 242/248 Solid Roller Cam for Chrysler 383-440 (Three-Bolt). 9.5:1 Compression 3000+ stall. Strong mid-range with a lopey idle. Vehicle Specific

• 3-Bolt Camshaft Design - Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584081852
• Advertised Exhaust Duration: 286
• Advertised Intake Duration: 280
• Amazon ASIN: B000P5G9AK
• Assembly Lubricant Included: No
• Basic Operating RPM Range: 2,500-6,200
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Solid Roller
• Cam and Lifter Kit Upgrade: CL23-701-9
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Camshaft Series: Xtreme Energy
• Engine Family: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
• Exhaust Duration at .050 inch Lift: 248
• Exhaust Valve Lift: 0.576
• Grind Number: XR280R
• Intake Duration at .050 Inch Lift: 242
• Intake Valve Lift: 0.57
• K-Kit Upgrade: K23-701-9
• Lifter Type: Solid Roller
• Lifters Included: No
• Lobe Separation: 110
• SK-Kit Upgrade: SK23-701-9
• Usage: Street/Performance
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.4 x 2.9 x 2.6 inches
• Weight: 9.1712 POUNDS
