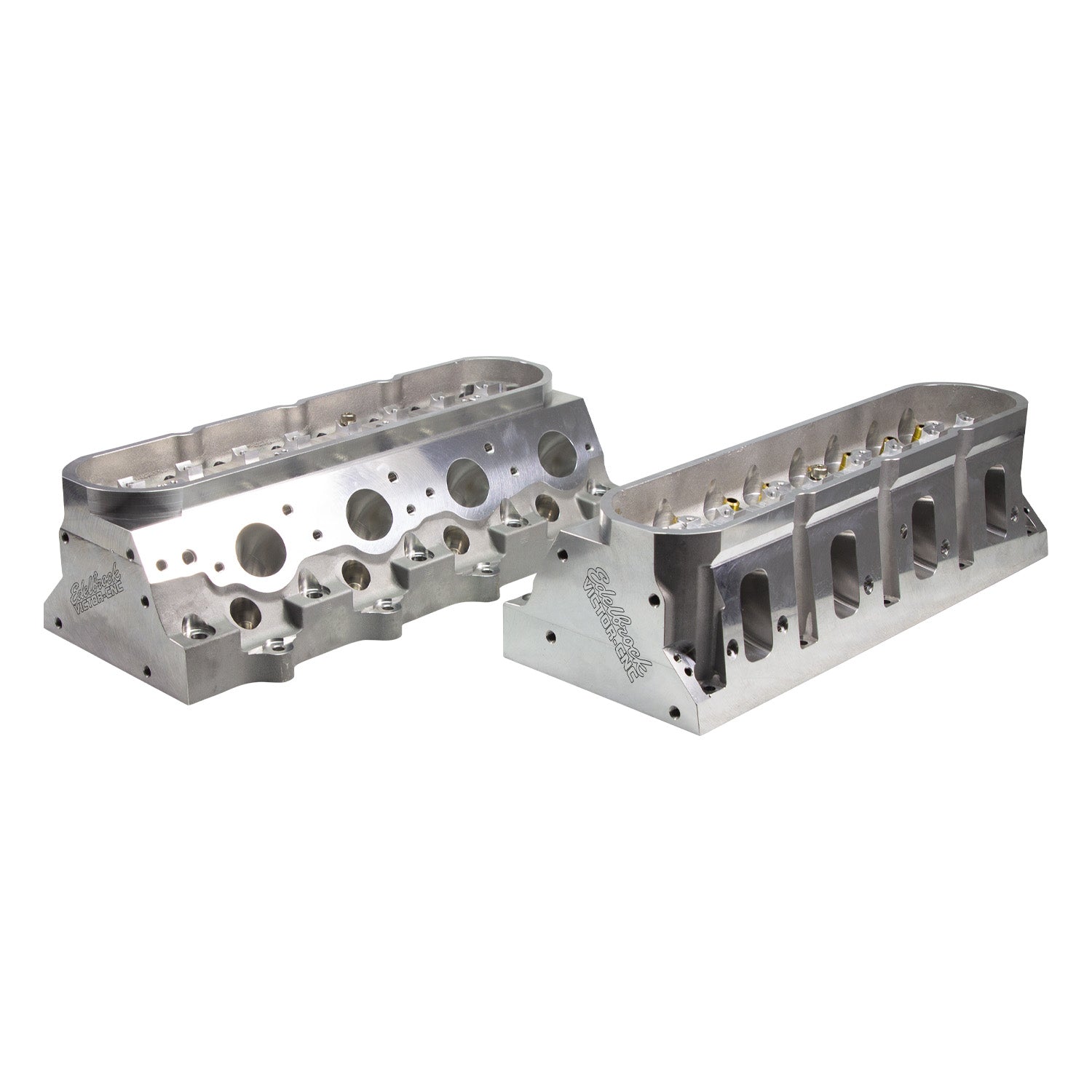

Victor CNC GM LS7 12­­° 6-Bolt Cylinder Head 291cc .220” Int Port CI PM Seat

The Edelbrock Victor CNC 12 6-Bolt Head for GM LS7 291cc/69cc Individual #77679 is designed for maximum effort naturally aspirated and boosted applications. It features .220 raised intake runners and .100 raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220 raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700 thick deck and .400 raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications. All Edelbrock Victor CNC heads feature patented Clean Cast Technology(TM) , a process that eliminates casting flaws and promotes a smoother internal surface finish for greater air and coolant flow. These benefits provide more power and increased cooling ability. Part #77679 is a bare head that features: 291cc runners, 69cc chambers, 2.200 intake/1.615 exhaust valves, CI PM valve seats and no down nozzles.

• Premium 110 BHN aluminum alloy, .220" raised intake port, .100" raised exhaust port, CI PM valve seats, 307cc or 291cc intake port volume, 2.250" or 2.200" x 1.615" valve job
• 400" raised rail works w/ aftermarket rockers; .100" raised exhaust port allows use of stock & aftermarket manifolds
• .750" thick deck surface increases integrity; Reinforced solid rocker rail increases rigidity & stability; 355T6 aluminum withstands race conditions
• 100% CNC-ported runners optimize volume, atomization & velocity.
• Increased clamping capacity greatly improves head gasket retention in high horsepower & boosted applications.
• Can be used in small & large cubic inch, hardcore street applications.
• Sold Bare, Fully Machined with Valve job.
• 6-bolt head design is compatible w/ the advanced EDELBROCK® LS Race, GM LSX Blocks, or OEM 4-bolt blocks.
• The heads also utilize the popular LS 6-bolt head design, making them compatible with both the EDELBROCK® LS Race Block and GM LSX Blocks.
• Increased clamping capacity greatly improves head gasket retention in high horsepower and boosted applications.
• The raised runner and rolled valve angle increase overall flow capability while an improved water jacket design improves thermal conductivity.

Vehicle Specific

• GM: LS7: Small-Block: 427 (7.0L), 2014-2015 Chevrolet Camaro Z/28, 2011-2013 Chevrolet Corvette C6 Z06, 2013-Chevrolet Corvette C6

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347776795
• Accessory Bolt Holes Drilled: Yes
• CNC Ported: Yes
• CNC-Machined Combustion Chamber: Yes
• CNC-Machined Exhaust Runner: Yes
• CNC-Machined Intake Runner: Yes
• Camshaft Style: Roller
• Combustion Chamber Style: Heart
• Combustion Chamber Volume: 69
• Construction Type: Bare
• Cross sell / Upsell Part Numbers: 146202B-LSXR 102mm Intake Manifold; LS7 1479-16-GM LS Upgraded OEM Rocker Arms (LS7) 13704TL-KIT-GM LS7 & Gen V LT Rocker Arm Upgrade Kit & Installation Tool
• Cylinder Head Material: 356-T6 Aluminum
• Cylinder Head Style: Bare
• Deck Height: 9.240"
• Deck Thickness: .750"
• Exhaust Port Location: Raised 0.100"
• Exhaust Port Shape: D-Port
• Exhaust Runner Volume: 93
• Exhaust Valve Angle: 12
• Family: Victor CNC
• Fuel Injection Down Nozzles: No
• Grade Type: Race
• Guide Plates Included: No
• Heat Crossover: Yes
• Intake Port Shape: Rectangle
• Intake Runner Location: Raised 0.220"
• Intake Runner Volume: 291
• Intake Valve Angle: 12
• Intake Valve Job Diameter: 2.200
• Machined for O-Ring: No
• Material: Aluminum
• Notes: 6-Bolt design compatible for both OEM & 6-Bolt blocks, 0.400" Raised Rocker Rail Requires COMP Shaft Mount Rockers OR part 54520; OEM LS7 Rocker Adaptor (Requires qty 2)
• Oiling Style: Through Pushrod
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Related Products: 146202B-LSXR 102mm Intake Manifold; LS7 60840001K2LUN-Crank & Rod Kit, LS (Non LS7 Type 5) 58X Reluctor 5497-LS7 Timing Cover (Fits RHS® or GM Blocks) 28875-Super Victor Small Block Chevy LS7 Intake Manifold EFI STD Flange 28905-Super Victor Small Block Chevy LS7 EFI Dominator Flange Intake Manifold 2887-Super Victor Small-Block Chevy LS7 Intake Manifold Carb 2890-Super Victor Small-Block Chevy LS7 Dominator Flange Carburetor Intake Manifold 146204-LSXHR 103mm Intake Manifold for LS7 Raised Rectangular Port
• Remanufactured: No
• Required Products: 54520 - ROCKER ARM STAND, FOR LS7
• Rocker Arm Nuts Included: No
• Rocker Arm Studs/Bolts Included: No
• Rocker Arms Included: No
• Series: Victor CNC
• Spark Plug Style: Angle
• Steam Holes Drilled: Yes
• Valve Cover Mounting Style: Center Bolt
• Valve Guide Material: Manganese Bronze
• Valve Guides Included: Yes
• Valve Locks Included: No
• Valve Seals Included: No
• Valve Seat Machine Style: 4-angle intake/4-angle exhaust
• Valve Seat Material: CI-PM (Copper Infiltrated Powdered Metal)
• Valve Seats Machine: Yes
• Valve Spring Retainers Included: No
• Valve Springs Included: No
• Valve Stem Seals Included: No
• Valves Included: No

Extended Information:

• Country of Origin: China
• Emissions : 3

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25.25 x 10.25 x 7.5 inches
• Weight: 22.5 POUNDS
