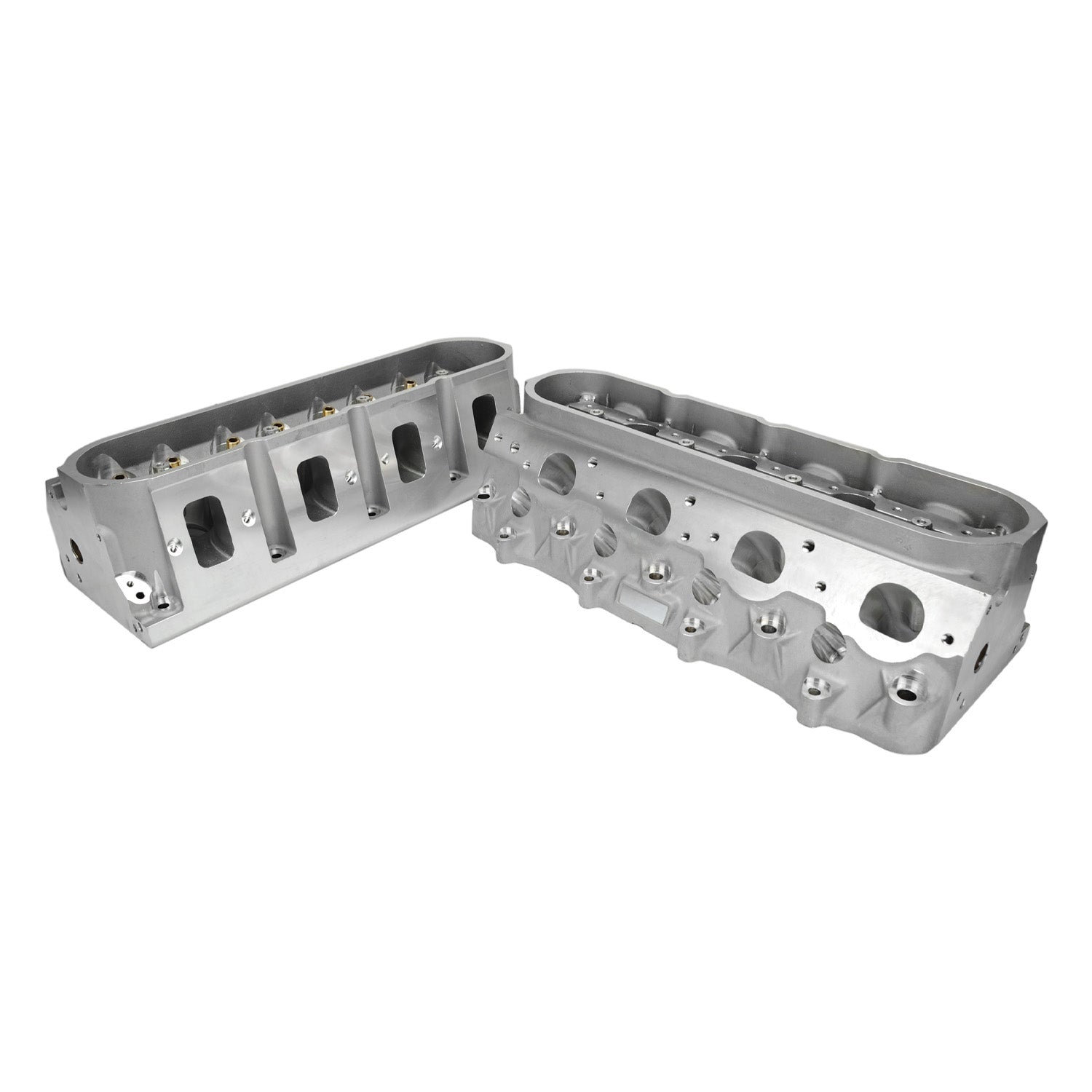

Victor CNC LS3 263CC 2.165/ 1.600 - Bare

The Edelbrock Victor CNC 11 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77670 is specifically designed for high horsepower, naturally aspirated and boosted applications. Edelbrock Victor CNC 11 6-Bolt Cylinder Heads for GM LS3 engines utilize the popular LS 6-bolt design, making them compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and greatly improves head gasket sealing, making them ideal for high compression naturally aspirated engines and high boost applications. These heads are manufactured with premium materials and machined to the industry's tightest tolerances. Features include an 11 valve angle, copper infiltrated powder metal valve seats and fully CNC-machined ports for maximum airflow. The CNC-machined runners and chambers, as well as the rolled 11 valve angle, increase overall flow capability, while the revised water jacket design enhances thermal conductivity and tunability. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700 thick deck and reinforced rocker rails make these cylinder heads ideal for high horsepower applications. Edelbrock #77670 is a bare head. Vehicle Specific

• GM:LS3:Small-Block:376 (6.2L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347776702
• CNC Ported: Yes
• Combustion Chamber Volume: 68
• Construction Type: Bare
• Exhaust Runner Volume: 103_x000D_
• Exhaust Valve Diameter: 1.6
• Family: Victor CNC
• Grade Type: Performance
• Guide Material: Manganese Bronze
• Intake Runner Volume: 263
• Intake Valve Diameter: 2.165
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Retainer Included: No
• Series: Victor CNC
• Valve Angle: 11
• Valve Included: No
• Valve Springs Included: No

Extended Information:

• Country of Origin: US
• Emissions : 3

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.5 x 9 x 7 inches
• Weight: 22.5 POUNDS
