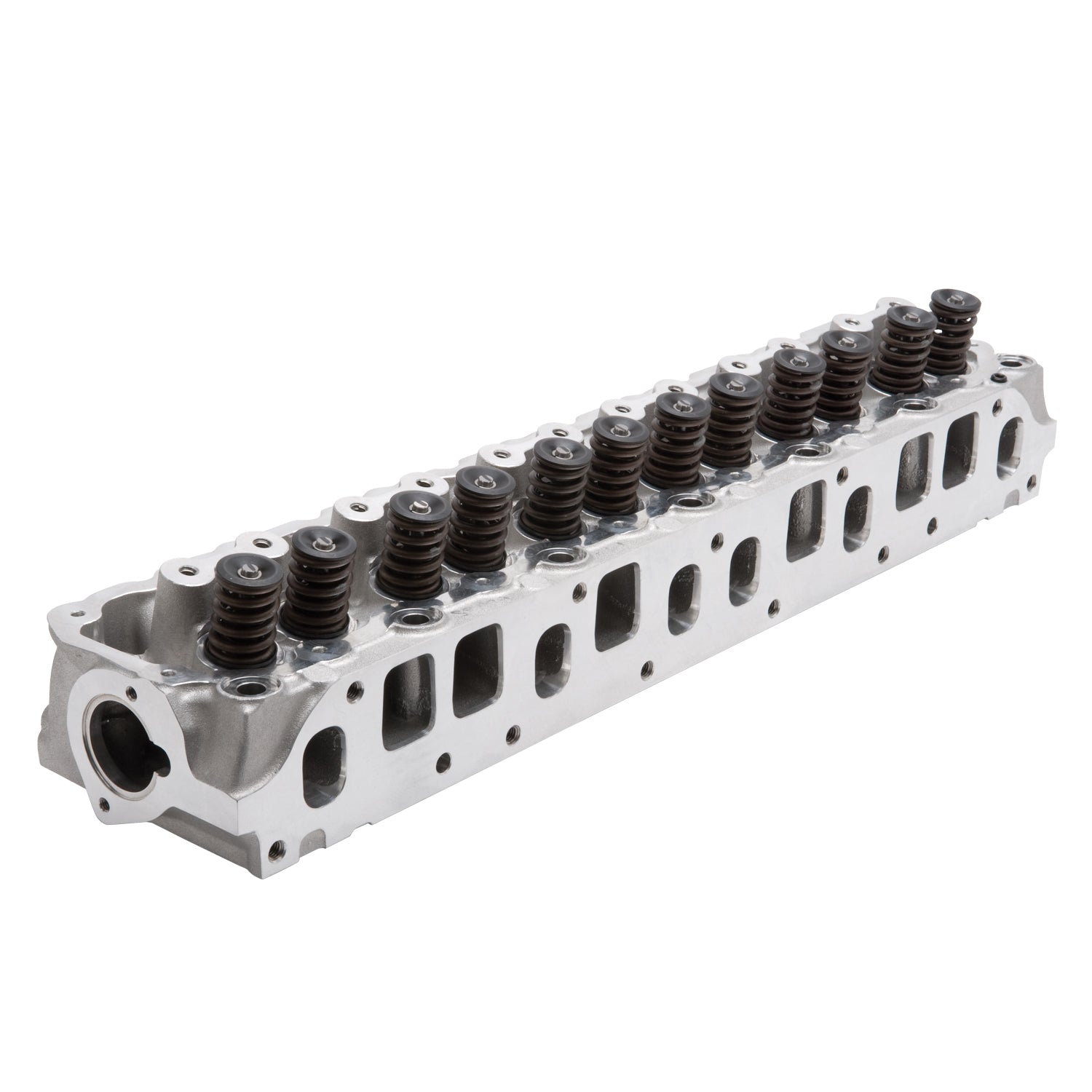

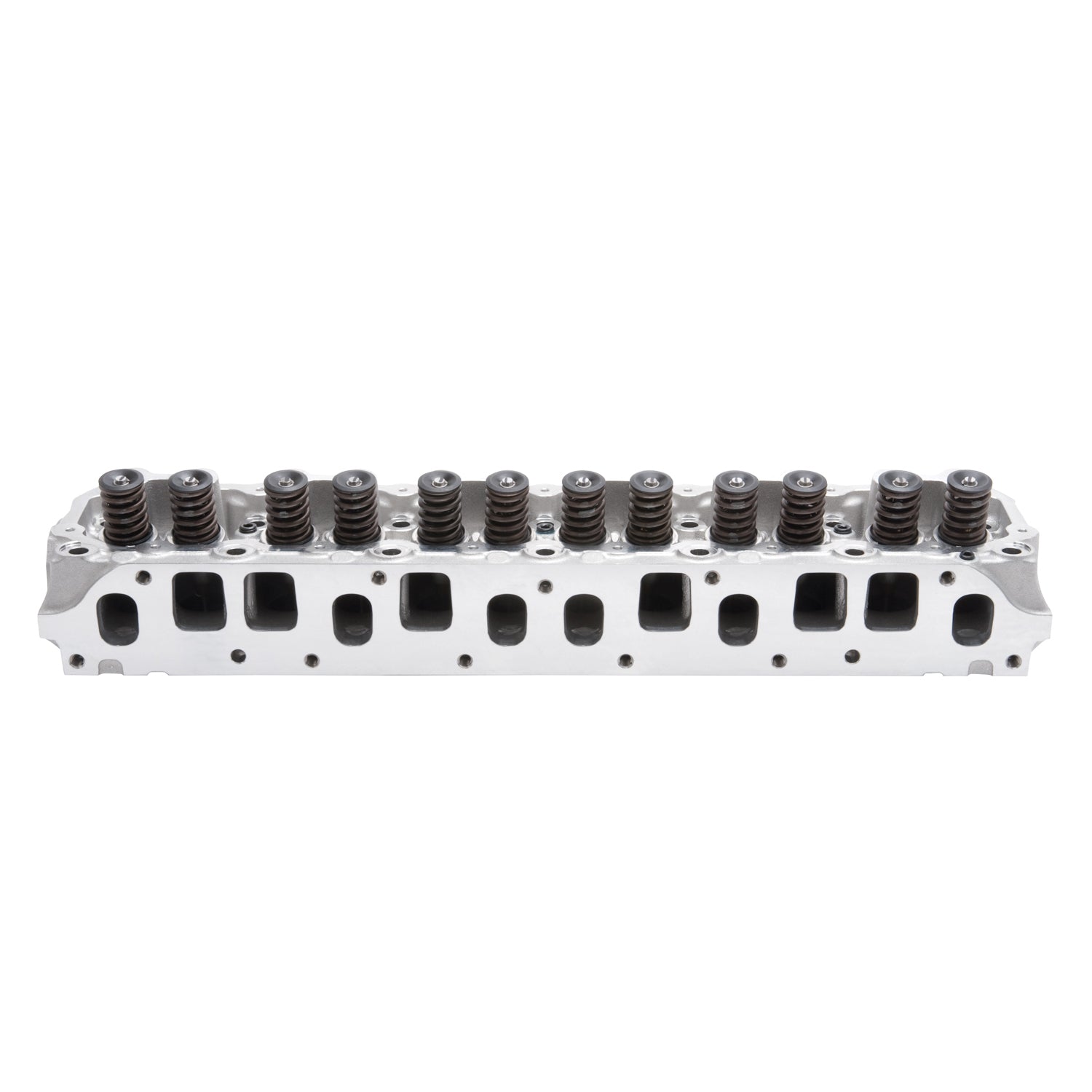

Performer Jeep 4.0L Cylinder Head

The Edelbrock #50169 Performer Cylinder Head is designed as a bolt-on performance upgrade for 1987-2006 Jeep's with a 4.0L inline six engine. They feature better flowing intake/exhaust ports along with a modern combustion chamber design and back cut and swirl polished valves for improved flow. Retains the stock valve angle, pushrod length and valve cover bolt pattern for use with factory components and off the shelf accessories. Larger reinforced rocker bosses for improved strength at high RPM and Heli-Coil threaded inserts in the intake manifold bolt holes for added strength as well as a 3/4" deck throughout the head also promotes stiffness and durability. This cylinder head is machined to accept both distributor or coil pack ignition. To optimize airflow, this cylinder head is designed with a 1991-2006 4.0L intake port location and 1991-98 4.0L exhaust port size. As a result, this cylinder head must be used with a 1991-2006 intake manifold and a 1991-1998 exhaust manifold. Aftermarket exhaust headers can also be used in place of 1991-1998 exhaust manifolds and MUST be used in place of 1999-2006 exhaust manifolds. Most aftermarket exhaust headers are compatible, but please check with the exhaust header manufacture to verify. This head is NOT compatible with 1999-2006 OEM exhaust manifolds. Vehicle Specific

• AMC:-:256 (4.2L)
• Jeep:-:244 (4.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347501694
• 9040: D-215-94
• Assembled: Yes
• CNC Ported: No
• Camshaft Type: Flat Tappet
• Combustion Chamber Volume: 55
• Construction Type: Complete
• Cylinder Head Gasket Included: No
• Deck Height: 9.429
• Deck Thickness: 0.750
• EGR Port: No
• Exhaust Port Location: Standard
• Exhaust Runner Volume: 77
• Exhaust Valve Diameter: 1.50
• Family: Performer
• Grade Type: Performance
• Guide Material: Manganese Bronze
• Guide Plates Included: No
• Head Casting Number: 31-50159
• Horsepower: 200-300
• Intake Runner Volume: 144
• Intake Valve Diameter: 1.91
• Material: Aluminum
• Mounting Hardware Included: No
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Retainer Included: Yes
• Rocker Arm Studs/Bolts Included: No
• Rocker Arms Included: No
• Seat Angle: Exhaust 45 deg/Intake 45
• Seat Material: Ductile Iron
• Series: Performer
• Valve Angle: 10
• Valve Cover Gasket Included: No
• Valve Lock Material: Steel
• Valve Locks Included: Yes
• Valve Seals Included: Yes
• Valve Spring Diameter: 1.26
• Valve Spring Maximum Lift: 0.540
• Valve Spring Retainers Included: Yes
• Valve Springs Included: Yes
• Valve Stem Diameter: 0.3125
• Valves Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 33.5 x 8.75 x 7.5 inches
• Weight: 41.75 POUNDS
