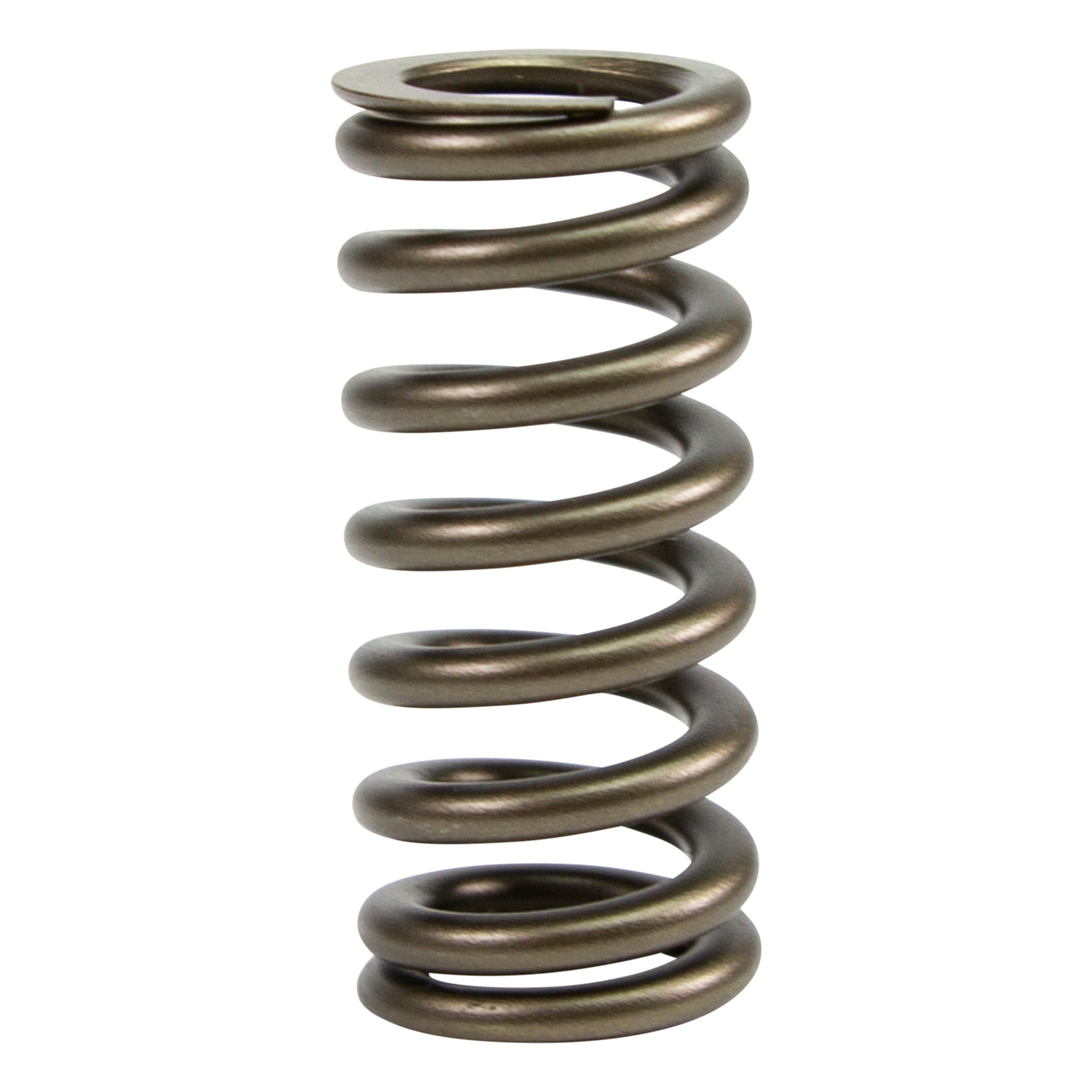

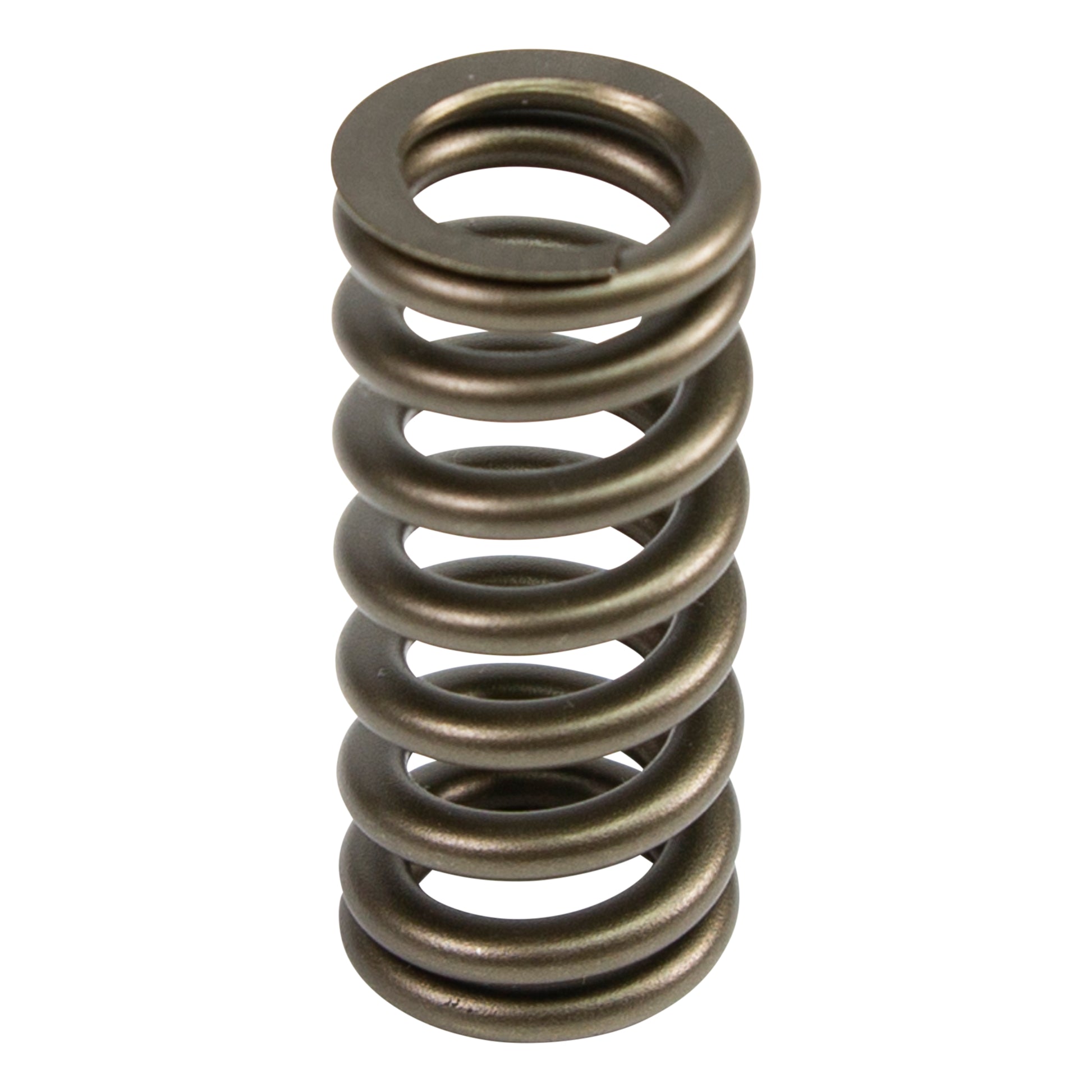

Valve Spring For Powerstroke 6.0/6.4

COMP Cams engineered the #26124 valve spring to have increased spring rate, as well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stresses, create additional dynamic control and help valve train reliability at elevated RPM and boost pressures. Springs are also available in sets of 32 (Part #26124-32) or as a kit with the valve Seals and shims (Part #26124-Kit) Vehicle Specific

• Ford Powerstroke 6.0/6.4

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584413448
• Bottom Inside Diameter: 0.647
• Bottom Outside Diameter: 1.01
• Coil Bind Height: 1.19
• Compatible Retainers: -
• Compatible Shims: 4809
• Compatible Spring Seat / Seals: P/N 535
• Damper: -
• Installed Height: 1.77
• Number of Springs: Single
• Open Load: 300@1.270
• Seat Pressure: 140
• Spring Rate: 320
• Spring Style: Straight
• Top Inside Diameter: 0.647
• Top Outside Diameter: 1.01

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 0.9 inches
• Weight: 0.3 POUNDS
