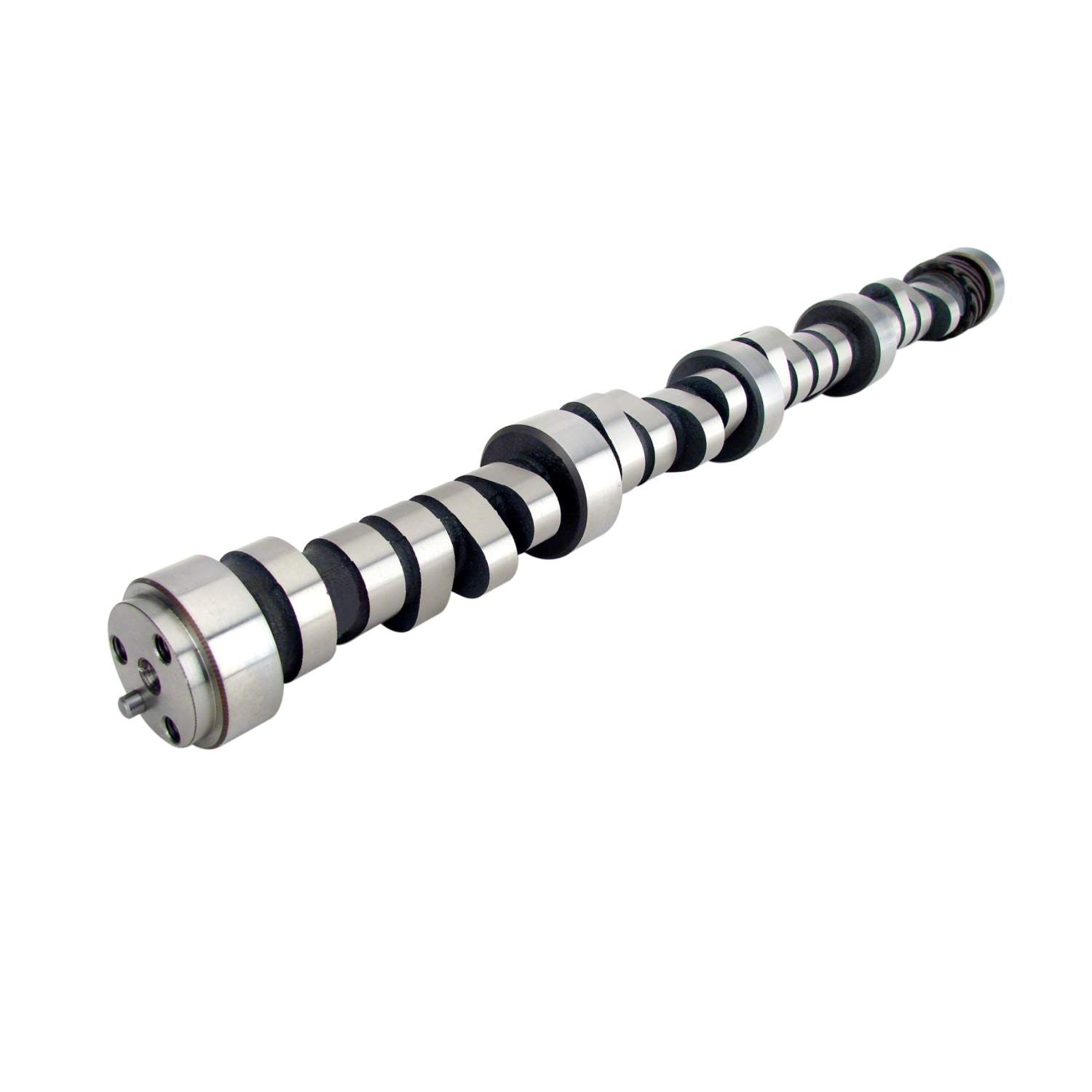

Tri-Power Xtreme 194/206 Hydraulic Roller Cam For Chevrolet Big Block GEN VI

Tri-Power Xtreme 194/206 Hydraulic Roller Cam Vehicle Specific

• 1996-1999 Chevrolet 454/502 GEN VI Big Block

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584127611
• Advertised Exhaust Duration: 258
• Advertised Intake Duration: 246
• Amazon ASIN: N/A
• Assembly Lubricant Included: No
• Basic Operating RPM Range: 600-4,600
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Roller
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Camshaft Series: Tri-Power Xtreme
• Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
• Exhaust Duration at .050 inch Lift: 206
• Exhaust Valve Lift: 0.493
• Grind Number: TPX246HR-16
• Intake Duration at .050 Inch Lift: 194
• Intake Valve Lift: 0.5
• Lifter Type: Hydraulic Roller
• Lifters Included: No
• Lobe Separation: 116
• Usage: Street/Performance
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.93 x 2.91 x 2.67 inches
• Weight: 11 POUNDS
