Tomei Full Titanium Muffler Kit Expreme Ti AE86 Type-R

Redefine the AE86

The 2 ultimate exhausts for every AE86 enthusiast.

Type R - Ultra lightweight under axle exhaust

• MATERIAL: Ti

• MAIN PIPE A DIAMETER: 2.38inch(60.5mm)

• MAIN PIPE THICKNESS: 1.0 mm

• SILENCER DIAMETER: 4inch(102.0mm) <Center silencer>

• SILENCER THICKNESS: 1.0mm

• EXIT DIAMETER: 3.5inch(89.1mm) R=4 curl

• EXIT THICKNESS: 1.0mm

• FLANGE THICKNESS: 8.0mm

• WEIGHT: 8.16lb (3.7kg)

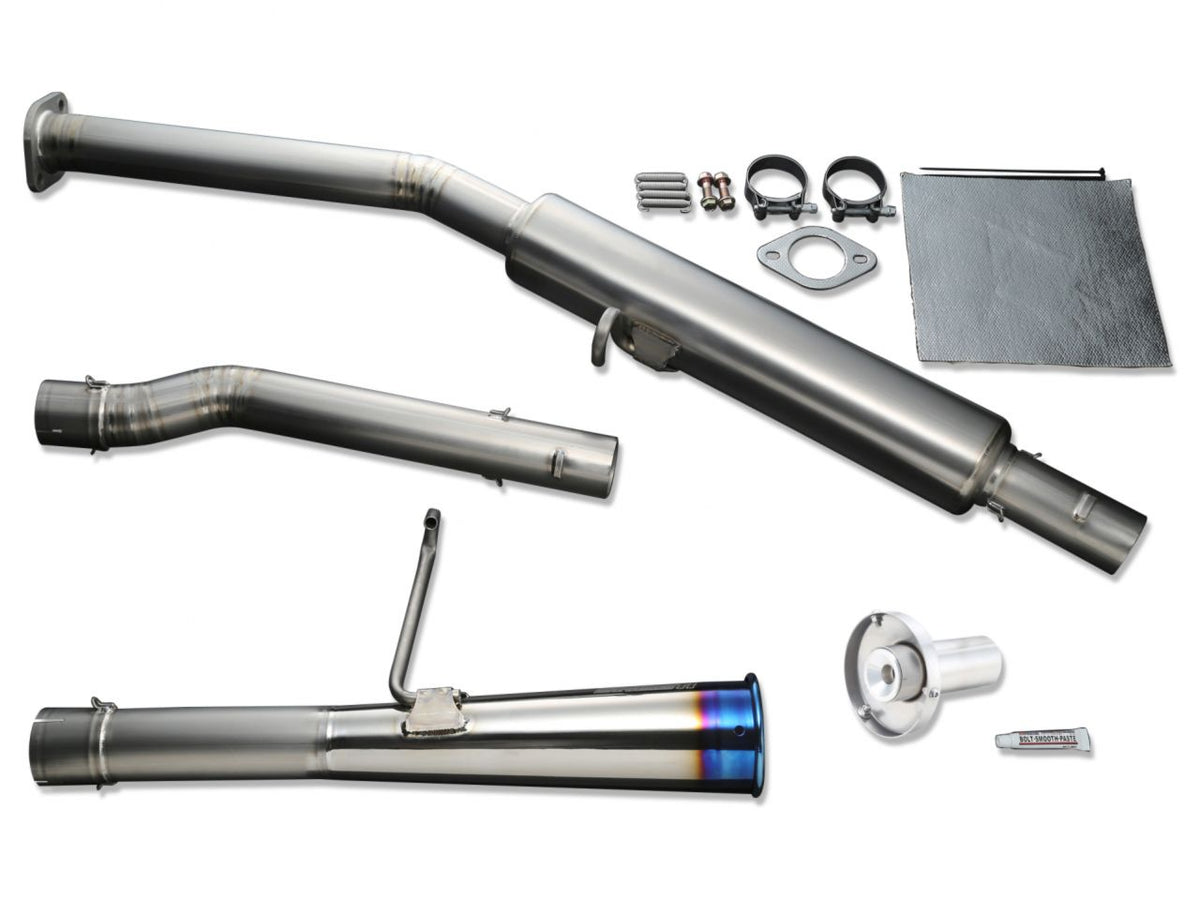

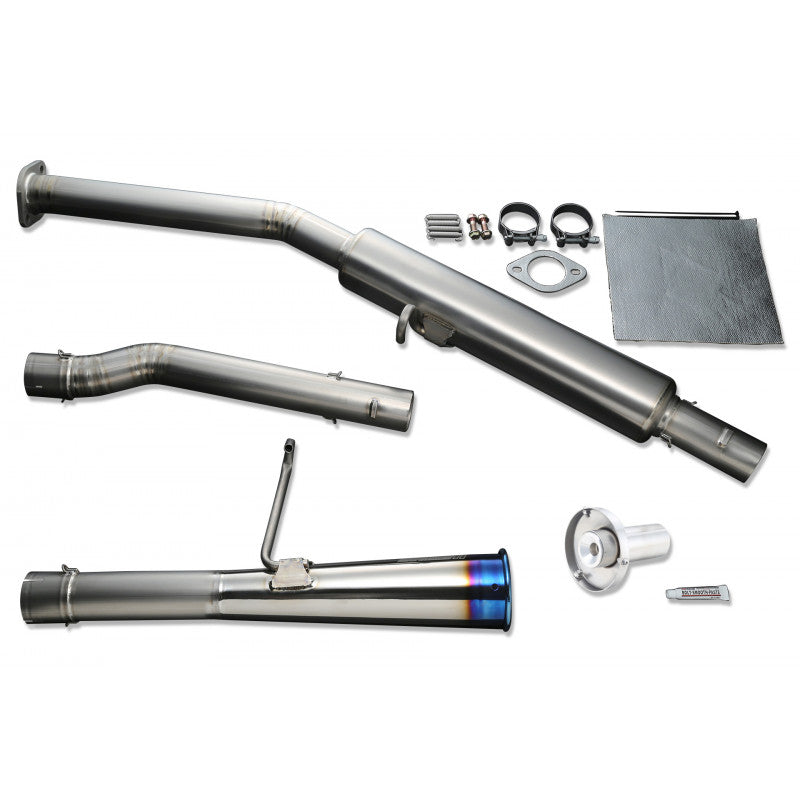

Kit Content

• MAIN PIPE A (1): SOUND REDUCER ver.2 (1)
• MAIN PIPE B (1): BOLT SMOOTH PASTE (1)
• GASKET Φ60 (1): TYPE-R only ?TAIL PIPE (1)
• FLANGE NUT M10 (2): ?SILENCER BAND (1)
• CLAMP BAND (2): ?SILENCER BAND RUBBER (1)
• SPRING (4): ?FLANGE BOLT M8 (1)
• THERMAL INSULATION SHEET (1): ?FLANGE NUT M8 (1)
• TIE WRAPS (2)
