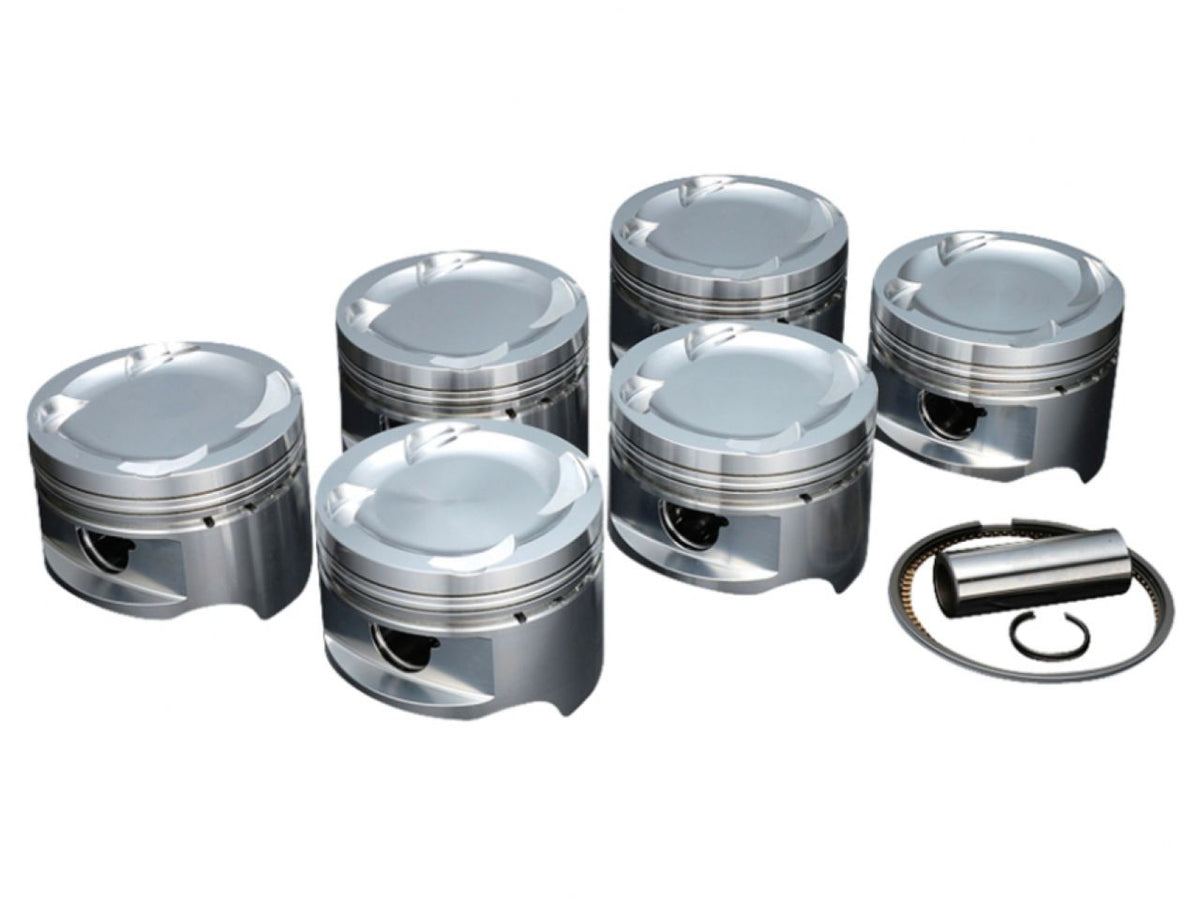

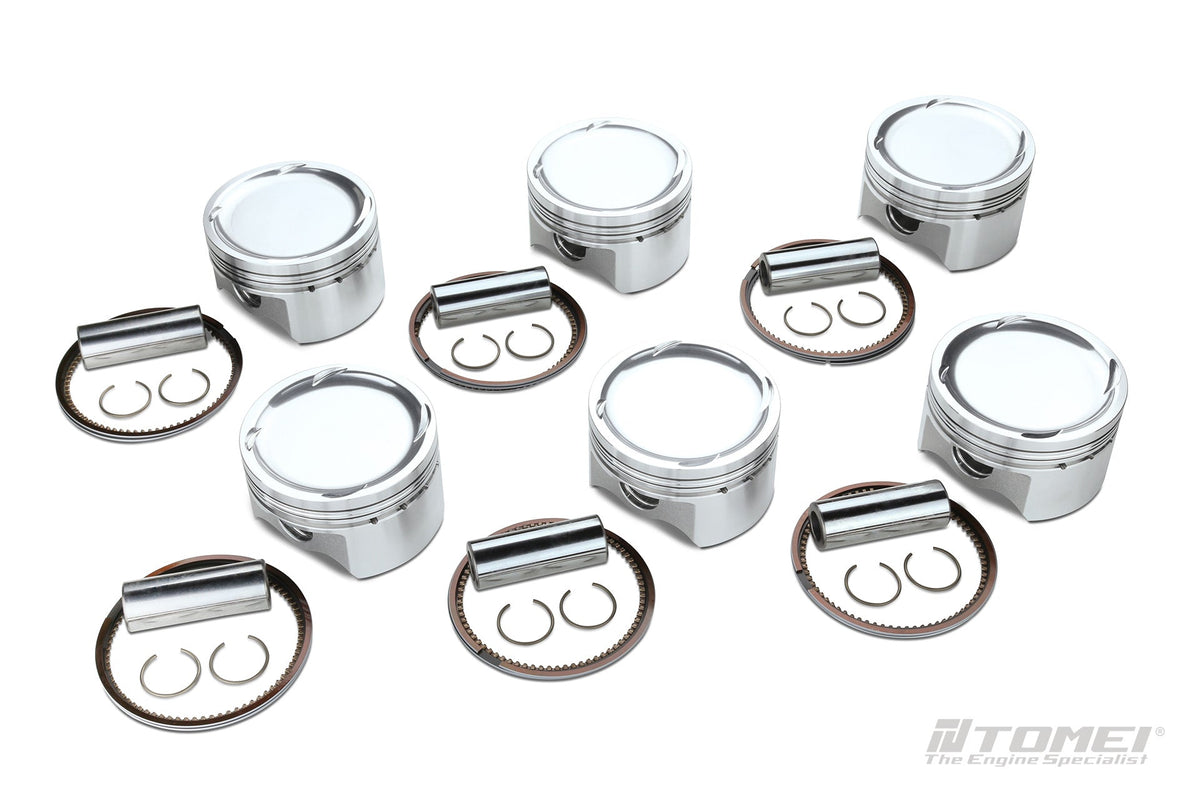

Tomei Forged Piston Kit 2JZ-GTE

Tomei Forged Piston Kit 2JZ-GTE

$1,620.00 USD
$1,800.00 USD $1,620.00 USD
Sale Sold out
Shipping calculated at checkout.

Forged Piston Kit 2JZ-GTE

Category: Cylinder Block Piston



Category  Parts Number
87.00mm CH30.00 (3.4) TA202A-TY03A
87.00mm CH30.00 (3.4) CP TA202A-TY03AP
87.00mm CH29.50 (3.6) TA202A-TY03B
87.00mm CH29.50 (3.6) CP TA202A-TY03BP





Part Number TA202A-TY03A TA202A-TY03B TA202A-TY03AP TA202A-TY03BP
BORE (mm)  87.00 (OEM +1.0)
 87.00 (OEM +1.0)
 87.00 (OEM +1.0)
 87.00 (OEM +1.0)
PIN DIA. (mm)  22 22 22 22
PIN LENGTH (mm)  60 60 64 64
CLIP INNNER DIA.  22 22 22 22
VALVE RECESS  WITH WITH WITH WITH
COMP.HEIGHT (mm)  30.00 (OEM -4.0) 29.50 (OEM -4.5) 30.00 (OEM -4.0) 29.50 (OEM -4.5)
PISTON DOME VOL. (cc)  -17.5 -22.6 -17.7 -22.6
PISTON WEIGHT (g)  299.6 278.5 326 319
PIN WEIGHT (g)  121.5 121.5 133 133
TOTAL WEIGHT (g)  421.1 400 459 452
TOP RING (mm)  1.20 x 3.05 1.20 x 3.05 1.20 x 2.9 1.20 x 2.9
SECOND RING (mm)  1.20 x 3.90 1.20 x 3.90 1.20 x 3.0 1.20 x 3.0
OIL RING (mm)  2.50 x 2.95 2.50 x 2.95 2.0 x 2.7 2.0 x 2.7
MATERIAL A4032 A4032 A2618 A2618



Product features
