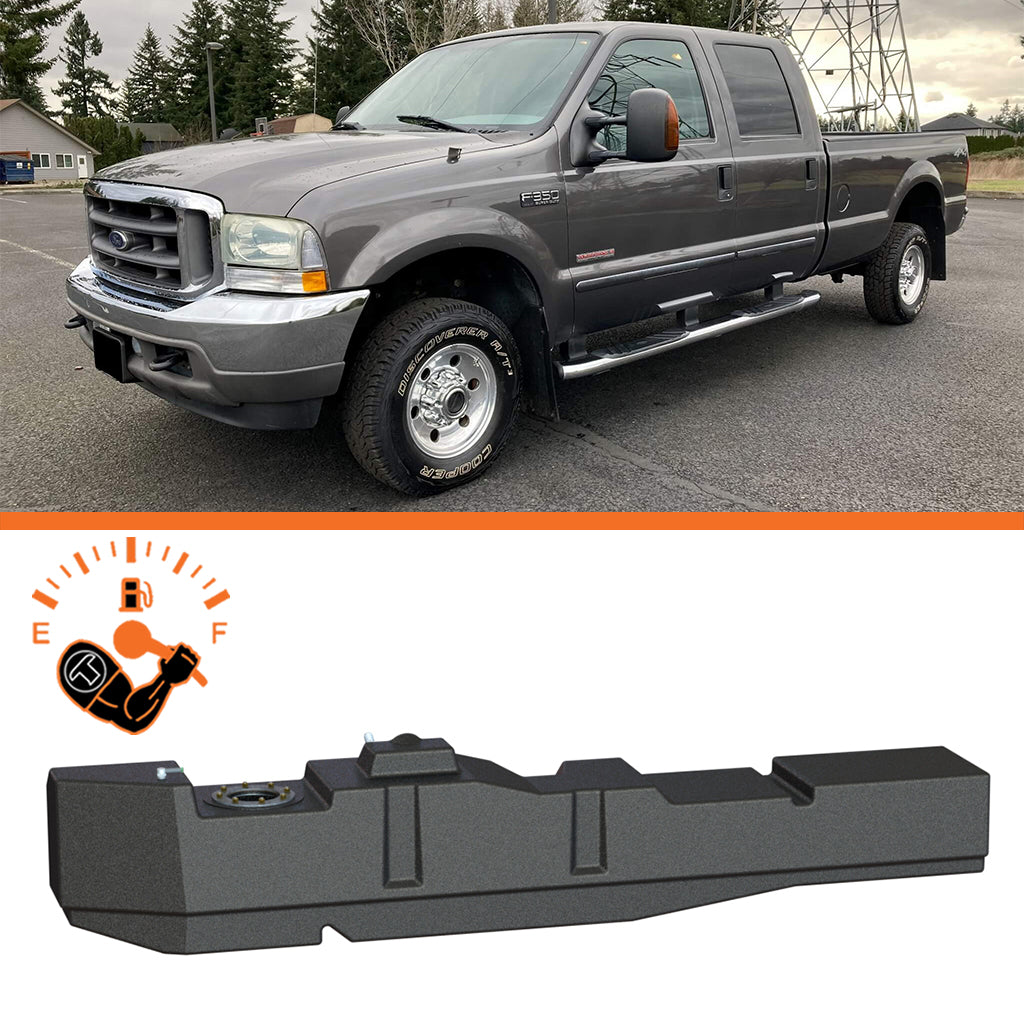

Titan Fuel Tanks Extra Large Midship Tank - 7020399

The Titan XXL tank also features minimal hang down below the bottom of the stock tank (approximately only 1.5" lower than stock tank shield bracket).Installation is a breeze - no fabrication or cutting required. This tank is a direct fit, bolt-in application, making it the perfect upgrade for your Ford F250 or F350 pickup. Application For model year: 1999-2007. For F250 and F350 (single and dual rear wheel) models with the Power Stroke engine & 8ft bed. Note: For use with diesel fuel ONLY. Additional Details. The TITAN tank is 29 gallons larger at 67 gallons. The stock tank is only 38 gallons. Tank includes a heavy-gauge steel nose skid plate. This plate protects the transmission and transfer case of the vehicle as well as supports and secures the large tank in place. Will not interfere with powered steps, air bag systems and most other accessories. Our mid-ship, direct replacement fuel tanks are designed to use your trucks' stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. This tank does NOT fit cab & chassis models.

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion, and Easy to Install
• Compatible with most bio-diesel fuel
• Exclusive TITAN Sending Unit Mounting System

Vehicle Specific

• 1999-2007 FORD F250 F350 & F450(Crew Cab-Long Bed)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135000300
• California Restriction: No
• Increased Capacity (US Gallons): 31
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Position: N/A
• Sales in Canada: Yes
• Stock Tank Capacity (US Gallons): 36
• TITAN Tank Capacity (US Gallons): 67
• Truck Freight: Yes
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 22 x 101 x 16 inches
• Weight: 108 POUNDS
