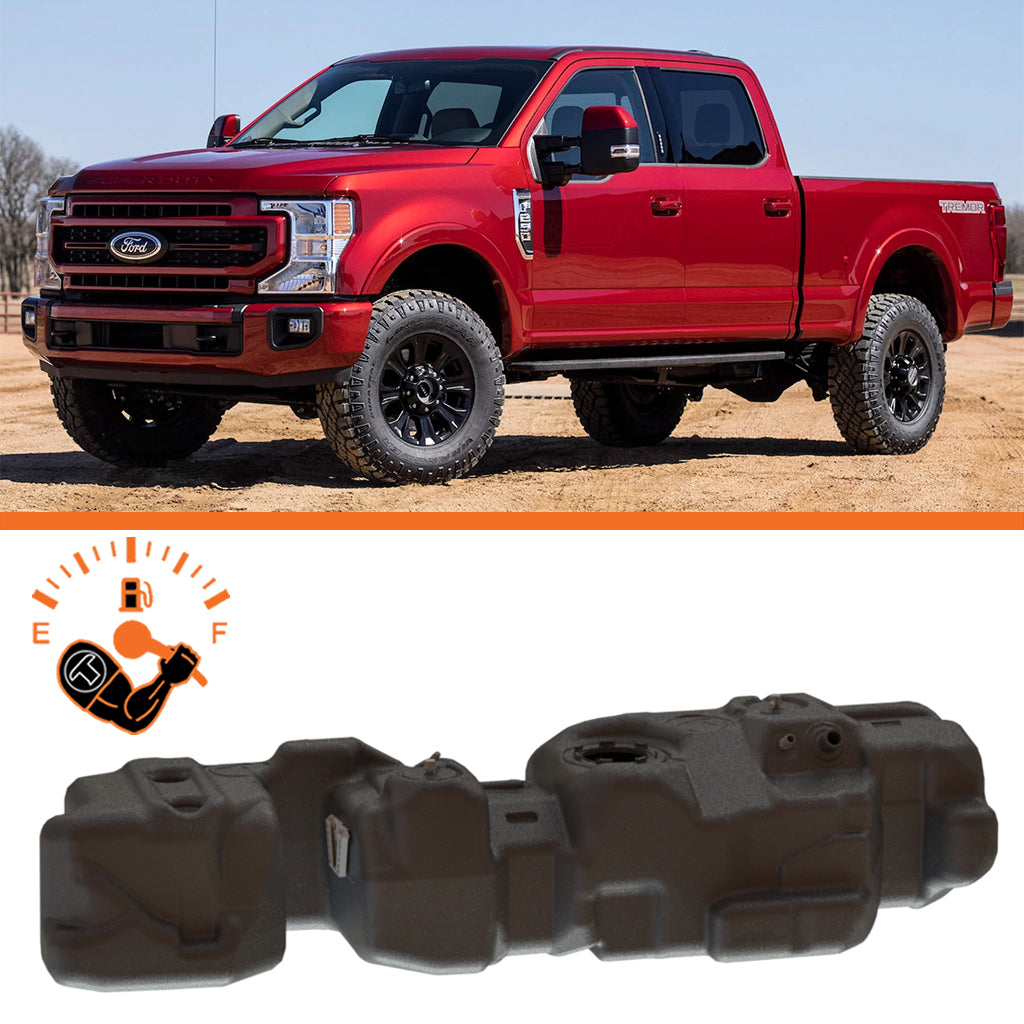

Titan Fuel Tanks Extra Large Midship Tank - 7020217

We could advertise a larger capacity, but we chose to only market usable capacity to set honest and reasonable expectations for our customers. The Titan XXL tank also features minimal hang down below the bottom of the stock tank (approximately only 1 3/4" below factory skid plate).Installation is a breeze - no fabrication or cutting required. This tank is a direct fit, bolt-in application, making it the perfect upgrade for your Ford F250 or F350 pickup. Application For model year: 2017-2026.For F250 HD and F350 HD models with the Power Stroke engine. Note: For use with diesel fuel ONLY! Additional Details. The TITAN tank is 21 gallons larger at 55 gallons. The stock tank is only 34 gallons. Will not interfere with powered steps, air bag systems and most other accessories. Our mid-ship, direct replacement fuel tanks are designed to use your trucks stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. This tank does NOT fit cab & chassis models. It is ONLY for use on trucks with traditional pick-up truck short beds.

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion, and Easy to Install
• Compatible with most bio-diesel fuel
• OEM style torque ring Sending Unit Mounting System

Vehicle Specific

• 2017-2026 FORD F250 & F350(Crew Cab-Short Bed)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135001437
• California Restriction: No
• Increased Capacity (US Gallons): 21
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Position: N/A
• Sales in Canada: Yes
• Stock Tank Capacity (US Gallons): 34
• TITAN Tank Capacity (US Gallons): 55
• Truck Freight: No
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 21 x 77 x 19 inches
• Weight: 65 POUNDS
