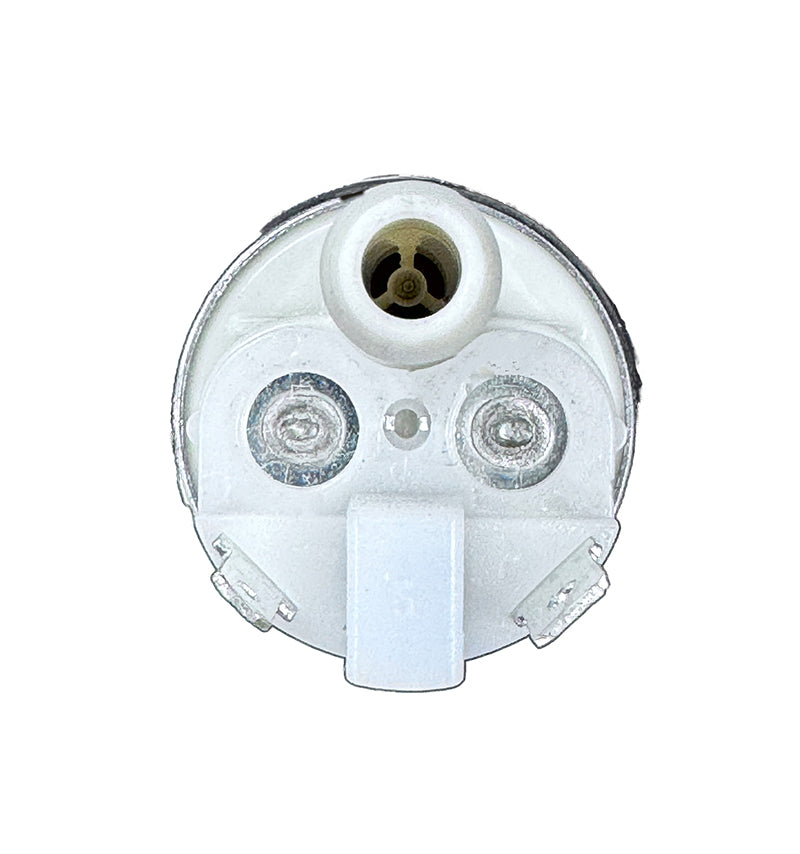

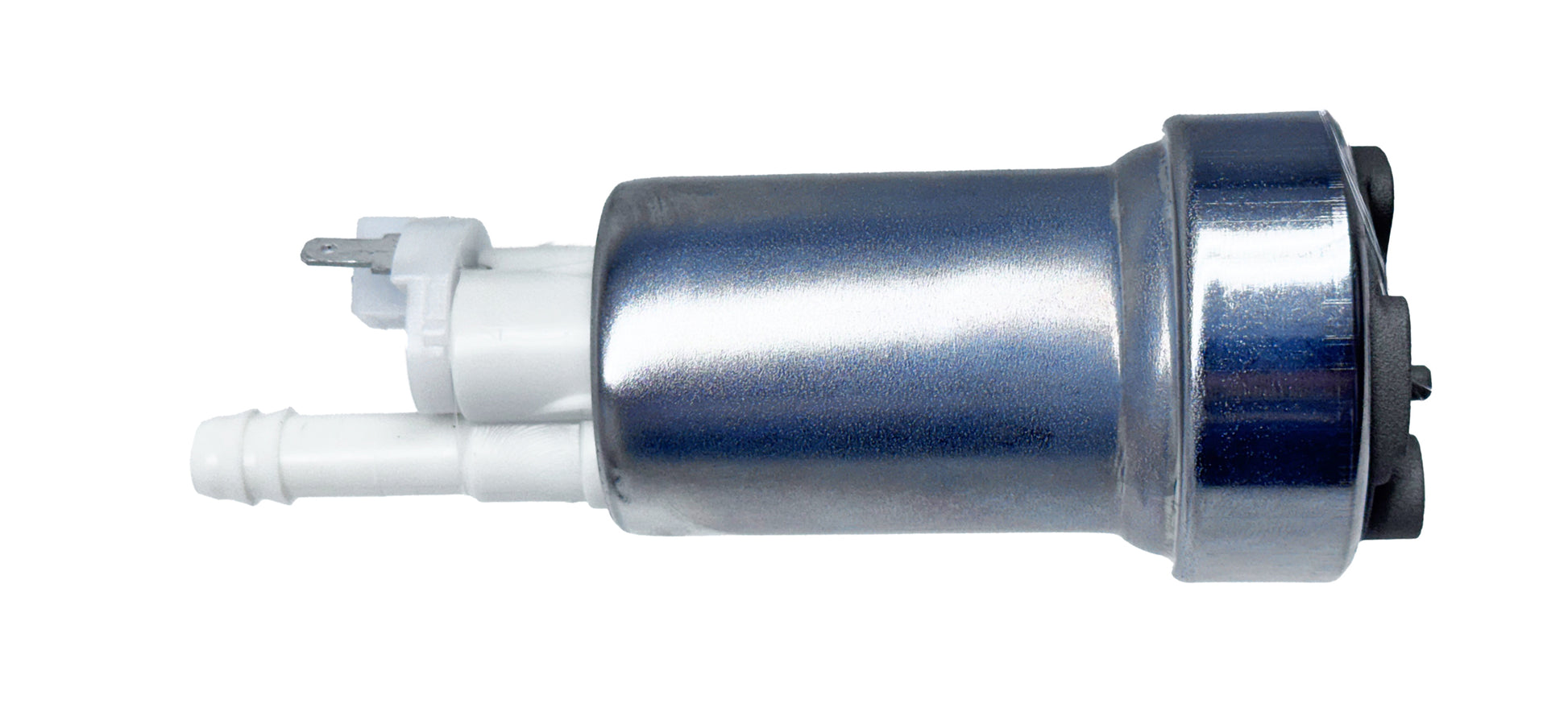

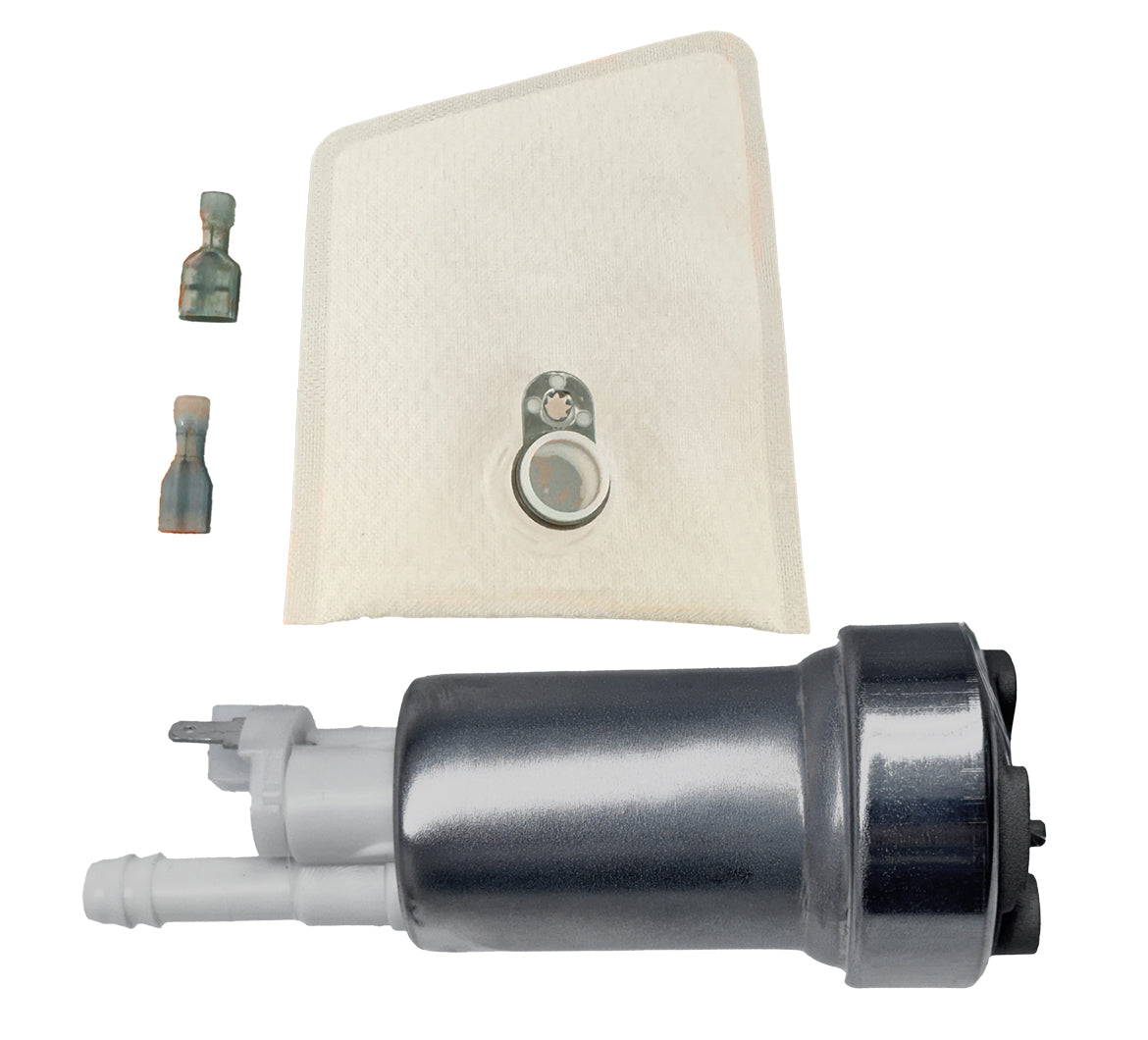

TI Automotive Universal High Performance In-tank Fuel Pump With Installation Kit

TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel pumps, fuel pump kits, module assemblies, filters and accessories deliver the feed you need for the power you demand. These products deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. TI Automotive fuel pumps are available for in-tank or in-line needs across a variety of fuels featuring the award winning 39/50 in-tank pump and the GSS line featuring the popular 255LPH pump. They deliver high-pressure, high flow performance for engines with more than 500hp. Pump kits, filters and accessories are available to help you with your installation needs and are designed as direct-fit replacements. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotive?s Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

• In-tank pump & kit fits most popular EFI applications
• TI 39/50 mm pump can be easily installed on many existing hangars
• Pump contains check valve, for High Performance EFI engines
• Pump UAW manufactured in Caro, MI USA

Attributes:

• Brand Name: TI Automotive
• GTIN: 00086235532967
• Electrical Connector Value: Blades
• Engine Horsepower Value: 850
• Fuel Delivery Type: Fuel Injection
• Fuel Sending Unit Included: No
• Fuel Type: Gas
• Grade Type: Performance
• Harmonized Tariff Code: 8413301000
• Inlet To Outlet Orientation Value: 0
• Inlet Type: Standard Offset Hub
• Installation Instructions Included: Yes
• Internal Or External: In Tank
• Length: 130.7
• Maximum Amperage Draw: 23
• Maximum Pressure: 87
• Minimum Flow Rating: 115
• Mounting Bracket Included: No
• Mounting Hardware Included: No
• Nafta Code: B
• Operating Pressure UOM: PS
• Operating Pressure Value: 40
• Outlet Outside Diameter: 8.7313
• Outlet Type: Dual Barb
• Pump Design: 39/50
• Strainer Included: Yes
• Universal Or Specific Fit: Universal
• Voltage: 13.5
• Wiring Harness Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.625 x 5.1875 x 1.8125 inches
• Weight: 1.7 POUNDS
