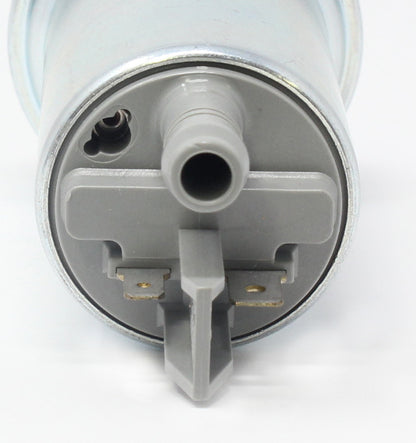

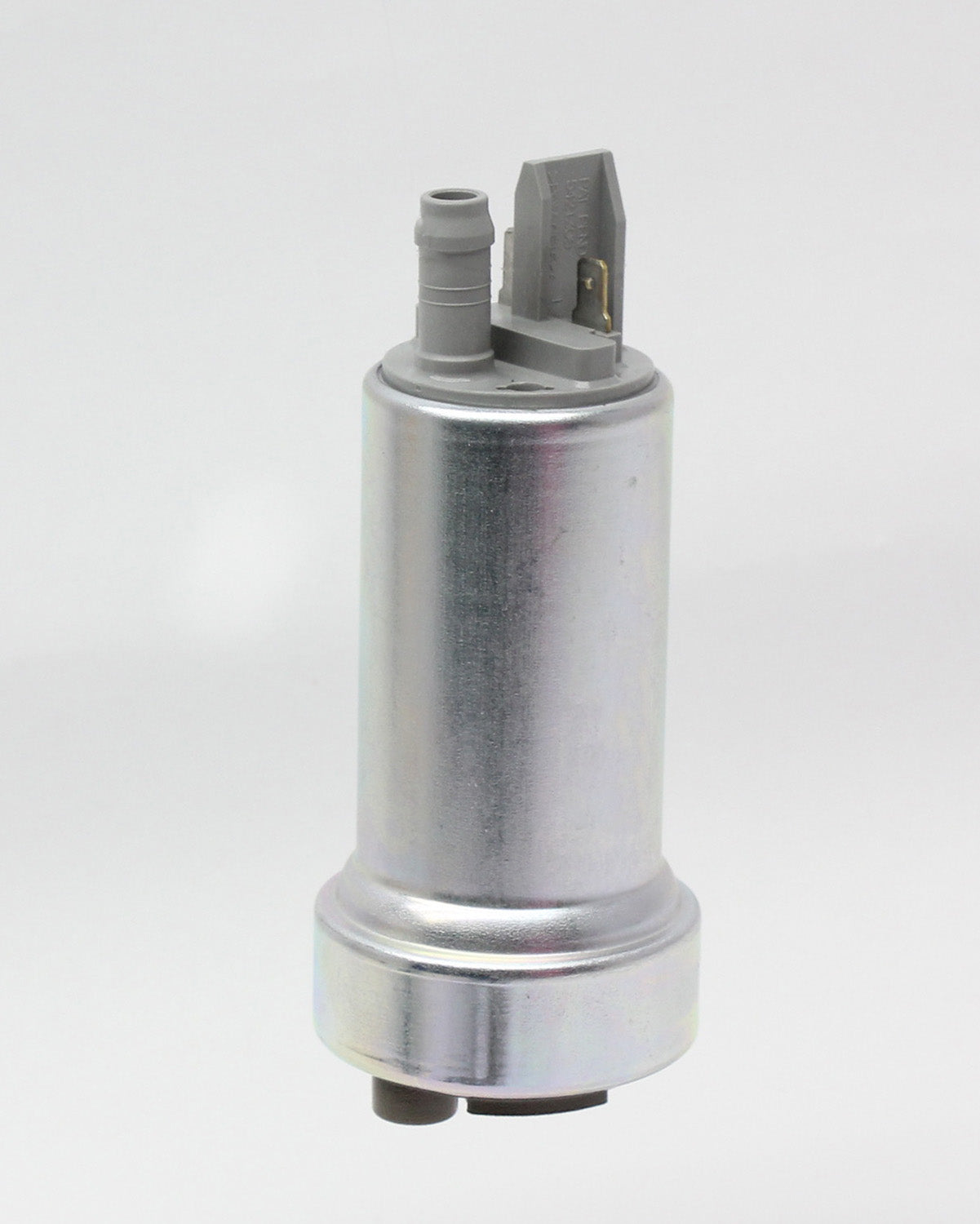

TI Automotive High Performance 350lph; 600hp; Gas; Pump Only

TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel pumps, fuel pump kits, module assemblies, filters and accessories deliver the feed you need for the power you demand. These products deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. TI Automotive fuel pumps are available for in-tank or in-line needs across a variety of fuels featuring the award winning 39/50 in-tank pump and the GSS line featuring the popular 255LPH pump. They deliver high-pressure, high flow performance for engines with more than 500hp. Pump kits, filters and accessories are available to help you with your installation needs and are designed as direct-fit replacements. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotive?s Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

• Designed for in-tank use only
• Fuel pump contains check valve
• Pump UAW manufactured in Caro, MI USA

Attributes:

• Brand Name: TI Automotive
• GTIN: 00086235535012
• Engine Horsepower Value: 600
• Fuel Delivery Type: Fuel Injection
• Fuel Sending Unit Included: No
• Fuel Type: Gas
• Gasket Or Seal Included: No
• Grade Type: Performance
• Harmonized Tariff Code: 8413301000
• Inlet Type: Standard offset hub
• Installation Instructions Included: Yes
• Internal Or External: Internal
• Length: 121.1
• Maximum Amperage Draw: 14.5
• Maximum Pressure: 87
• Minimum Flow Rating: 123
• Mounting Bracket Included: No
• Mounting Hardware Included: Yes
• Nafta Code: B
• Operating Pressure UOM: PS
• Operating Pressure Value: 40
• Outlet Outside Diameter: 8.7313
• Outlet Type: Single Barbed
• Pump Design: Turbine pump with 39MM top / 50MM bottom outside diameter
• Strainer Included: Yes
• Universal Or Specific Fit: Universal
• Voltage: 12
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.375 x 4.1875 x 4.25 inches
• Weight: 1.5 POUNDS
