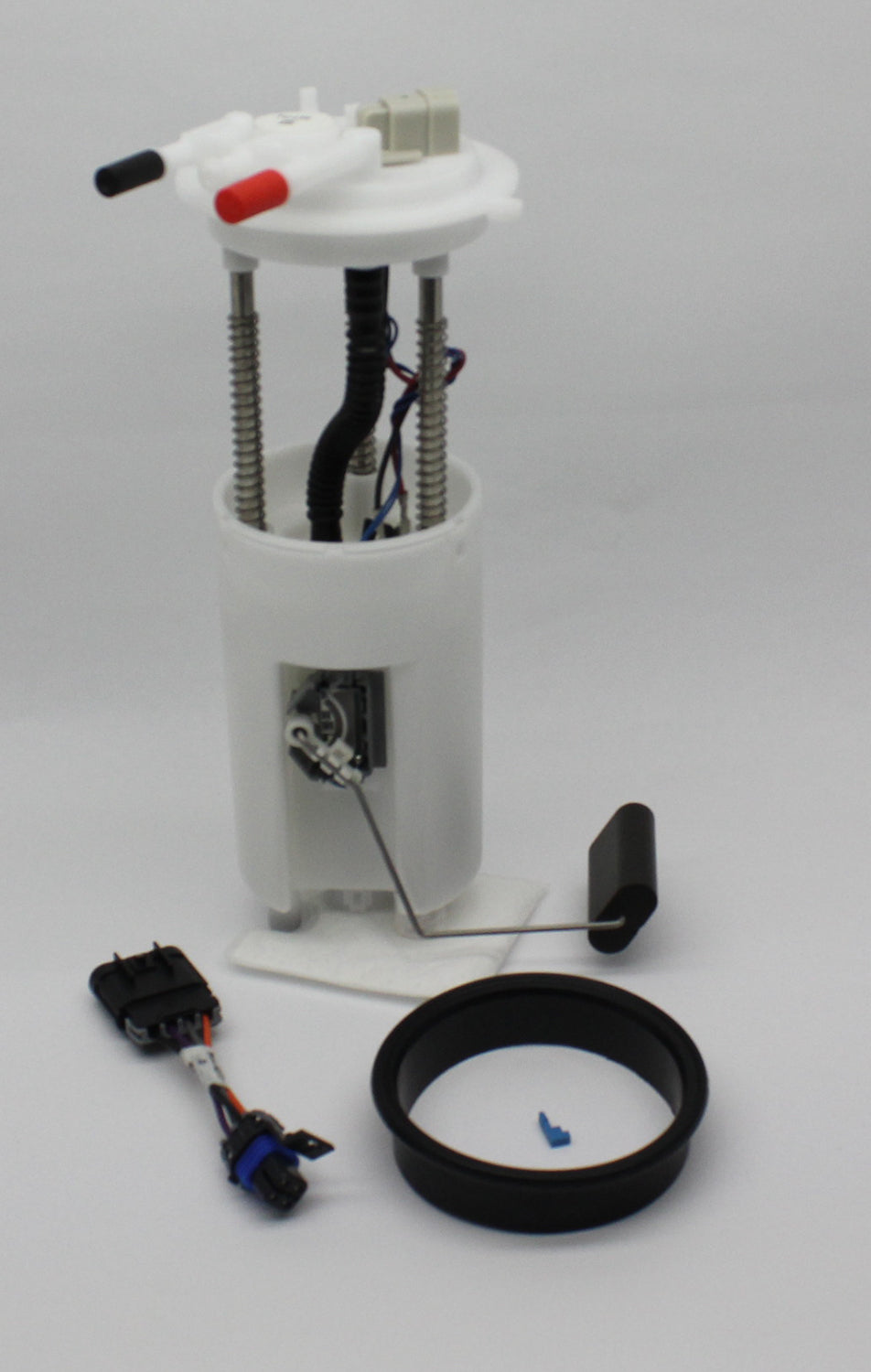

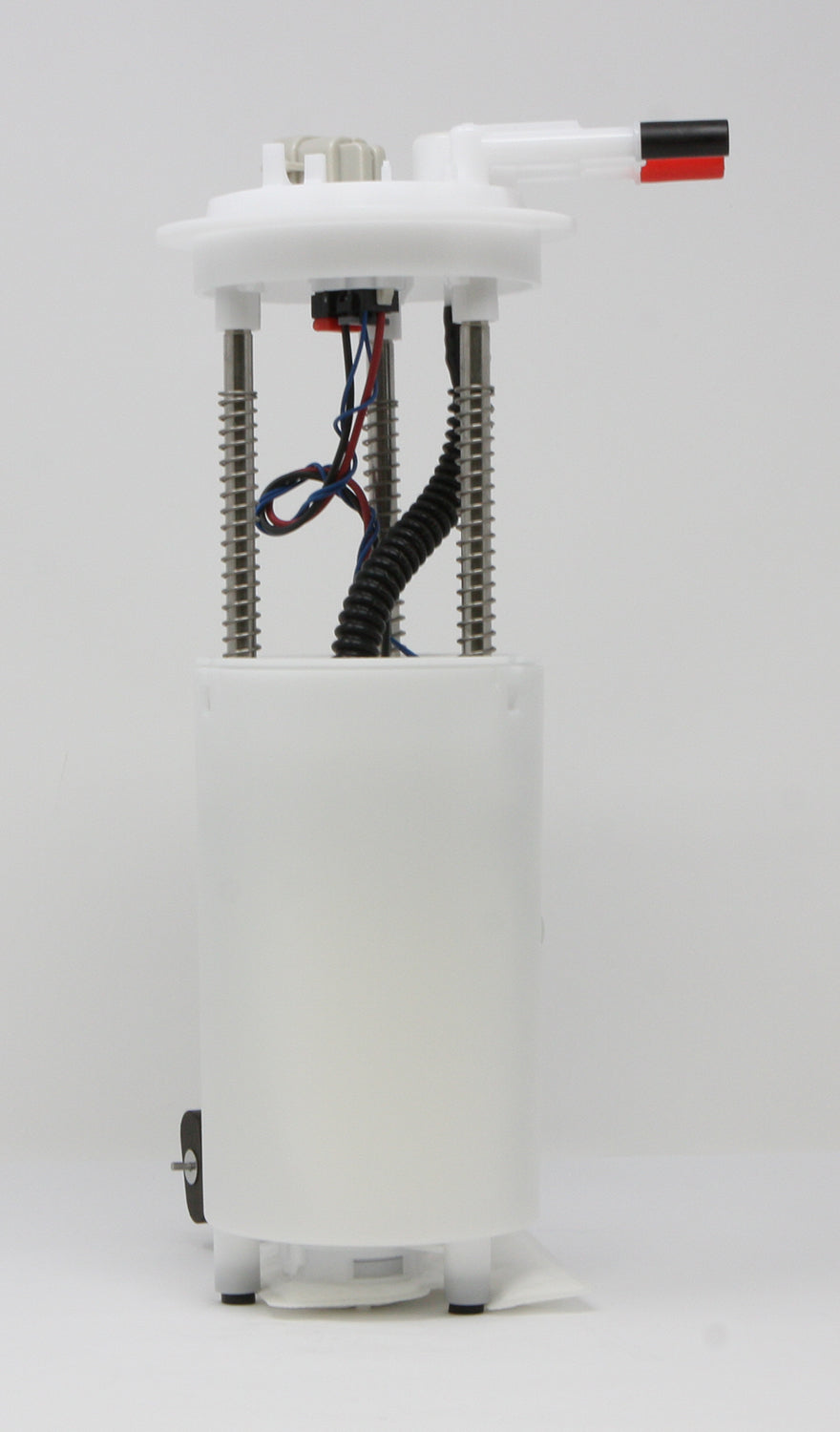

TI Automotive High Performance 255lph; 550hp; Gas; Fuel Module

TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel modules deliver the feed you need for the power you demand. These modules deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. Complete drop-in module assemblies with a high performance fuel pump with filtration, level-sensing and storage. Featuring OE-like fit similar to a traditional replacement module but with high performance flow. Modules designed for use in a wide variety of vehicles ? from sports cars to pick-ups. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotive?s Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

• Complete fuel pump module assy includes level sender & float arm
• Drop in installation designed for in-tank use only
• Pump UAW manufactured in Caro, MI USA

Attributes:

• Brand Name: TI Automotive
• GTIN: 00086235543017
• Average Current Draw: 10
• Average Flow Rating: 66
• Engine Horsepower Value: 550+
• Fuel Filter Included: No
• Fuel Sending Unit Included: Yes
• Fuel Tank Pressure Sensor Included: Yes
• Fuel Type: Gas
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Harmonized Tariff Code: 8413301000
• Height: 330.0
• In Tank or External: In Tank
• Installation Instructions Included: Yes
• Installation Warnings: Yes
• Internal Or External Strainer: External
• Lock Ring Included: No
• Maximum Pressure: 120
• Minimum Flow Rating: 67.4
• Mounting Hardware Included: No
• Nafta Code: B
• Operating Pressure UOM: PS
• Operating Pressure Value: 50
• Outlet Outside Diameter: 9.525
• Outlet Type: SAE Quick Connect
• Pump Design: Gear pump
• Pump Type: Electric
• Regulator Included: No
• Resistance Ohms Empty: 40
• Resistance Ohms Full: 250
• Strainer Included: Yes
• Top Mount Diameter: 93.8
• Universal Or Specific Fit: Specific
• Voltage: 13.5
• Wire Harness Included: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15.5 x 6.5 x 6.5 inches
• Weight: 2.14 POUNDS
