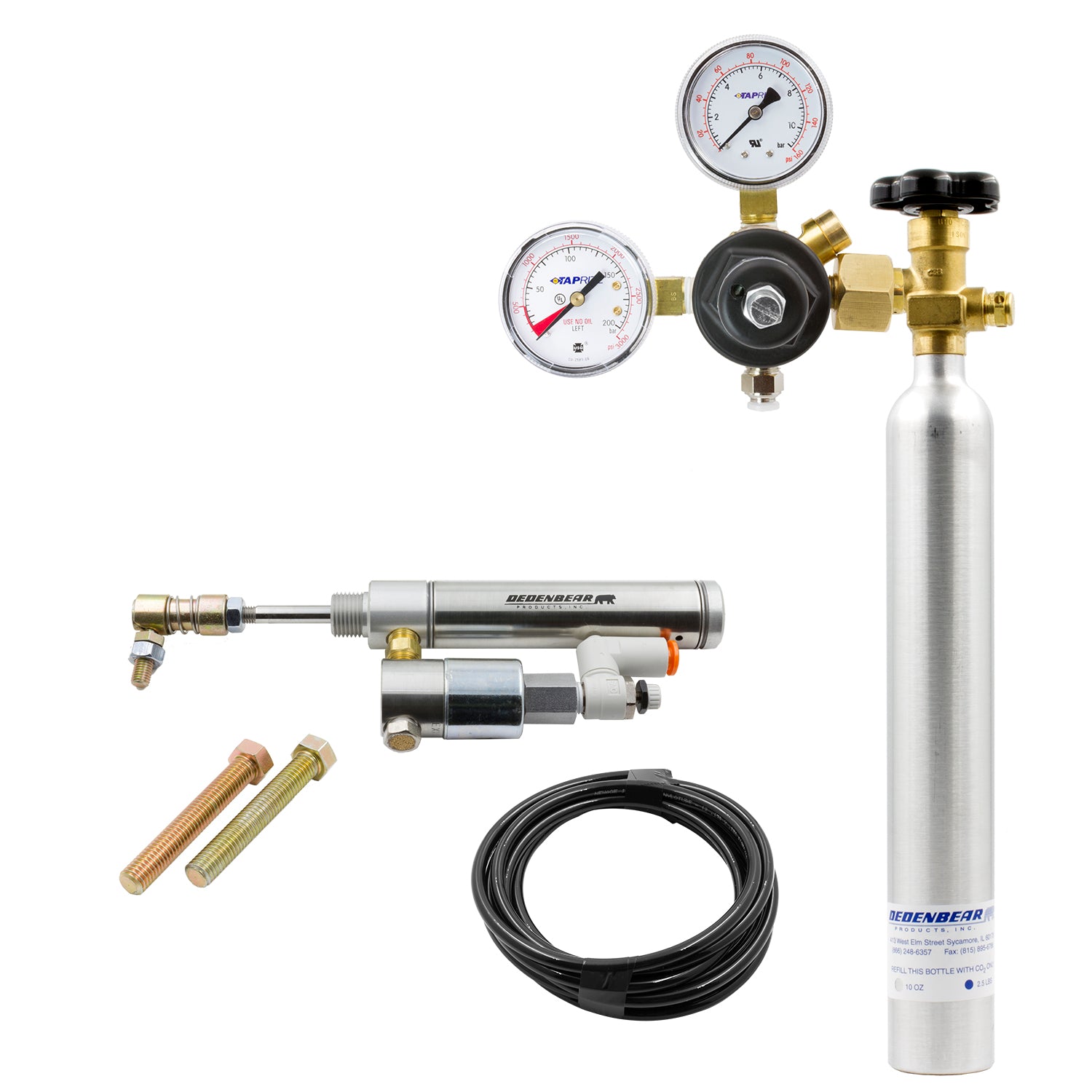

THROTTLE STOP KIT LINKAGE STYLE CO2 LONG STROKE BIG BORE INCLUDES AB10K BTL KIT

The Dedenbear Ts20K Combines The Heavy Duty Ts20 Stop Together With The Ab10K Co2 Bottle Kit In One Tidy Package To Ensure Youve Got What You Need To Install And Operate The Stop In Your Vehicle. The 7/8 Inch Bore And 2.5 Inch Stroke Used In This Stop Offer Superior Starting Line Control, Compatibility With Dual Carburetor Setups, And Bird Catcher Style Injectors. Chromoly Adjustment Bolts Ensure Maximum Durability. All Dedenbear Linkage Style Throttle Stops Come With A Needle Valve To Control The Opening Rate Of The Stop, Quick Disconnect Fittings, Stainless Steel Solenoid & Cylinder, High Temperature Seals And Plated Steel Parts For Corrosion Resistance.

• Linkage Stop: 7/8 in. bore, 2.5 in. Stroke.
• Adjustable needle valve allows precise and quick control of the opening rate of the stop.
• Adapters for 10-32 and 1/4-28 threaded throttle cables and linkages included as standard.
• 1/4 in. Quick Disconnect CO2 fitting

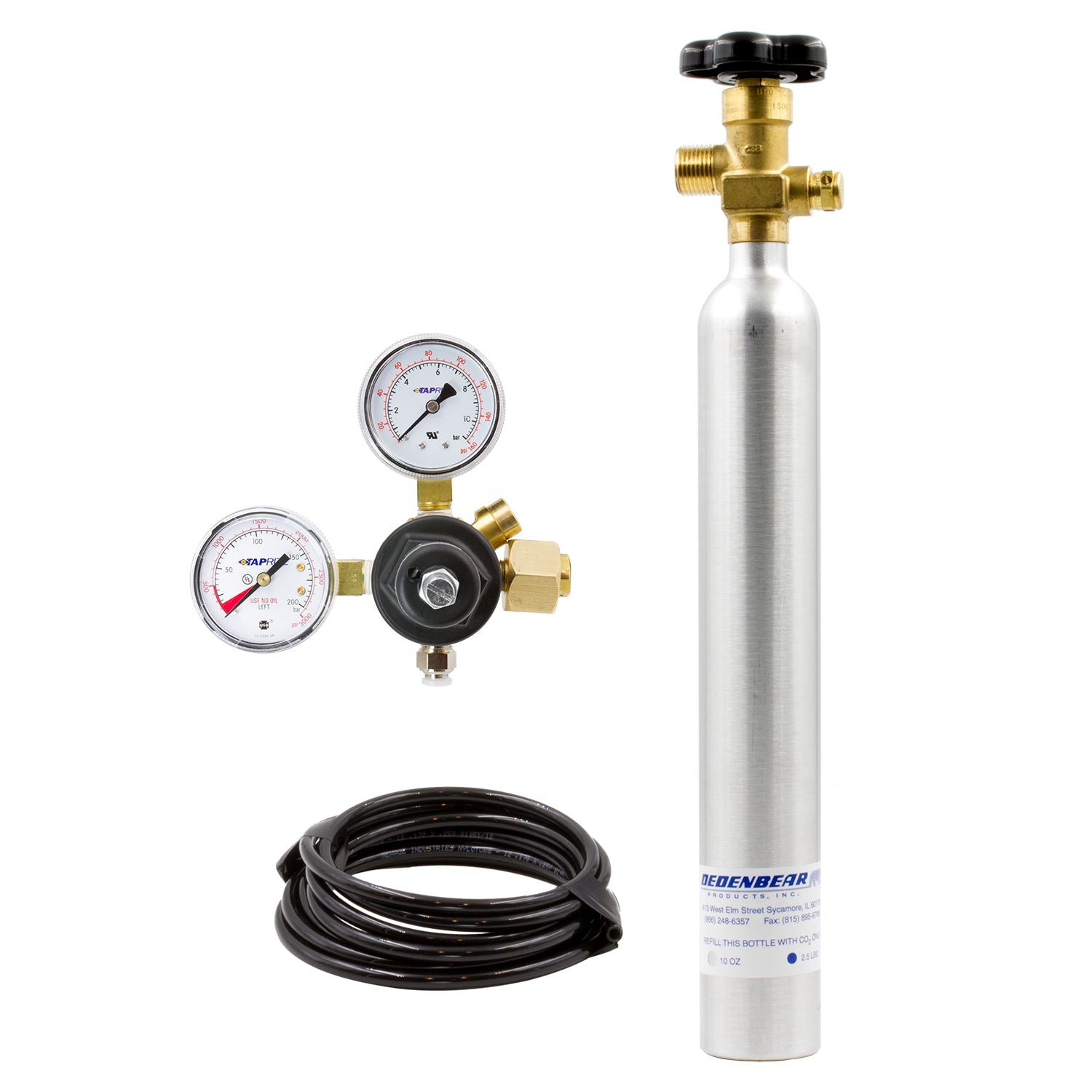

• Includes 10 oz. CO2 bottle, valve, dual gauge adjustable pressure regulator, and 10 feet of 1/4 inch nylon air line.
• Bottle measures 16.5 inches tall and 2 inches in diameter.

Attributes:

• Brand Name: Dedenbear
• GTIN: 00046074165177
• Add-On: L1;L2;CC3;TSC2A;TS25K;TS30K;TS40K;2163;BEX-5000;2159;2172;2183

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 15.25 x 5 inches
• Weight: 9 POUNDS
