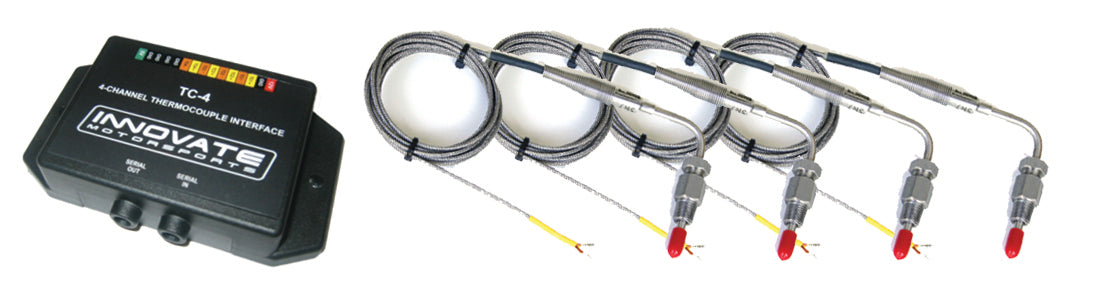

TC-4 PLUS Bundle With (4) EGT Probes

The TC-4 PLUS is 4 channel type-K thermocouple amplifier device that can be used a stand-alone system or as part of a MTS (Modular Tuning System). The TC-4 PLUS includes a digital input/output, 4 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, or standalone ECUs. This bundle kit also includes qty. 4 Type K thermocouples and associated mounting hardware.

• The TC-4 PLUS includes the TC-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual.
• K-Type thermocouple amplifier that adds 4 temperature inputs to an MTS Log Chain
• Temperature range 32-1999 deg F, 0- 1093 deg C
• 4-Configurable linear 0-5V analog outputs (one per input)
• The TC-4 PLUS can be used to measure other temperature metrics such as intercooler inlet, outlet temperature and catalytic converter
• Includes 4 Type K Thermocouples and mounting hardware.

Attributes:

• Brand Name: Innovate Motorsports
• GTIN:
• Add-On: 3877
• Included Wire Harness: 3840, 3846
• Includes Sensor Unit: 3850
• Related Item: 77020

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
