Supercharger #152840 For 2018-2020 Jeep Wrangler JL And Gladiator JT W/O Tune

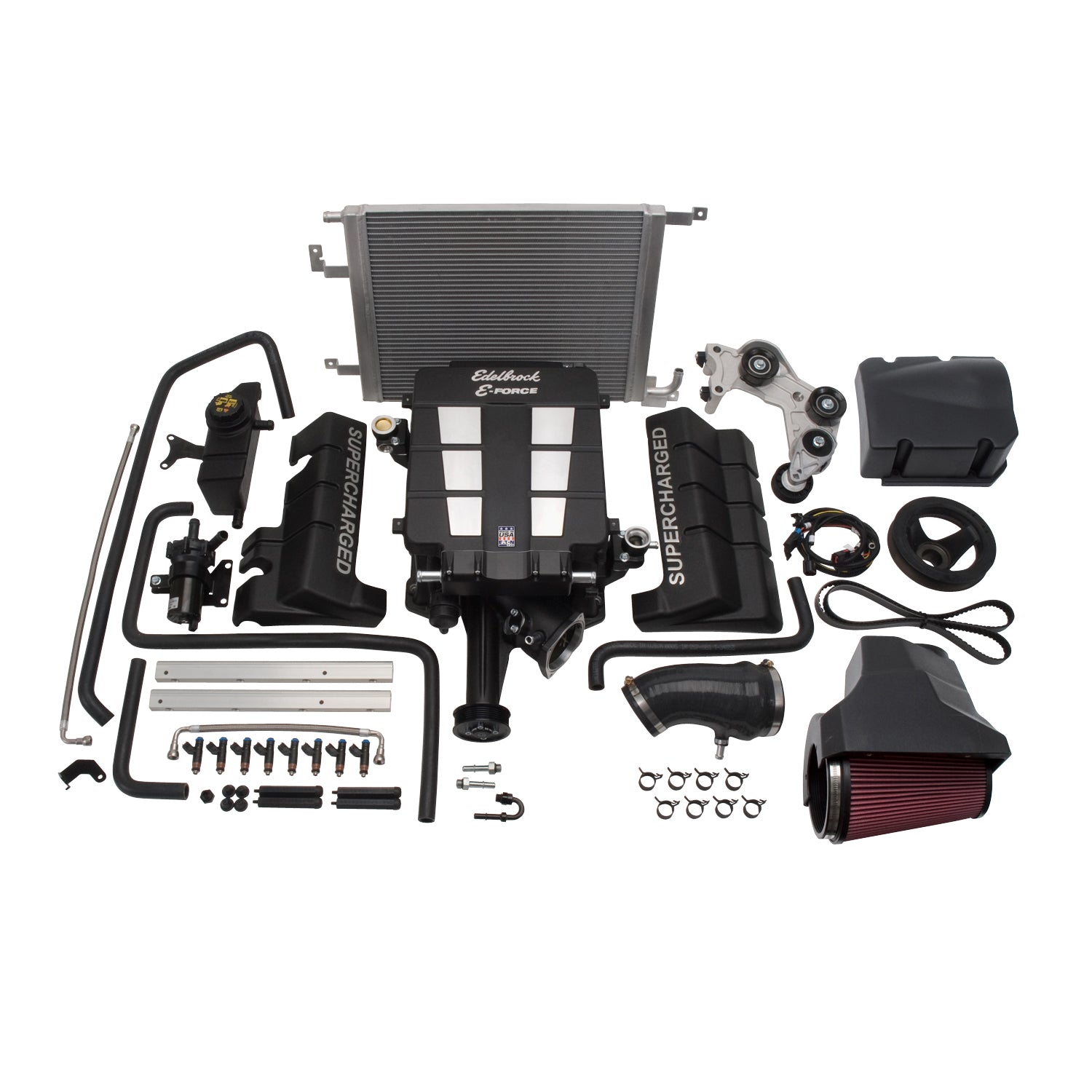

The Edelbrock Supercharger System part #15300 delivers excellent horsepower and torque for your 2006-08 5.7L HEMI Chrysler 300, Dodge Charger or Dodge Magnum. The part #15300 allows you to take our Stage 1 supercharger and get the custom tune you desire. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. This unit is NOT supplied with a Programmer. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Vehicle Specific

• Chrysler:Gen III HEMI:345 (5.7L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347153008
• 9040: D-215-89
• Air Filter Included: Yes
• Calibration: No
• Center Housing Cooling Type: Intercooler
• Finish: Black Powder Coated
• Fuel Injector Type: 46
• Gasket Or Seal Included: Yes
• Harmonic Balancer Diameter: 7.5
• Hose Included: Yes
• Housing Material: Cast Aluminum
• Internal Step Up: Yes
• Mounting Bracket Included: Yes
• Mounting Hardware Included: Yes
• Oil Capacity: 150
• Outside Pulley Diameter: 3.875
• Pulley Belt Width: 6-Rib
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rotor Type: Eaton TVS 2300
• System Type: Stage 1 - Street System
• Tensioner Included: Yes
• Universal Or Specific Fit: Specific
• Vehicle Model: Charger

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 44 x 44 x 32 inches
• Weight: 196 POUNDS
