Supercharger #152840 For 2018-2020 Jeep Wrangler JL And Gladiator JT W/O Tune

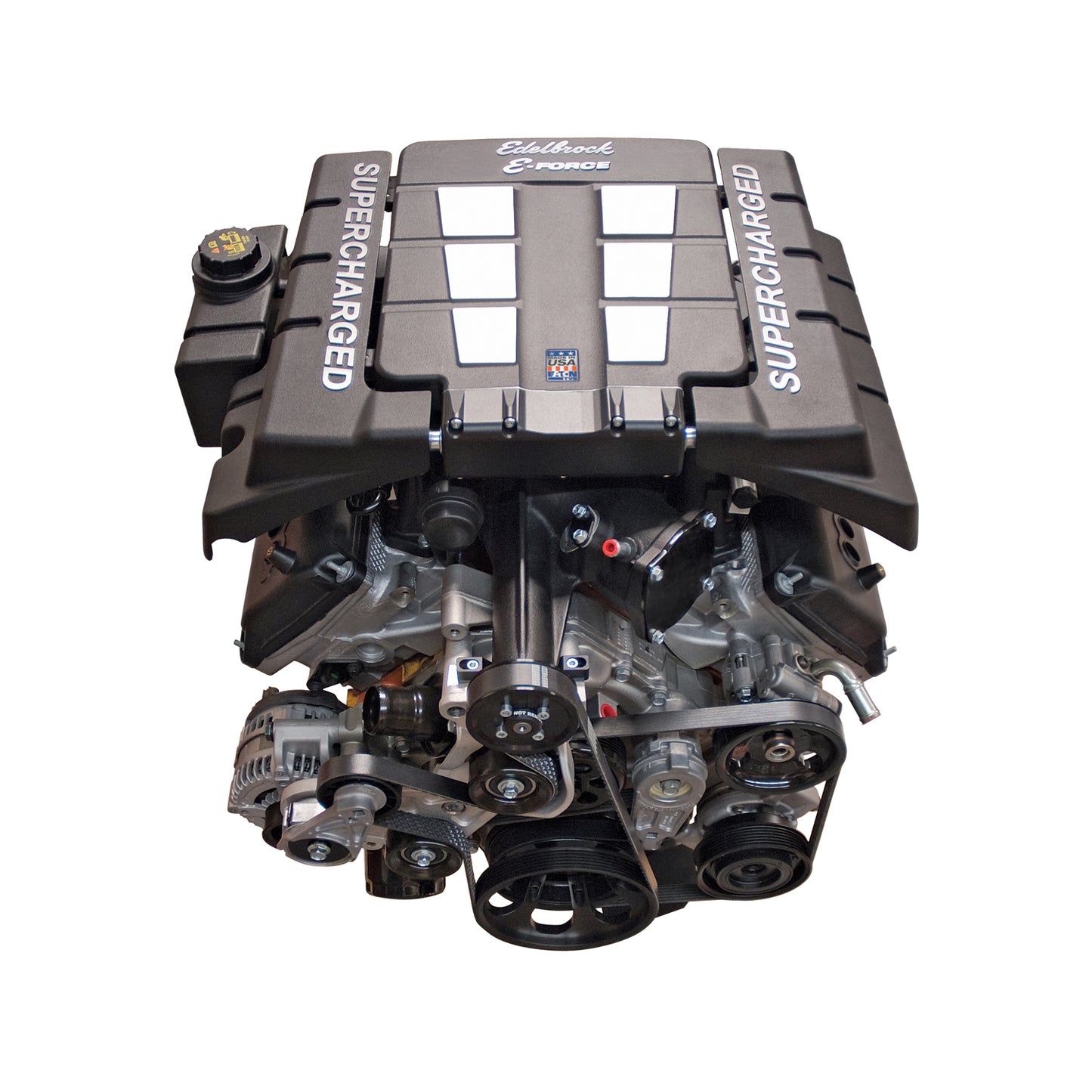

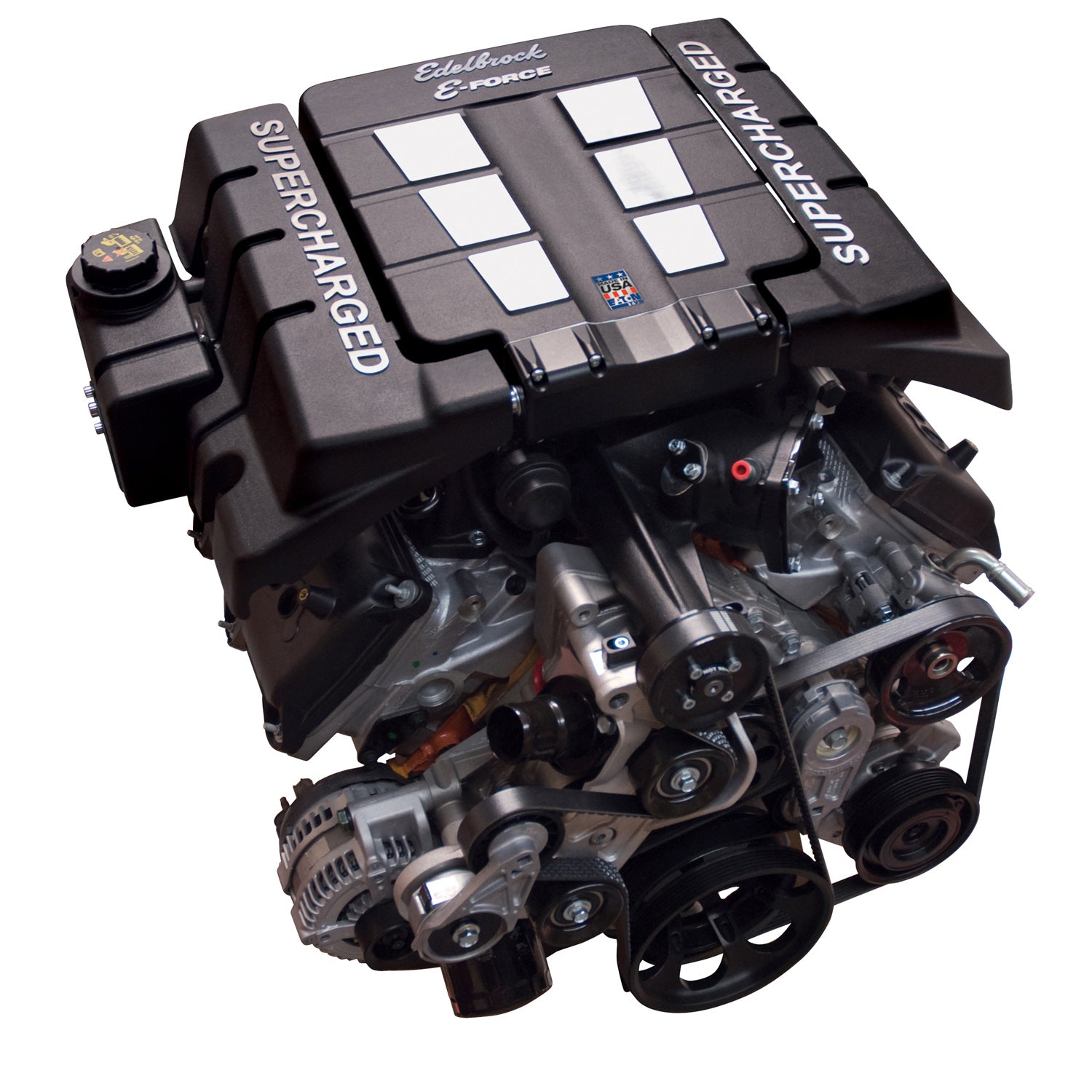

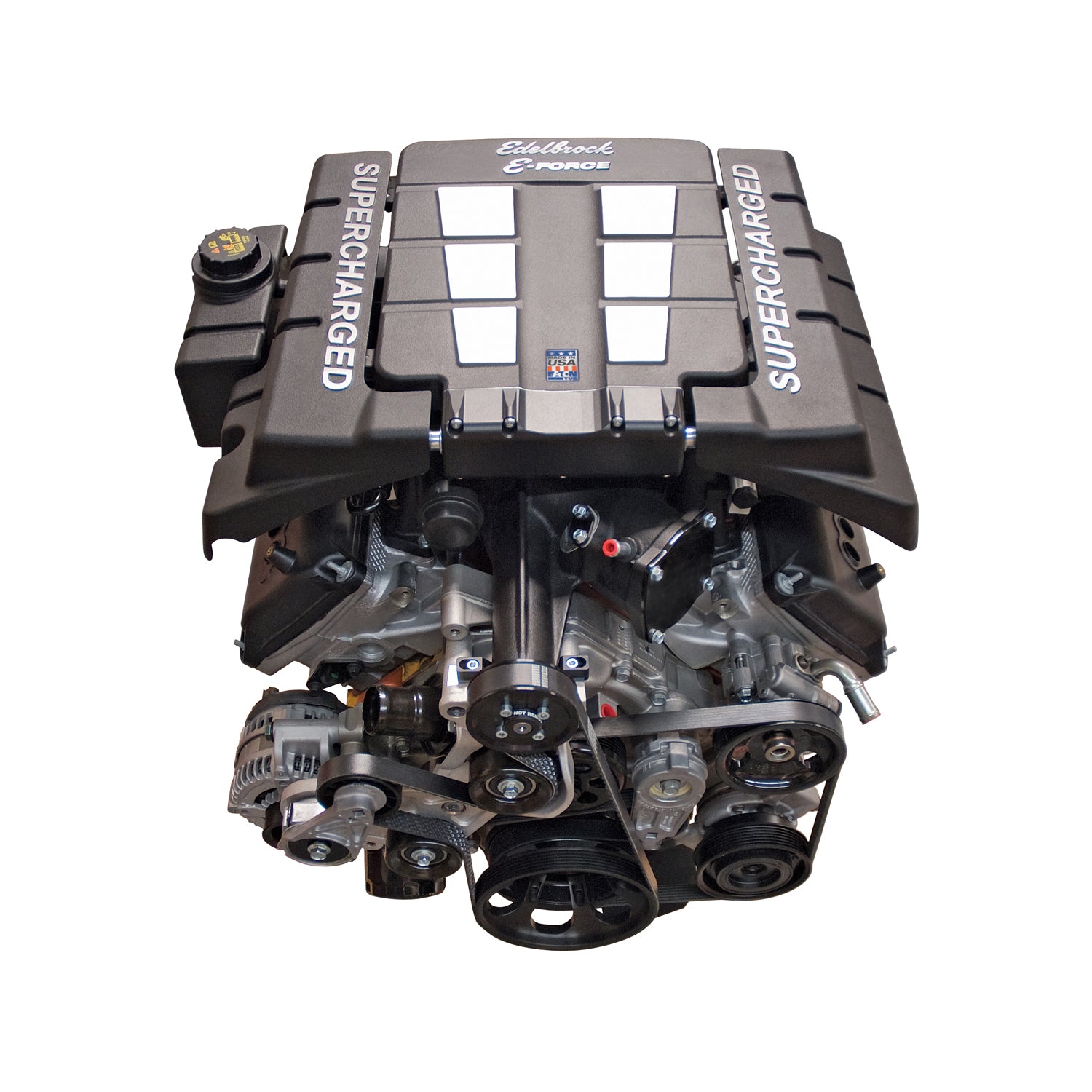

The Edelbrock Supercharger System #1530 is designed for your 2006-08 5.7L HEMI Chrysler 300, Dodge Charger or Magnum and makes 466 horsepower and 456 ft-lbs of torque. Its unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. Edelbrock superchargers are designed with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential under normal driving conditions. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Vehicle Specific

• Chrysler:Gen III HEMI:345 (5.7L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347015306
• 9040: D-215-89
• Air Filter Included: Yes
• Calibration: Yes
• Center Housing Cooling Type: Intercooler
• Finish: Black Powder Coated
• Fuel Injector Type: 46
• Gasket Or Seal Included: Yes
• Harmonic Balancer Diameter: 7.5
• Hose Included: Yes
• Housing Material: Cast Aluminum
• Internal Step Up: Yes
• Maximum Boost Pressure: 6
• Maximum Horsepower: 466
• Maximum Pressure Reading: 6
• Maximum Torque: 456
• Mounting Bracket Included: Yes
• Mounting Hardware Included: Yes
• Oil Capacity: 150
• Outside Pulley Diameter: 3.875
• Pulley Belt Width: 6-Rib
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rotor Type: Eaton TVS 2300
• System Type: Stage 1 - Street System
• Tensioner Included: Yes
• Universal Or Specific Fit: Specific
• Vehicle Model: 300C

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 44 x 44 x 32 inches
• Weight: 198 POUNDS

PDF:
