Supercharger #152840 For 2018-2020 Jeep Wrangler JL And Gladiator JT W/O Tune

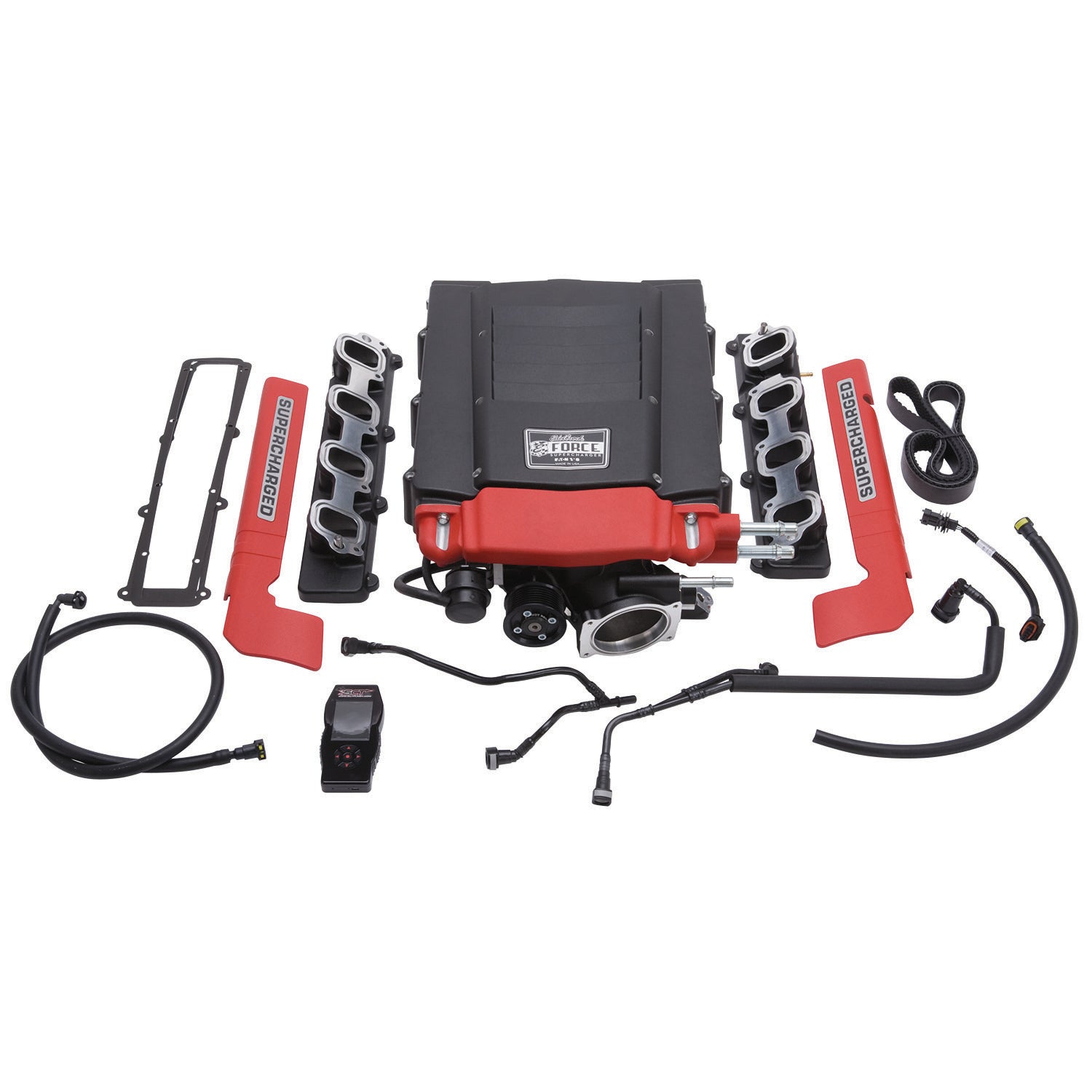

The Edelbrock E-Force Supercharger system part #15292 for the 2017 C7 Corvette Z06 6.2L delivers excellent horsepower and torque in a complete kit. This unit is designed for an LT4 engine. The part #15292 features a unique design with minimal components which makes it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four lobe design and has 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting. This Supercharger System WILL REQUIRE the ECM to be sent in for calibration. NO HANDHELD PROGRAMMER INCLUDED. This process can take up to 5 days from the time your ECU is received! Edelbrock E-Force Supercharger part #15292 is backed by our FREE 3 YEAR/36,000 MILE LIMITED POWERTRAIN WARRANTY! Vehicle Specific

• Chevrolet:Small-Block Gen V LT4:376 (6.2L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347152926
• 9040: D-215-103
• Maximum Boost Pressure: 15
• Maximum Pressure Reading: 15
• Pulley Belt Width: 8.0
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 28 x 15 x 15 inches
• Weight: 82 POUNDS
