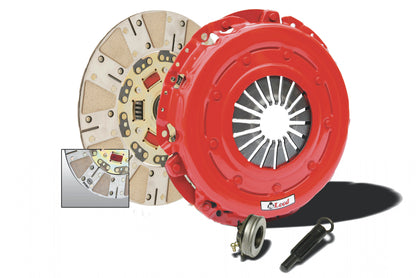

McLeod Street Extreme Clutch Kits

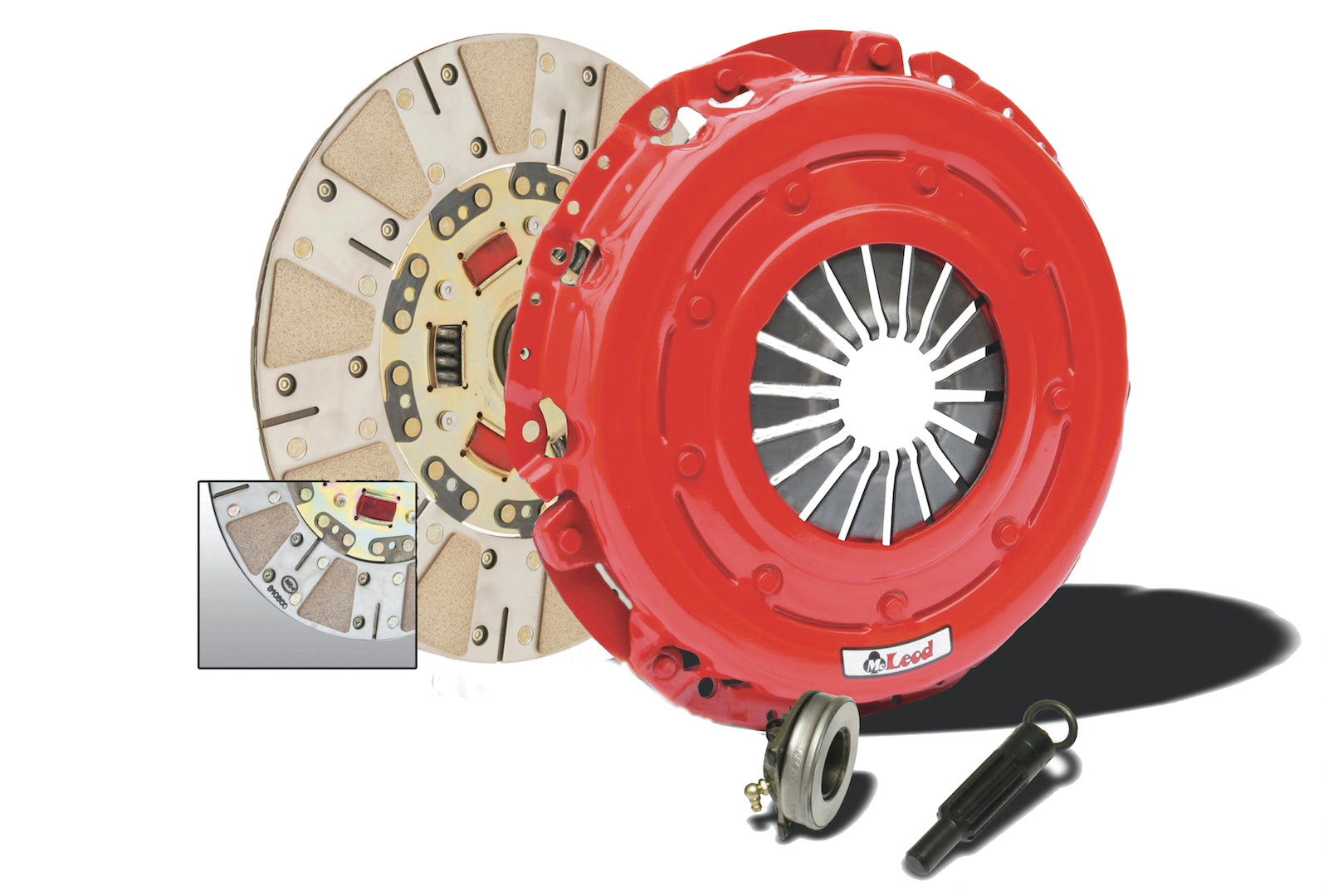

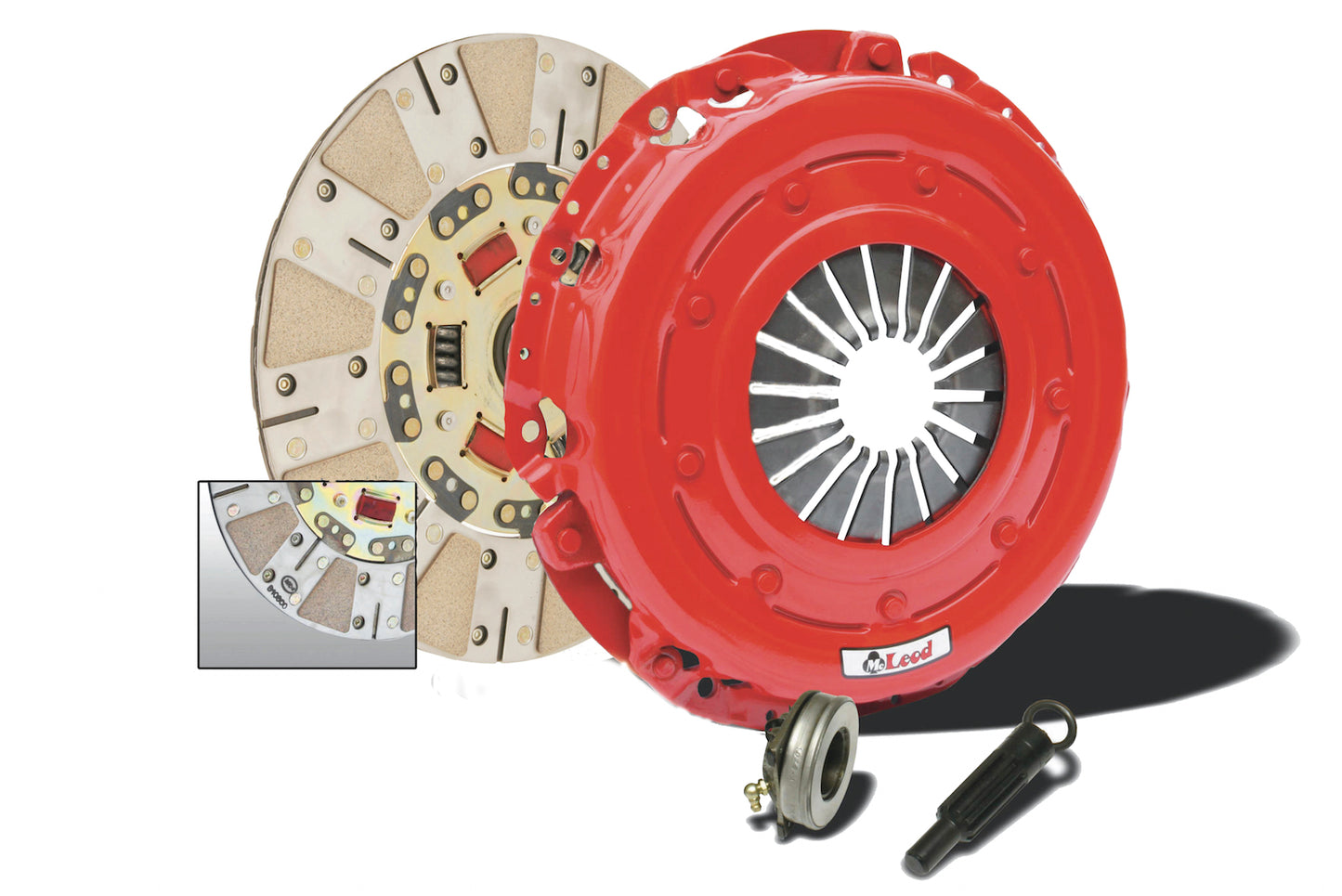

The Street Extreme is ideal for both the street and the track. We recommend it for cars up to 700 crank Hp/Tq (depending on part number) with moderate engine mods and street tires. The kit is SFI approved. Included is a high clamp load pressure plate, a dual face ceramic disc for smooth engagement and awesome holding power. Our kits are complete with Pressure Plate, Disc, throw out bearing (where applicable) pilot bushing (where applicable) and alignment tool.

• • Street/Strip High Performance Upgrade. • Ceramic Lined Sprung Hub Disc. • Exceptional Holding. • Excellent Street/Track Clutch.

Vehicle Specific

• Ford: Mustang 11 - 17 5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753010988
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: No
• Disc Diameter (in.): 11.000
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Included: No
• Hardware Included: No
• Horsepower Rating: 650
• Hub Style: Sprung
• Input Shaft Diameter (in.): 1.000
• Input Spline Quantity: 23M
• Make: Ford
• Pilot Bushing Included: Yes
• Pilot Bushing Material: Bronze Oilite
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 14.5 x 5 inches
• Weight: 23 POUNDS
