McLeod Street Extreme Clutch Kits

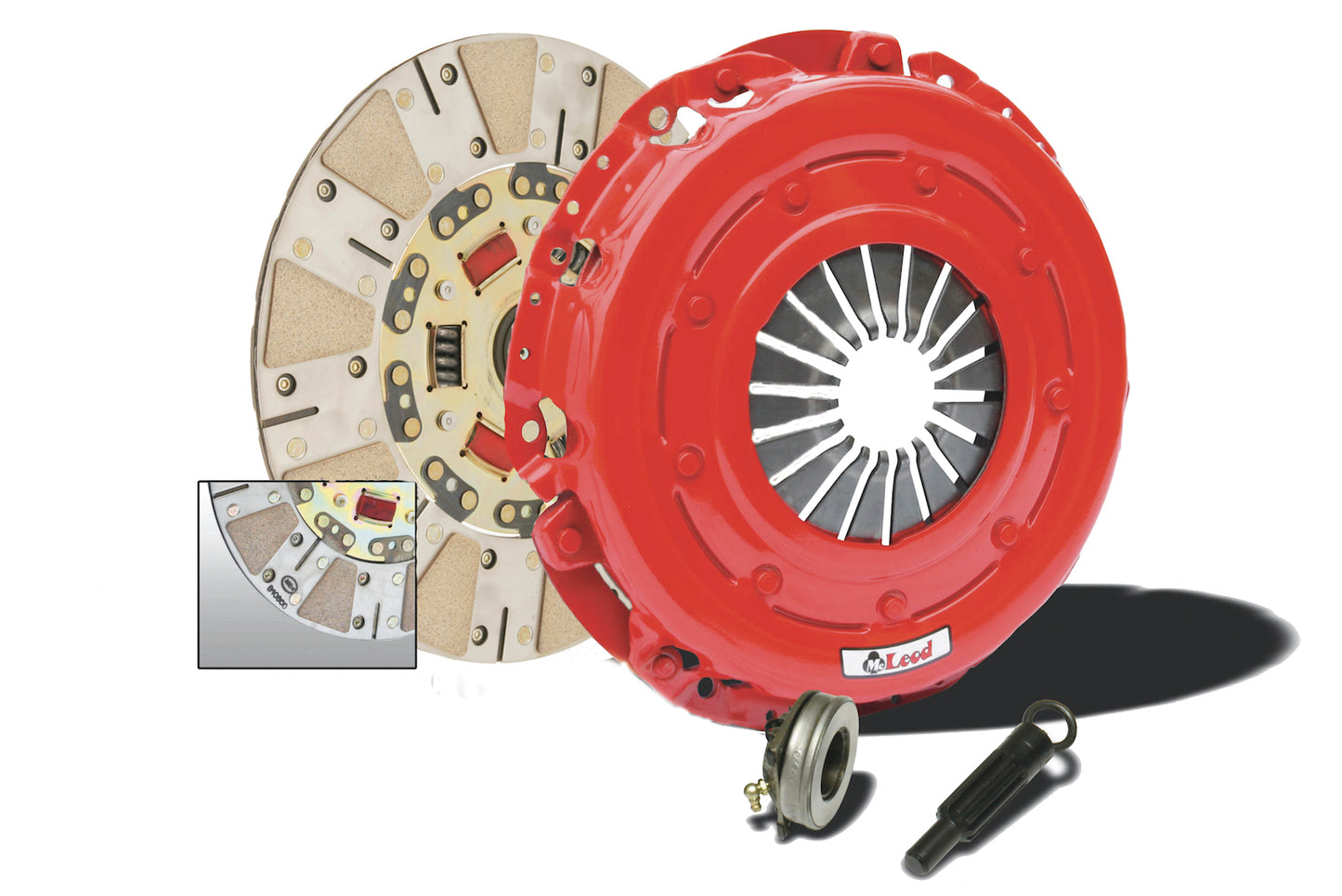

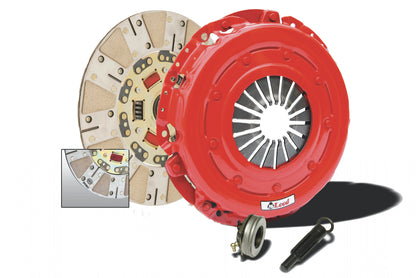

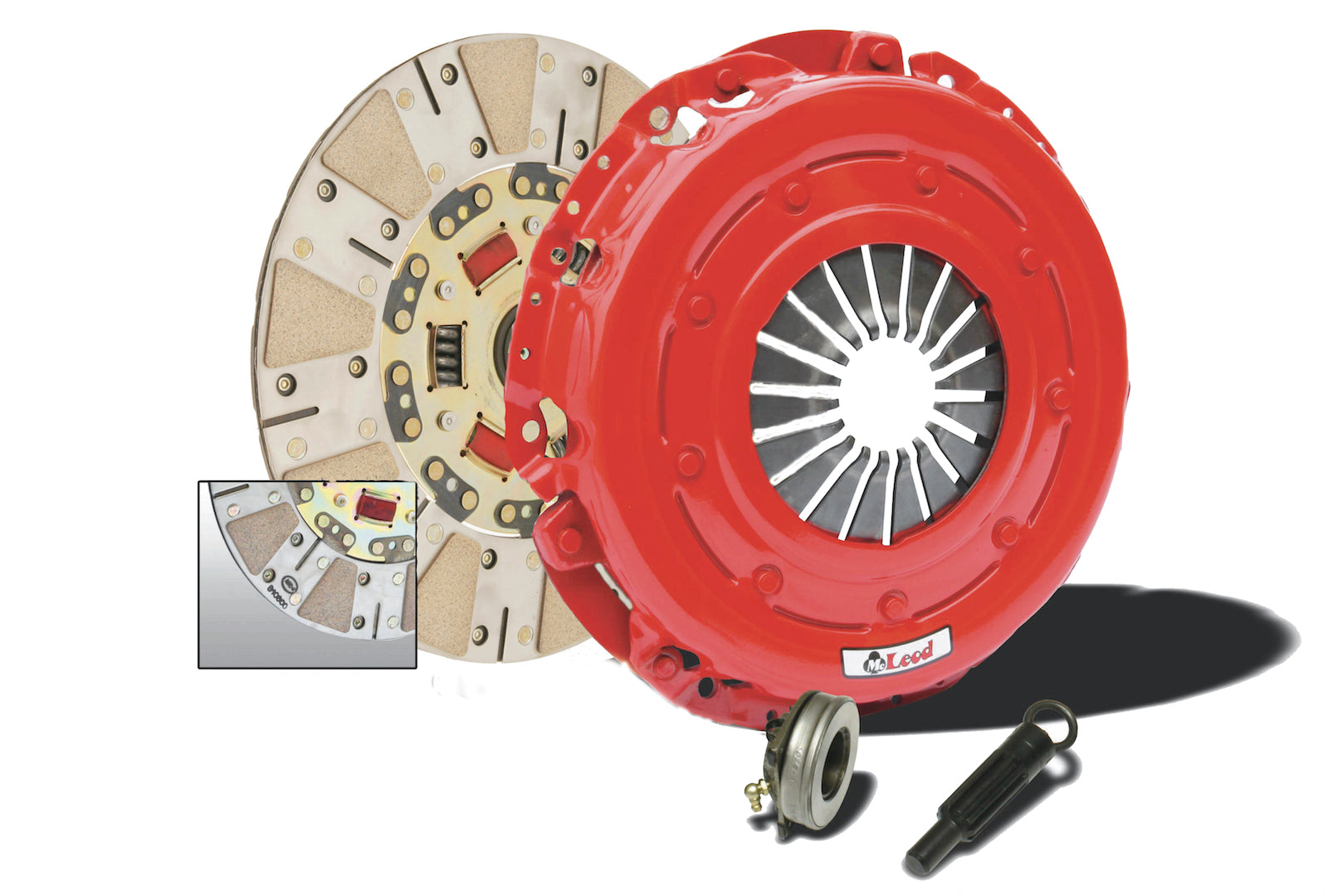

The Street Extreme is ideal for both the street and the track. We recommend it for cars up to 700 crank Hp/Tq (depending on part number) with moderate engine mods and street tires. The kit is SFI approved. Included is a high clamp load pressure plate, a dual face ceramic disc for smooth engagement and awesome holding power. Our kits are complete with Pressure Plate, Disc, throw out bearing (where applicable) pilot bushing (where applicable) and alignment tool.

• • Street/Strip High Performance Upgrade. • Ceramic Lined Sprung Hub Disc. • Exceptional Holding. • Excellent Street/Track Clutch.

Vehicle Specific

• Chrysler: 300 63 - 66 6.3 L Engine, Chrysler: 300 66 - 69 7.2 L Engine, Chrysler: Newport 71 - 71 5.9 L Engine, Chrysler: Newport 65 - 71 6.3 L Engine, Chrysler: Newport 66 - 71 7.2 L Engine
• Dodge: Charger 67 - 74 7.2 L Engine, Dodge: Coronet 65 - 76 5.2 L Engine, Dodge: Coronet 70 - 73 5.6 L Engine, Dodge: Coronet 71 - 76 5.9 L Engine, Dodge: Coronet 65 - 71 6.3 L Engine
• Dodge: Coronet 72 - 76 6.6 L Engine, Dodge: Coronet 66 - 76 7.2 L Engine, Dodge: D100 75 - 89 5.2 L Engine, Dodge: D100 75 - 88 5.9 L Engine, Dodge: D100 76 - 78
• Chrysler: Valiant 76 - 80 5.9 L Engine, Dodge: 880 64 - 65 6.3 L Engine, Dodge: Aspen 76 - 80 5.2 L Engine, Dodge: Aspen 76 - 80 5.9 L Engine, Dodge: B100 75 - 80 5.2 L Engine
• Dodge: B100 76 - 78 5.9 L Engine, Dodge: B100 Van 71 - 74 5.2 L Engine, Dodge: B100 Van 71 - 74 5.9 L Engine, Dodge: B100 Van 74 - 74 7.2 L Engine, Dodge: B150 81 - 93 5.2 L Engine
• Dodge: B200 75 - 80 5.2 L Engine, Dodge: B200 75 - 80 5.9 L Engine, Dodge: B200 76 - 78 6.6 L Engine, Dodge: B200 75 - 78 7.2 L Engine, Dodge: B200 Van 71 - 74 5.2 L Engine
• Dodge: B200 Van 71 - 74 5.9 L Engine, Dodge: B200 Van 71 - 74 6.6 L Engine, Dodge: B300 75 - 80 5.2 L Engine, Dodge: B300 75 - 80 5.9 L Engine, Dodge: B300 76 - 78 6.6 L Engine
• Dodge: B300 75 - 78 7.2 L Engine, Dodge: B300 Van 71 - 74 5.2 L Engine, Dodge: B300 Van 71 - 74 5.9 L Engine, Dodge: B300 Van 71 - 74 6.6 L Engine, Dodge: B300 Van 74 - 74 7.2 L Engine
• Dodge: CB300 73 - 80 5.2 L Engine, Dodge: CB300 73 - 80 5.9 L Engine, Dodge: CB300 76 - 78 6.6 L Engine, Dodge: CB300 77 - 79 7.2 L Engine, Dodge: Challenger 70 - 74 5.2 L Engine
• Dodge: Challenger 70 - 73 5.6 L Engine, Dodge: Challenger 71 - 74 5.9 L Engine, Dodge: Challenger 70 - 71 6.3 L Engine, Dodge: Challenger 72 - 74 6.6 L Engine, Dodge: Challenger 70 - 72 7.2 L Engine
• Dodge: Charger 66 - 74 5.2 L Engine, Dodge: Charger 70 - 73 5.6 L Engine, Dodge: Charger 71 - 74 5.9 L Engine, Dodge: Charger 66 - 71 6.3 L Engine, Dodge: Charger 72 - 74 6.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753893086
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: No
• Disc Diameter (in.): 11.000
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Included: No
• Hardware Included: No
• Horsepower Rating: 650
• Hub Style: Sprung
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Make: Mopar
• Note: Aftermarket Transmission
• Note 2: If using Ford based TKX please order pilot bushing part number 8-0941-2. If Using a GM based TKX please order pilot bushing number 8-0941-1.
• Pilot Bushing Included: No
• Pilot Bushing Material: N/A
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 14.5 x 5 inches
• Weight: 25 POUNDS
