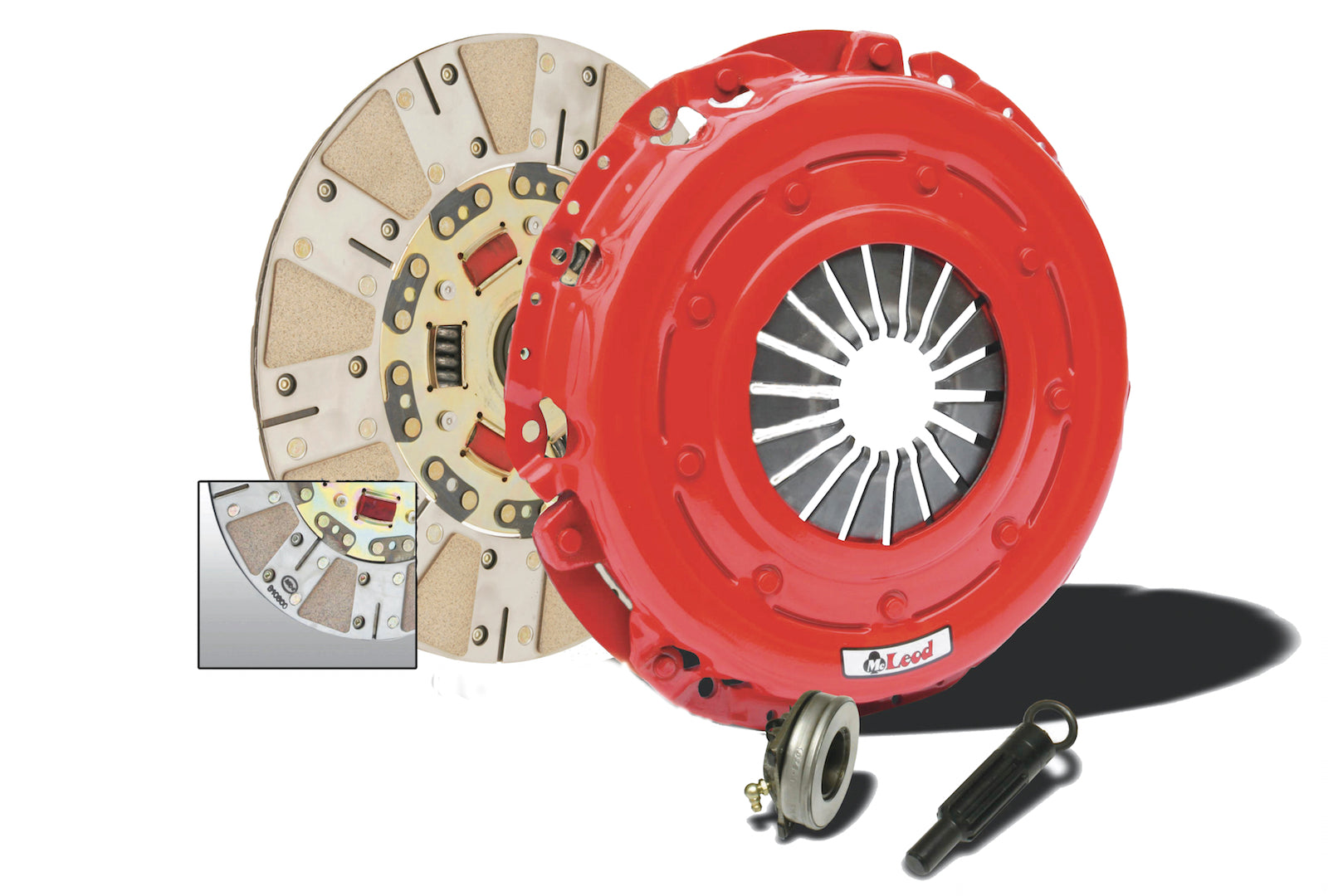

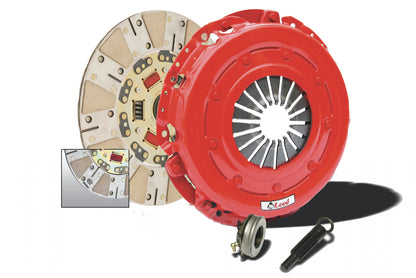

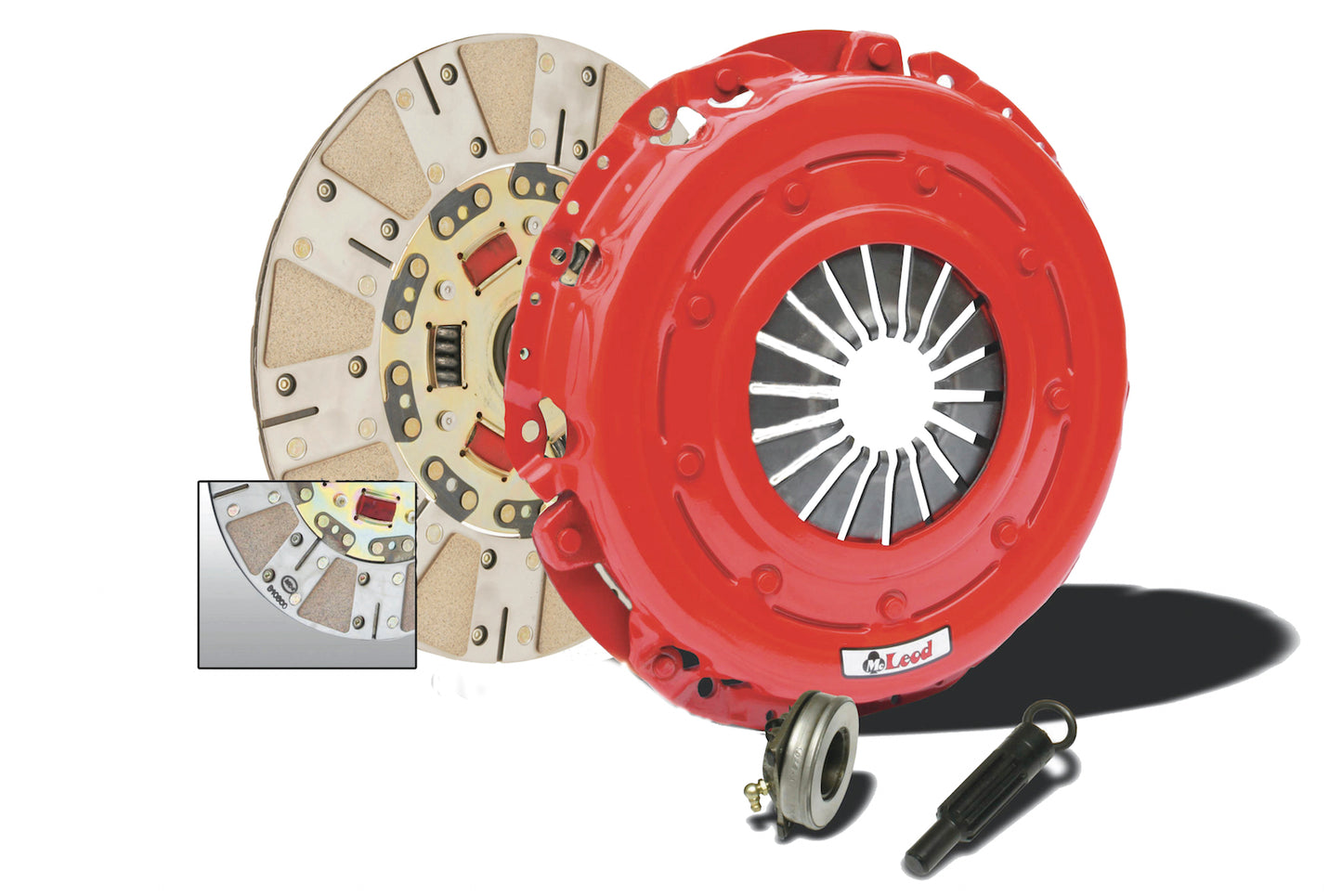

McLeod Street Extreme Clutch Kits

The Street Extreme is ideal for both the street and the track. We recommend it for cars up to 700 crank Hp/Tq (depending on part number) with moderate engine mods and street tires. The kit is SFI approved. Included is a high clamp load pressure plate, a dual face ceramic disc for smooth engagement and awesome holding power. Our kits are complete with Pressure Plate, Disc, throw out bearing (where applicable) pilot bushing (where applicable) and alignment tool.

• • Street/Strip High Performance Upgrade. • Ceramic Lined Sprung Hub Disc. • Exceptional Holding. • Excellent Street/Track Clutch.

Vehicle Specific

• Buick: Apollo 73 - 73 5.7 L Engine, Buick: Centurion 73 - 73 5.7 L Engine, Buick: Century 73 - 73 5.7 L Engine, Buick: GS 71 - 71 5.7 L Engine, Buick: LeSabre 71 - 73 5.7 L Engine
• Buick: Regal 73 - 73 5.7 L Engine, Buick: Skylark 71 - 72 5.7 L Engine, Buick: Sportwagon 71 - 72 5.7 L Engine, Chevrolet: Camaro 82 - 92 5 L Engine, Chevrolet: Camaro 87 - 92 5.7 L Engine
• Chevrolet: Corvette 71 - 88 5.7 L Engine, Oldsmobile: Cutlass 71 - 72 5.7 L Engine, Oldsmobile: Delta 88 71 - 72 5.7 L Engine, Oldsmobile: F85 71 - 72 5.7 L Engine
• Oldsmobile: Vista Cruiser 71 - 72 5.7 L Engine, Pontiac: Bonneville 71 - 71 5.7 L Engine, Pontiac: Bonneville 71 - 71 6.6 L Engine, Pontiac: Catalina 71 - 71 5.7 L Engine
• Pontiac: Catalina 71 - 71 6.6 L Engine, Pontiac: Firebird 79 - 79 4.9 L Engine, Pontiac: Firebird 82 - 92 5 L Engine, Pontiac: Firebird 75 - 92 5.7 L Engine, Pontiac: Firebird 71 - 77 6.6 L Engine
• Pontiac: GTO 71 - 71 6.6 L Engine, Pontiac: Grand Am 73 - 75 5.7 L Engine, Pontiac: Grand Am 73 - 75 6.6 L Engine, Pontiac: Grand LeMans 75 - 77 5.7 L Engine, Pontiac: Grand LeMans 75 - 77 6.6 L Engine
• Pontiac: Grand Prix 71 - 71 6.6 L Engine, Pontiac: LeMans 71 - 77 5.7 L Engine, Pontiac: LeMans 71 - 77 6.6 L Engine, Pontiac: Phoenix 77 - 77 5.7 L Engine, Pontiac: Ventura 71 - 77 5.7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753010919
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: No
• Disc Diameter (in.): 10.500
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Included: No
• Hardware Included: No
• Horsepower Rating: 600
• Hub Style: Sprung
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Make: GM
• Note: Buick, Oldsmobile, Pontiac Applications require pilot bushing 8-1380-1 (Sold Separately)
• Pilot Bushing Included: Yes
• Pilot Bushing Material: Bronze Oilite
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 14.5 x 5 inches
• Weight: 23 POUNDS
