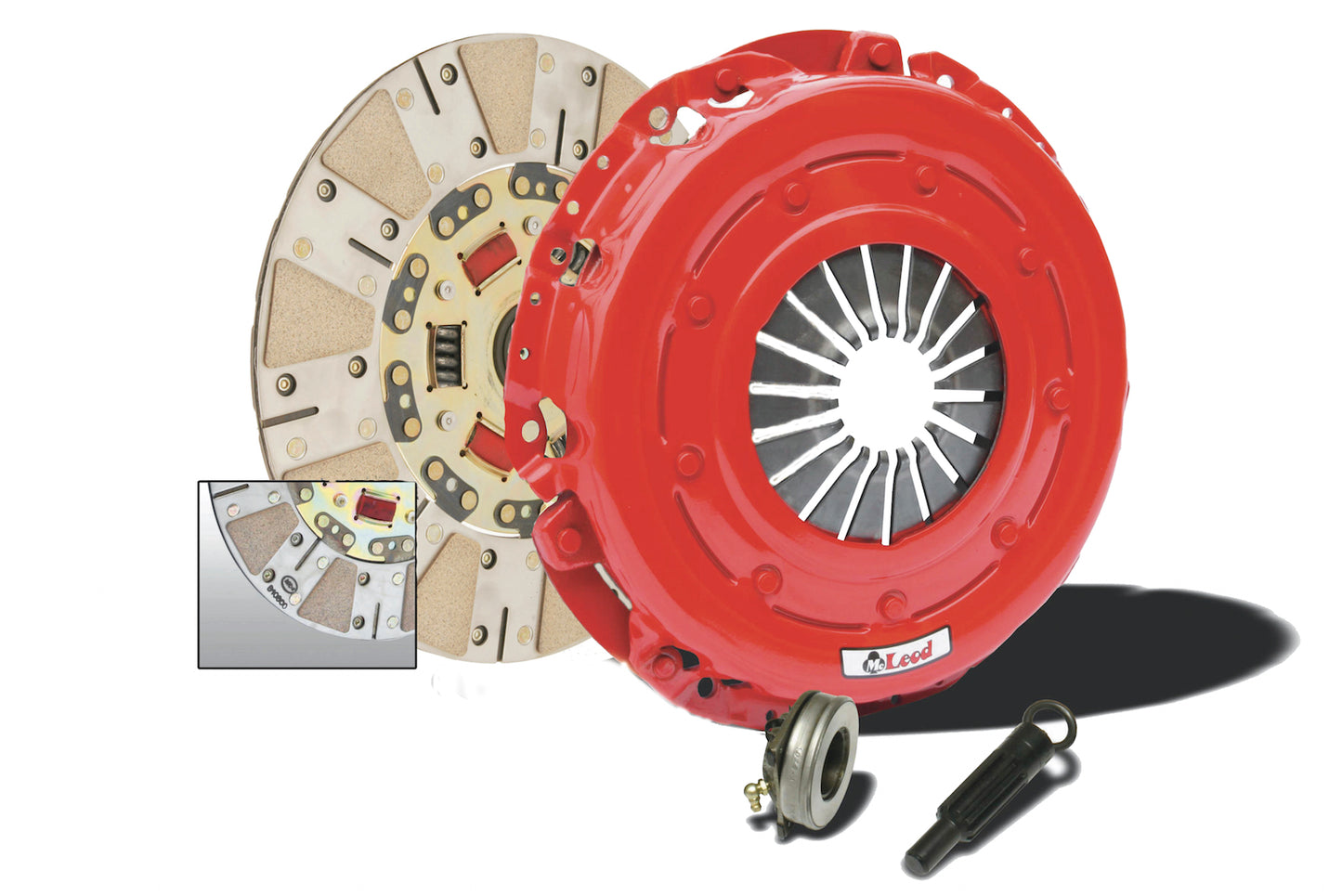

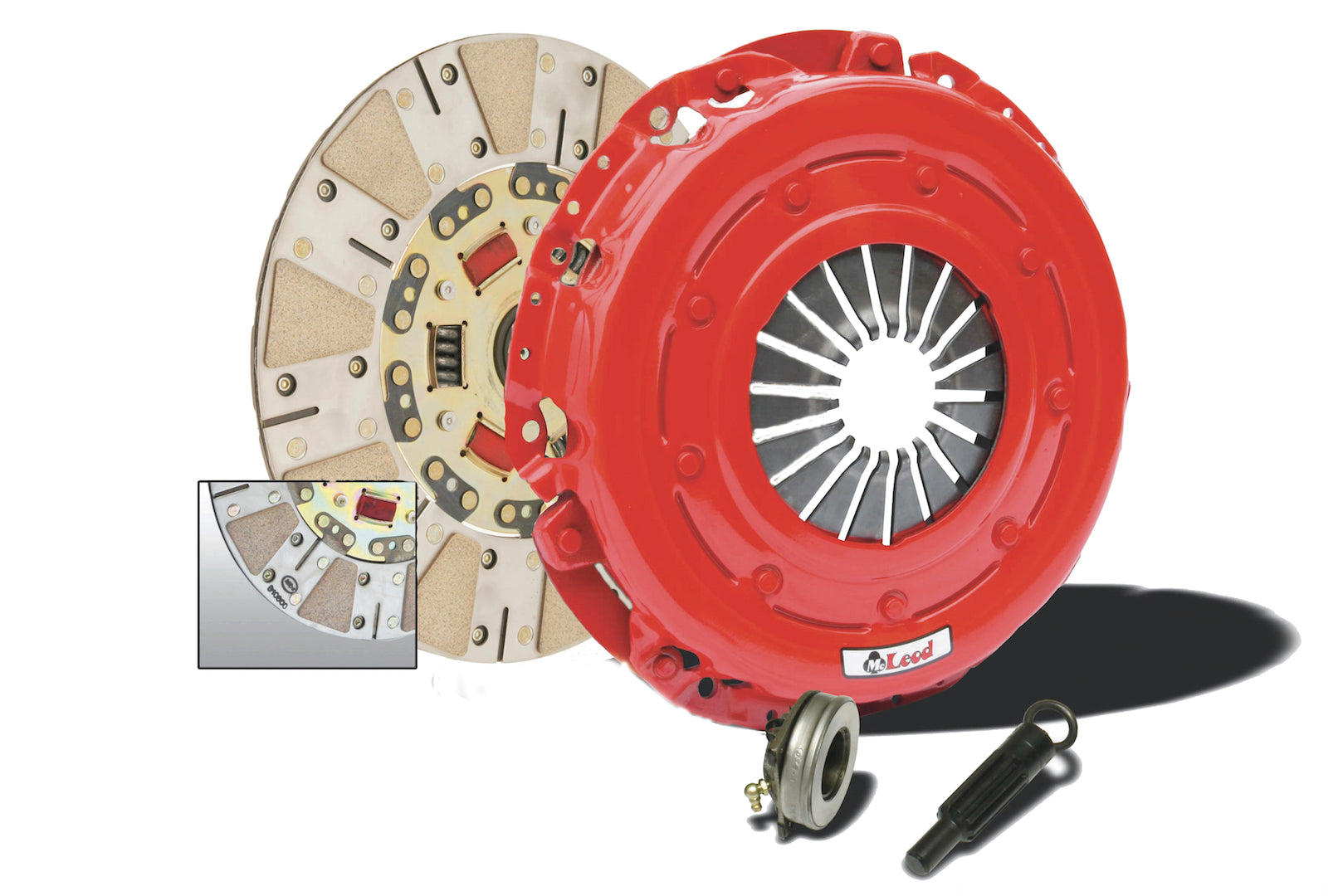

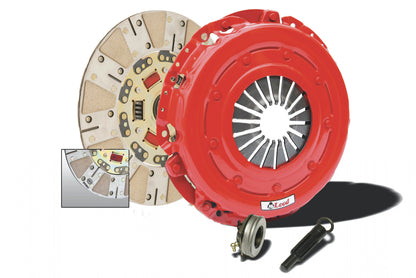

McLeod Street Extreme Clutch Kits

The Street Extreme is ideal for both the street and the track. We recommend it for cars up to 700 crank Hp/Tq (depending on part number) with moderate engine mods and street tires. The kit is SFI approved. Included is a high clamp load pressure plate, a dual face ceramic disc for smooth engagement and awesome holding power. Our kits are complete with Pressure Plate, Disc, throw out bearing (where applicable) pilot bushing (where applicable) and alignment tool.

• • Street/Strip High Performance Upgrade. • Ceramic Lined Sprung Hub Disc. • Exceptional Holding. • Excellent Street/Track Clutch.

Vehicle Specific

• Chevrolet: Blazer 69 - 94 5.7 L Engine, Chevrolet: Blazer 73 - 74 7.4 L Engine, Chevrolet: C10 75 - 86 5.7 L Engine, Chevrolet: C10 76 - 80 6.6 L Engine, Chevrolet: C10 75 - 80 7.4 L Engine
• Chevrolet: K10 Suburban 73 - 74 7.4 L Engine, Chevrolet: K1500 88 - 95 5.7 L Engine, Chevrolet: K20 75 - 86 5.7 L Engine, Chevrolet: K20 75 - 80 6.6 L Engine, Chevrolet: K20 76 - 78 7.4 L Engine
• Chevrolet: K20 Suburban 69 - 84 5.7 L Engine, Chevrolet: K20 Suburban 68 - 69 6.5 L Engine, Chevrolet: K20 Suburban 70 - 80 6.6 L Engine, Chevrolet:
• Chevrolet: C10 Suburban 69 - 84 5.7 L Engine, Chevrolet: C10 Suburban 68 - 69 6.5 L Engine, Chevrolet: C10 Suburban 70 - 72 6.6 L Engine, Chevrolet: C10 Suburban 73 - 80 7.4 L Engine
• Chevrolet: C15 82 - 85 5.7 L Engine, Chevrolet: C1500 88 - 95 5.7 L Engine, Chevrolet: C20 75 - 87 5.7 L Engine, Chevrolet: C20 76 - 80 6.6 L Engine, Chevrolet: C20 75 - 85 7.4 L Engine
• Chevrolet: C20 Suburban 69 - 84 5.7 L Engine, Chevrolet: C20 Suburban 68 - 69 6.5 L Engine, Chevrolet: C20 Suburban 70 - 80 6.6 L Engine, Chevrolet: C20 Suburban 73 - 84 7.4 L Engine
• Chevrolet: C2500 88 - 95 5.7 L Engine, Chevrolet: C30 75 - 86 5.7 L Engine, Chevrolet: C30 76 - 78 6.6 L Engine, Chevrolet: C30 75 - 85 7.4 L Engine, Chevrolet: C35 83 - 95 5.7 L Engine
• Chevrolet: C3500 88 - 95 5.7 L Engine, Chevrolet: El Camino 60 - 79 5.7 L Engine, Chevrolet: El Camino 66 - 70 6.5 L Engine, Chevrolet: El Camino 70 - 76 6.6 L Engine
• Chevrolet: El Camino 70 - 75 7.4 L Engine, Chevrolet: G10 75 - 90 5.7 L Engine, Chevrolet: G10 76 - 76 6.6 L Engine, Chevrolet: G20 75 - 90 5.7 L Engine, Chevrolet: G20 75 - 80 6.6 L Engine
• Chevrolet: G20 Van 70 - 74 5.7 L Engine, Chevrolet: G30 75 - 90 5.7 L Engine, Chevrolet: G30 75 - 80 6.6 L Engine, Chevrolet: K10 75 - 86 5.7 L Engine, Chevrolet: K10 75 - 80 6.6 L Engine
• Chevrolet: K10 76 - 80 7.4 L Engine, Chevrolet: K10 Suburban 69 - 84 5.7 L Engine, Chevrolet: K10 Suburban 68 - 69 6.5 L Engine, Chevrolet: K10 Suburban 70 - 79 6.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753010940
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: No
• Disc Diameter (in.): 12.000
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Included: No
• Hardware Included: No
• Horsepower Rating: 700
• Hub Style: Sprung
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Make: GM
• Note: Buick, Oldsmobile, Pontiac Applications require pilot bushing 8-1380-1 (Sold Separately)
• Pilot Bushing Included: Yes
• Pilot Bushing Material: Bronze Oilite
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 14.5 x 5 inches
• Weight: 23 POUNDS
