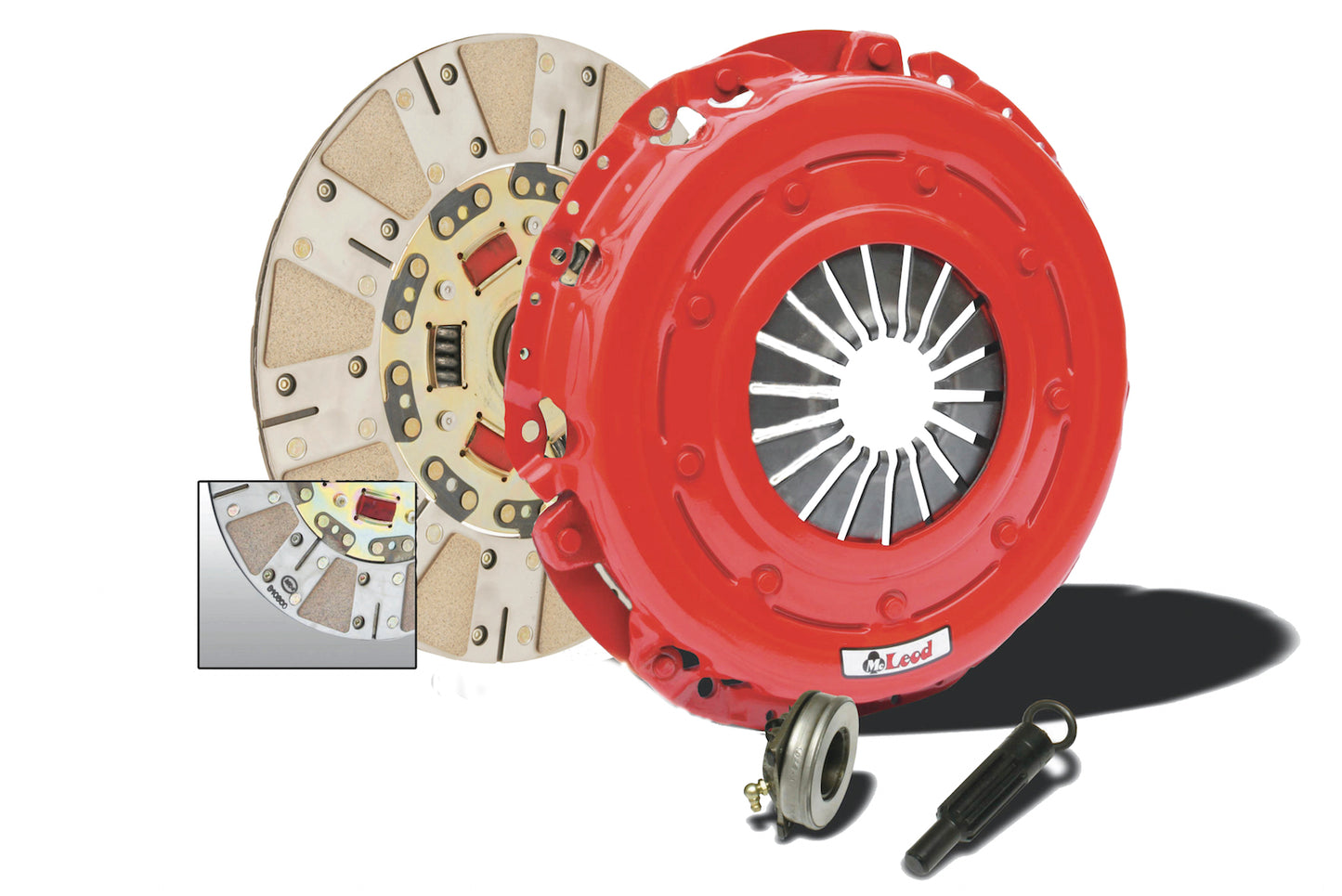

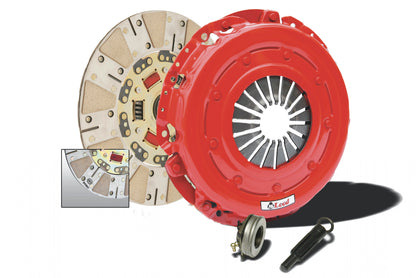

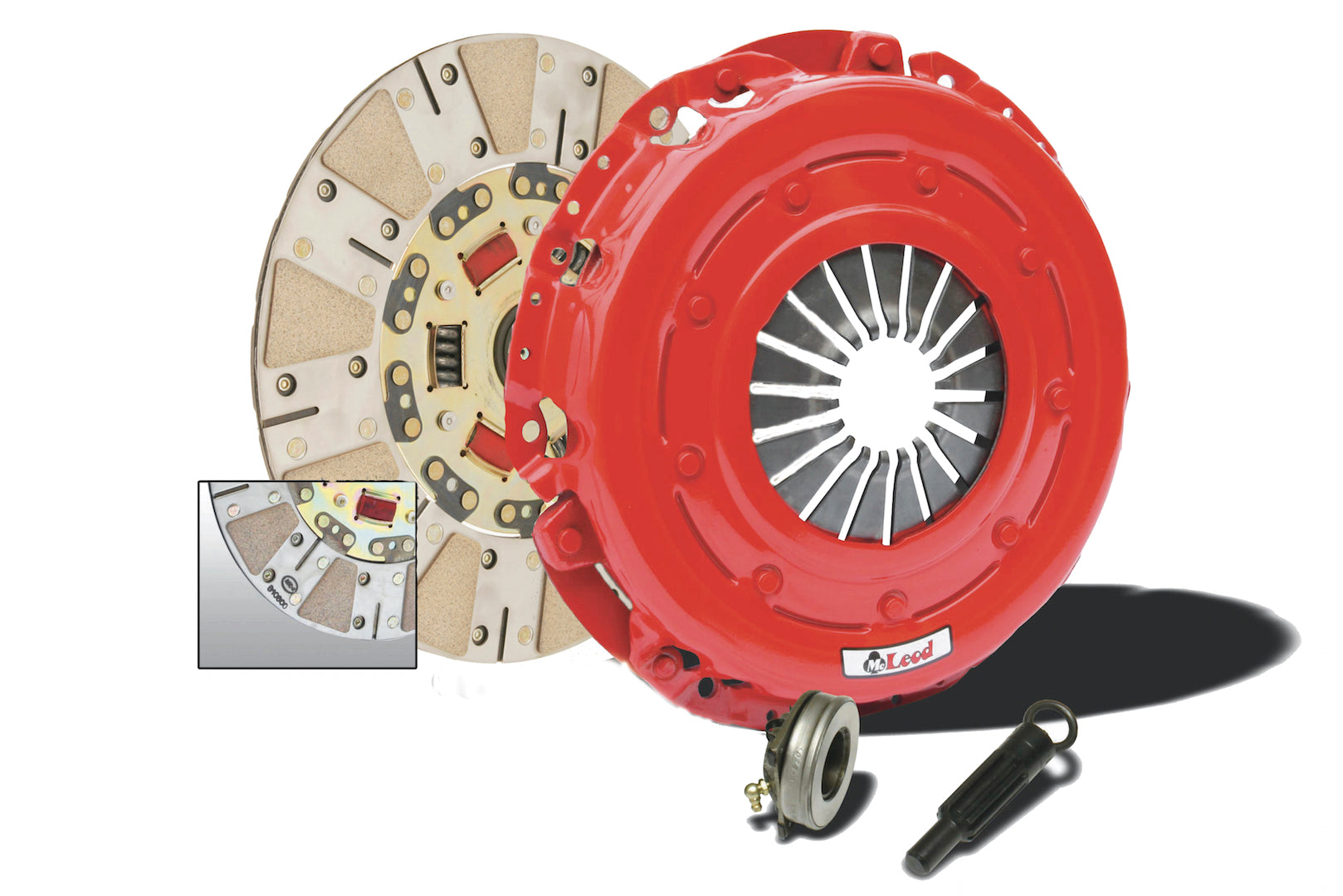

McLeod Street Extreme Clutch Kits

The Street Extreme is ideal for both the street and the track. We recommend it for cars up to 700 crank Hp/Tq (depending on part number) with moderate engine mods and street tires. The kit is SFI approved. Included is a high clamp load pressure plate, a dual face ceramic disc for smooth engagement and awesome holding power. Our kits are complete with Pressure Plate, Disc, throw out bearing (where applicable) pilot bushing (where applicable) and alignment tool.

• • Street/Strip High Performance Upgrade. • Ceramic Lined Sprung Hub Disc. • Exceptional Holding. • Excellent Street/Track Clutch.

Vehicle Specific

• Buick: Apollo 73 - 75 5.7 L Engine, Buick: Centurion 73 - 73 5.7 L Engine, Buick: Century 77 - 81 5 L Engine, Buick: Century 73 - 79 5.7 L Engine, Buick: Estate Wagon 70 - 70 5.7 L Engine
• Chevrolet: Chevelle 70 - 76 6.6 L Engine, Chevrolet: Chevelle 70 - 75 7.4 L Engine, Chevrolet: Chevy II 67 - 67 4.1 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine
• Chevrolet: Chevy II 65 - 67 5.3 L Engine, Chevrolet: Corvette 57 - 61 4.6 L Engine, Chevrolet: Corvette 62 - 68 5.3 L Engine, Chevrolet: Corvette 69 - 74 5.7 L Engine
• Chevrolet: Del Ray 58 - 58 3.8 L Engine, Chevrolet: Del Ray 58 - 58 4.6 L E
• Buick: GS 70 - 71 5.7 L Engine, Buick: LeSabre 68 - 73 5.7 L Engine, Buick: Regal 77 - 79 5 L Engine, Buick: Regal 73 - 77 5.7 L Engine, Buick: Skylark 77 - 79 5 L Engine
• Buick: Skylark 68 - 79 5.7 L Engine, Buick: Special 68 - 69 5.7 L Engine, Buick: Sportwagon 68 - 72 5.7 L Engine, Chevrolet: Bel Air 57 - 62 3.8 L Engine, Chevrolet: Bel Air 65 - 72 4.1 L Engine
• Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 58 - 72 5.7 L Engine, Chevrolet: Biscayne 58 - 62 3.8 L Engine
• Chevrolet: Biscayne 65 - 72 4.1 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 58 - 72 5.7 L Engine
• Chevrolet: Brookwood 69 - 72 4.1 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Camaro 67 - 79 4.1 L Engine
• Chevrolet: Camaro 67 - 69 4.9 L Engine, Chevrolet: Camaro 76 - 79 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 79 5.7 L Engine, Chevrolet: Caprice 67 - 72 4.1 L Engine
• Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine
• Chevrolet: Chevelle 68 - 77 5 L Engine, Chevrolet: Chevelle 64 - 68 5.3 L Engine, Chevrolet: Chevelle 69 - 77 5.7 L Engine, Chevrolet: Chevelle 65 - 69 6.5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753010872
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: No
• Disc Diameter (in.): 10.500
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Included: No
• Hardware Included: No
• Horsepower Rating: 600
• Hub Style: Sprung
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 10
• Make: GM
• Note: Buick, Oldsmobile, Pontiac Applications require pilot bushing 8-1380-1 (Sold Separately)
• Pilot Bushing Included: Yes
• Pilot Bushing Material: Bronze Oilite
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 14.5 x 5 inches
• Weight: 23 POUNDS
