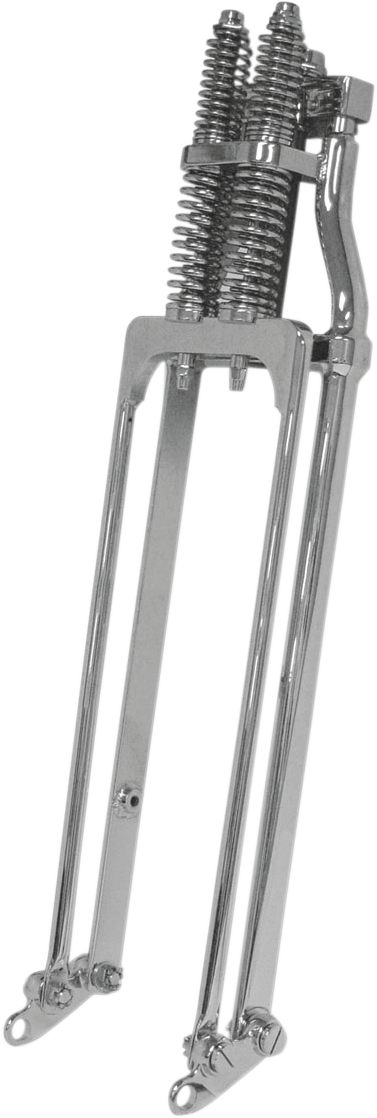

Springer Forks - Chrome - Extends +4"

Economical alternative to a shock dampened-type Springer. Fully assembled with an in-line top bracket without a built-in rake. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end. 1" O.D. steering stem designed for Timken® type bearings. Both rear legs are threaded for right or left brakes. The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used). Measures 9-1/4" between Rockers. Riser mounts are on 4-3/4" centers and threaded 1/2"-20. Requires wheel compatible with 3/4" O.D. axle. These Springers are measured from the bottom of the top tree to the center of the axle. Springers do not accept spotlight bars; no fender mounts..
