SPRING KIT FORD GT40 / GT40P CYLINDER HEAD .570" MAX LIFT

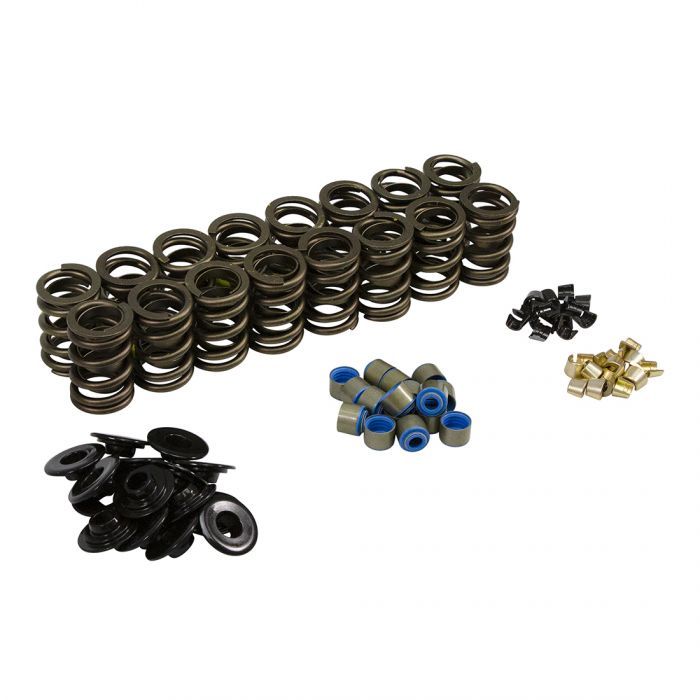

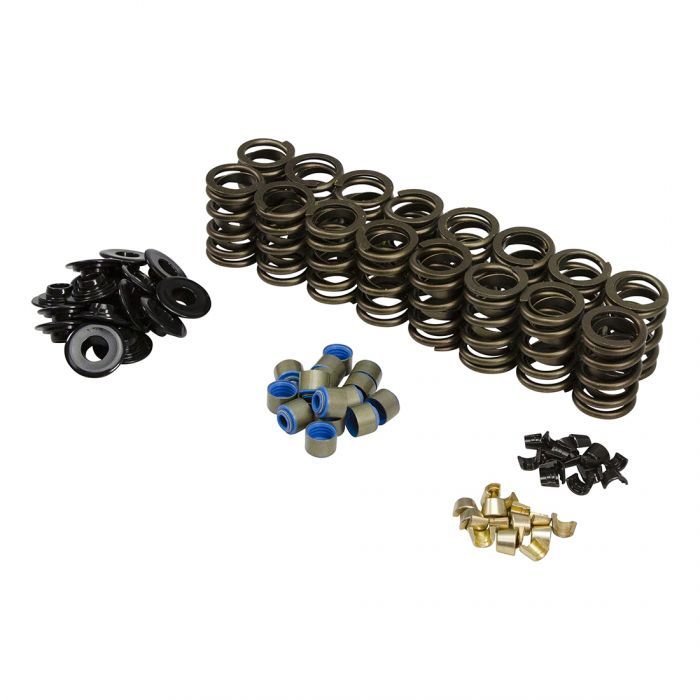

COMP Cams GT40 Valve Spring Kit is designed to maximize the potential of GT40 and GT40P Cylinder Heads when using a flat tappet camshaft. This kit allows up to .570" lift and provides spring rates that can handle significantly more aggressive lobe profiles. This kit has been developed to make your valve train upgrade as easy as possible by combining quality components in a package that does not require any machining! These components will drop right onto stock GT40& GT40P cylinder heads.

• Drop-in valve spring kit for Ford GT40 & GT40P Cylinder Heads
• No machining required
• Includes 8 standard and 8 +.050 locks to achieve correct installed height with factory staggered valve tip lengths
• Includes metal body
• Viton valve stem seals
• -.570" max lift

Vehicle Specific

• Ford GT40 & GT40P Cylinder Heads

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584419884
• Damper Spring Included: Yes
• Inside Diameter: 1.052
• Inside Diameter of Inner Spring (in): N/A
• Inside Diameter of Outer Spring (in): 1.052
• Installed Height: 1.8
• Installed Height (in): 1.8
• Installed Pressure: 110
• Integrated Spring Seat: No
• Load at Installed Height (lbs): 110
• Load at Open Height (lbs): 318
• Lock Style: 10 Degree
• Machine Work Required: No
• Maximum Coil Bind Height (in): 1.17
• Number of Springs Per Valve: 1
• Open Height (in): 1.3
• Open Pressure: 318
• Outside Diameter: 1.486
• Outside Diameter of Outer Spring (in): 1.486
• Recommended Max Lift (in): 0.57
• Retainer Material: Chromoly
• Spring Rate (lbs/in): 416
• Spring Seat OD (in): N/A
• Spring Seat Step Diameter (in): N/A
• Spring Type: Single Spring
• Valve Spring Finish: Raw
• Valve Spring Style: Single
• Valve Stem Diameter (in): 11/32
• Valve Stem Seal Material: Viton
• Valve Stem Seal Type: Positive Stop

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Weight: 0 POUNDS
