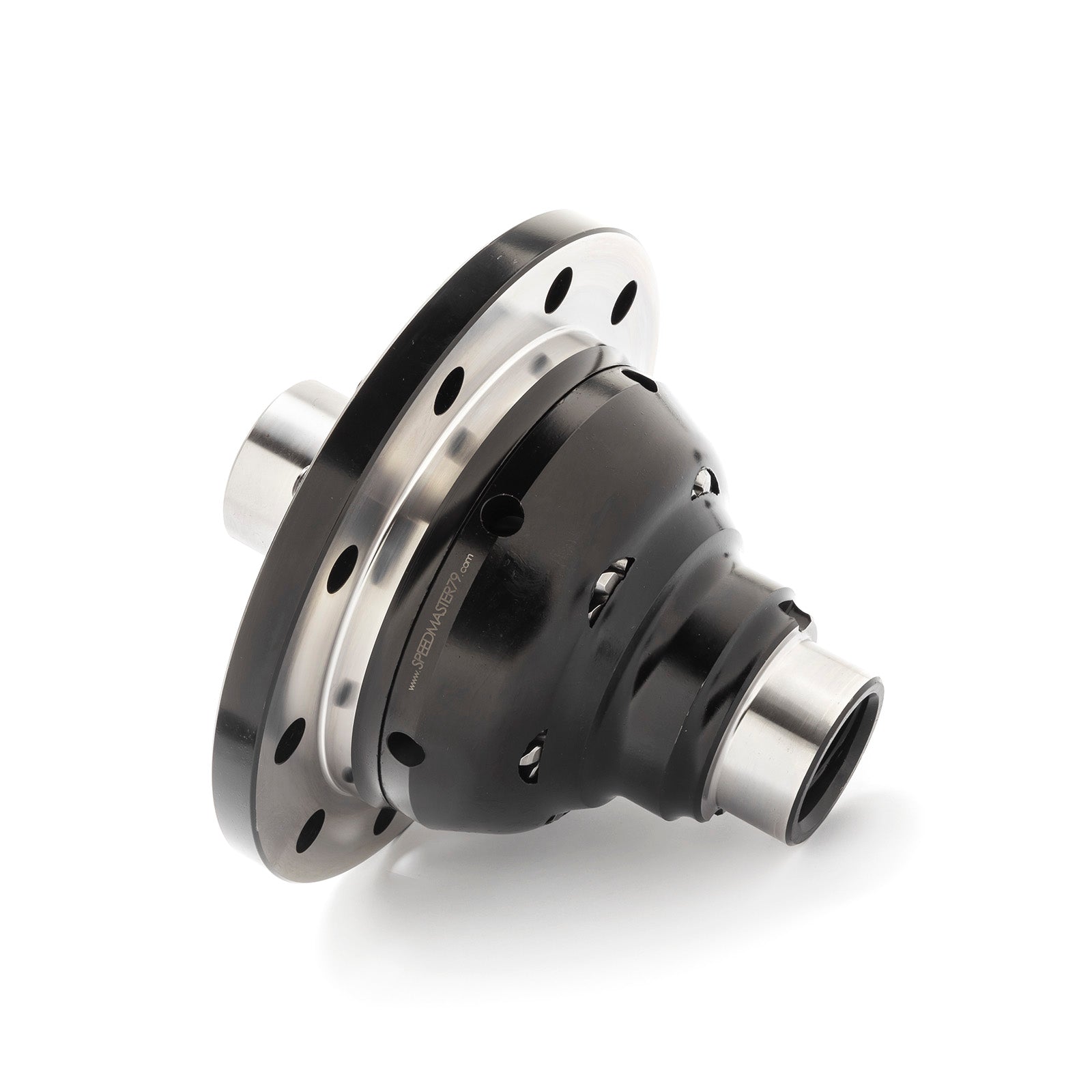

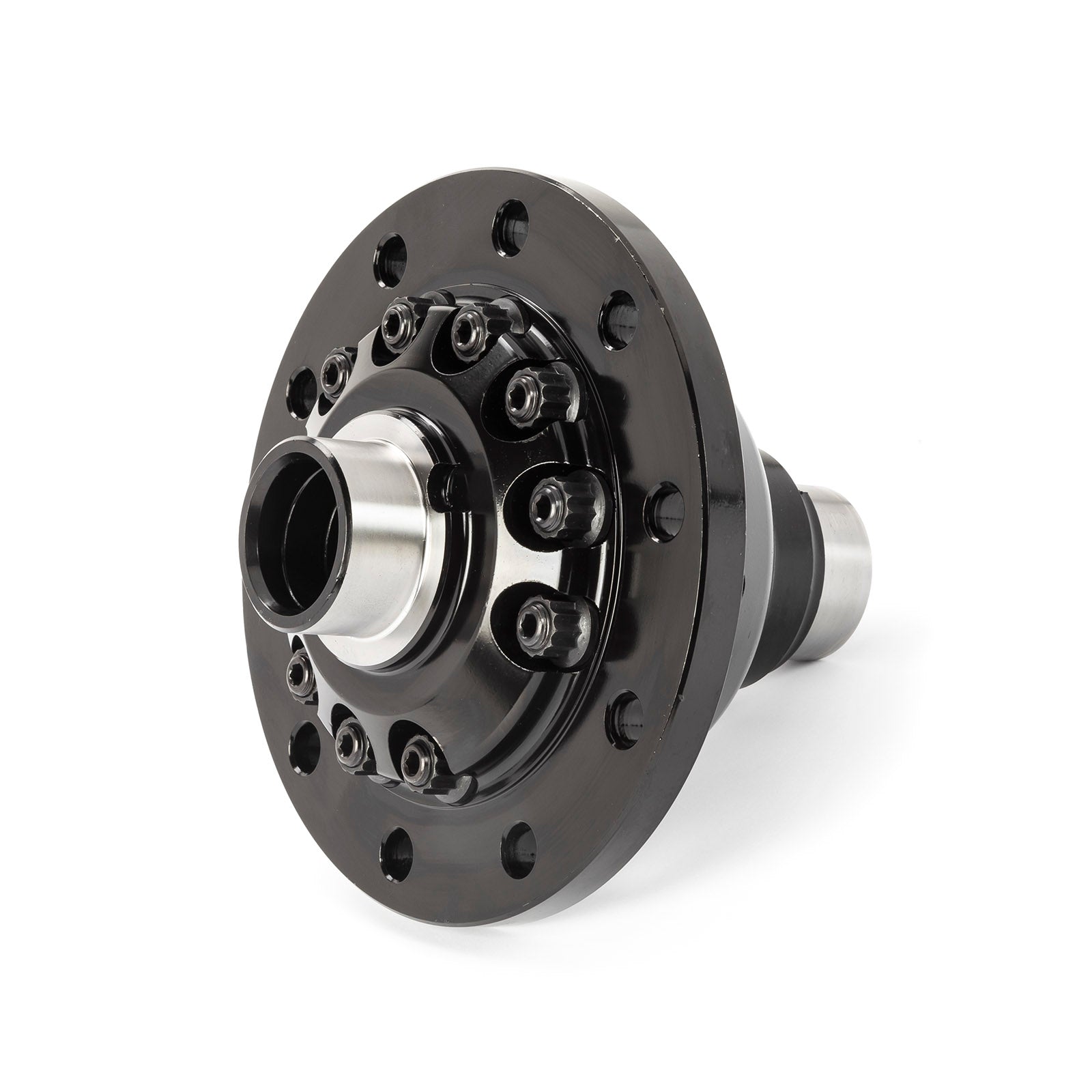

Speedmaster PCE204.1014 Fits Ford 8" 28 Spline TorqueWorm LSD Limited Slip Differential

This units require the use of carrier bearing LM102949 / LM102910. The Torque Worm is a torque biasing 6 pinion gear type limited slip unit. This is a preloaded unit allowing for a faster reacting unit. Unlike our competitors that only use 3 or 4 pinion gears. The use of 6 pinion gears means the stress on gears is spread over a greater surface area, reducing the load on all internal components. The internal components are made from EN36 Material as used in racing such as V8 SUPERCAR. The outer cases made from 8620 Chrome-Nickel-Moly steel and the case hardened for long life and improved strength. The Ford 8" axle is a smaller version of the popular Ford 9 inch axle and features a drop out style carrier, 8" diameter ring gear and removable pinion support.

• 6 pinion gear type limited slip unit
• Preloaded unit allowing for a faster reacting unit
• Internal components are made from EN36 Material
• Outer case made from hardened 8620 Chrome-Nickel-Moly steel for long life and improved strength

Vehicle Specific

• N/A

Attributes:

• Brand Name: Speedmaster
• GTIN: 00840136515067
• Add-On: N/A
• Product Weight (lbs.): 17.621
• TLE: Speedmaster PCE204.1014 Fits Ford 8" 28 Spline TorqueWorm LSD Limited Slip Differential

Extended Information:

• Country of Origin: CN
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9.06 x 8.66 x 8.66 inches
• Weight: 19.05 POUNDS
