McLeod Soft-Lok Clutch Assemblies

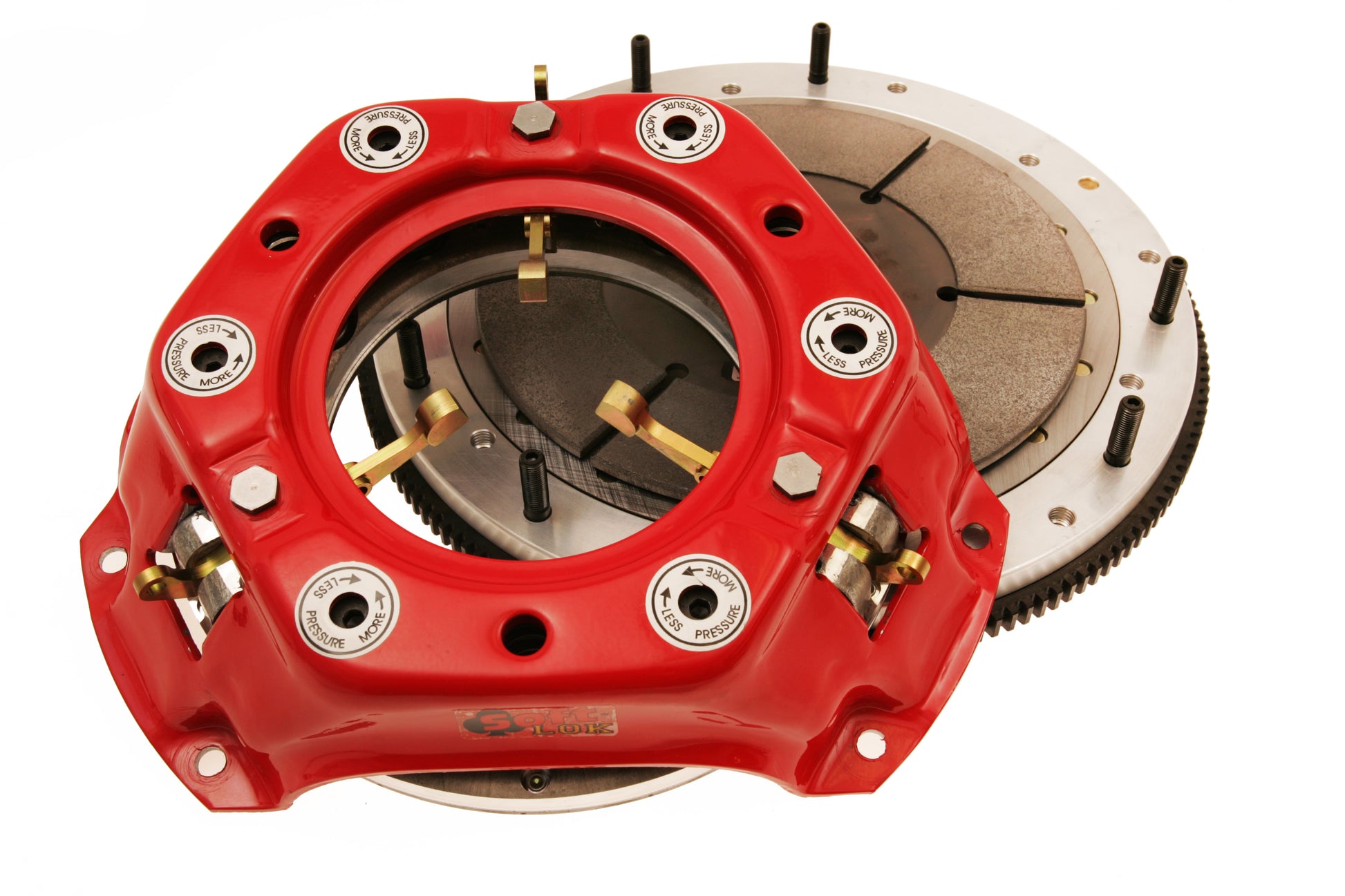

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

• • Low Static Pressure. • Soft Clutch Engagement. • Leave Line Harder with Less Tire Spin. • Adjustable Spring Pressure. • Available with Counterweights.

Vehicle Specific

• Chrysler: 300 64 - 66 6.3 L Engine, Chrysler: 300 66 - 69 7.2 L Engine, Chrysler: Newport 65 - 71 6.3 L Engine, Chrysler: Newport 66 - 71 7.2 L Engine, Dodge: 880 64 - 65 6.3 L Engine
• Dodge: W200 Pickup 73 - 74 7.2 L Engine, Dodge: W200 Series 67 - 67 6.3 L Engine, Dodge: W300 75 - 78 7.2 L Engine, Dodge: W300 Pickup 68 - 71 6.3 L Engine, Dodge: W300 Pickup 72 - 74 7.2 L Engine
• Dodge: W300 Series 67 - 67 6.3 L Engine, Plymouth: Barracuda 68 - 73 5.6 L Engine, Plymouth: Barracuda 67 -
• Dodge: B100 Van 74 - 74 7.2 L Engine, Dodge: B200 75 - 78 7.2 L Engine, Dodge: B300 75 - 78 7.2 L Engine, Dodge: B300 Van 74 - 74 7.2 L Engine, Dodge: CB300 77 - 78 7.2 L Engine
• Dodge: Challenger 70 - 73 5.6 L Engine, Dodge: Challenger 70 - 71 6.3 L Engine, Dodge: Challenger 70 - 72 7.2 L Engine, Dodge: Charger 70 - 73 5.6 L Engine, Dodge: Charger 66 - 71 6.3 L Engine
• Dodge: Charger 67 - 74 7.2 L Engine, Dodge: Coronet 70 - 73 5.6 L Engine, Dodge: Coronet 65 - 71 6.3 L Engine, Dodge: Coronet 66 - 76 7.2 L Engine, Dodge: D100 75 - 78 7.2 L Engine
• Dodge: D100 Pickup 68 - 71 6.3 L Engine, Dodge: D100 Pickup 73 - 74 7.2 L Engine, Dodge: D100 Series 67 - 67 6.3 L Engine, Dodge: D150 78 - 78 7.2 L Engine, Dodge: D200 75 - 78 7.2 L Engine
• Dodge: D200 Pickup 68 - 71 6.3 L Engine, Dodge: D200 Pickup 73 - 74 7.2 L Engine, Dodge: D200 Series 67 - 67 6.3 L Engine, Dodge: D300 Pickup 68 - 71 6.3 L Engine, Dodge: D300 Pickup 72 - 74 7.2 L Engine
• Dodge: D300 Series 67 - 67 6.3 L Engine, Dodge: Dart 68 - 73 5.6 L Engine, Dodge: Dart 67 - 69 6.3 L Engine, Dodge: Monaco 65 - 71 6.3 L Engine, Dodge: Monaco 66 - 71 7.2 L Engine
• Dodge: Polara 64 - 71 6.3 L Engine, Dodge: Polara 66 - 71 7.2 L Engine, Dodge: Ramcharger 74 - 78 7.2 L Engine, Dodge: W100 75 - 77 7.2 L Engine, Dodge: W100 Pickup 68 - 71 6.3 L Engine
• Dodge: W100 Pickup 73 - 74 7.2 L Engine, Dodge: W100 Series 67 - 67 6.3 L Engine, Dodge: W150 78 - 78 7.2 L Engine, Dodge: W200 75 - 78 7.2 L Engine, Dodge: W200 Pickup 68 - 71 6.3 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753673466
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: Yes
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 10.500
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.188
• Input Spline Quantity: 18
• Make: Mopar
• Notes: SPECIAL ORDER made to order item. They come with a lead time of 4-6 weeks.
• Pilot Bushing Included: No
• Pressure Plate Style: Long
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 143-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 75 POUNDS
