McLeod Soft-Lok Clutch Assemblies

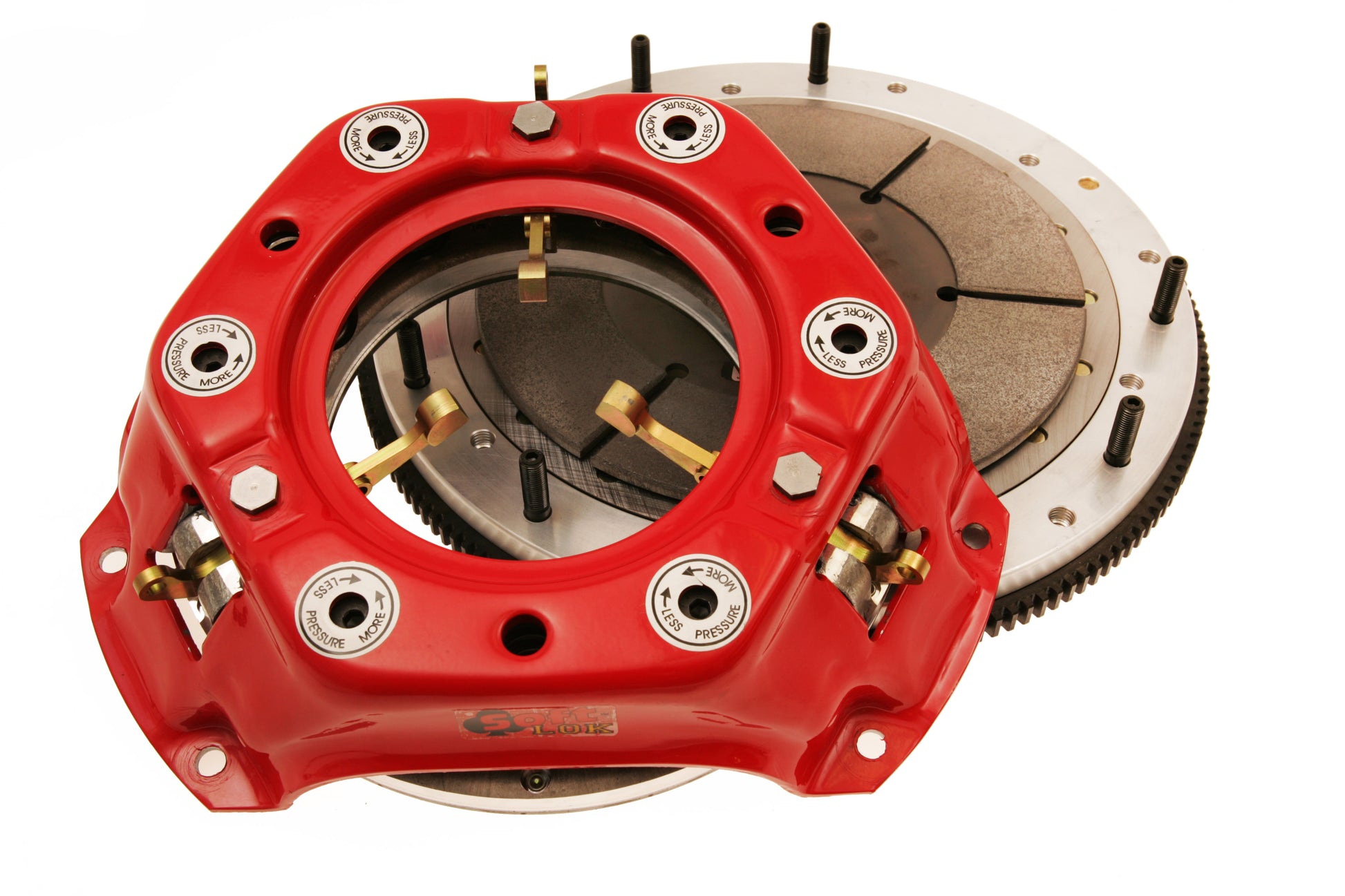

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

• • Low Static Pressure. • Soft Clutch Engagement. • Leave Line Harder with Less Tire Spin. • Adjustable Spring Pressure. • Available with Counterweights.

Vehicle Specific

• Ford: Custom 69 - 72 7 L Engine, Ford: Custom 72 - 72 7.5 L Engine, Ford: Custom 500 73 - 73 7 L Engine, Ford: Custom 500 73 - 73 7.5 L Engine, Ford: E-100 Econoline 78 - 78 7.5 L Engine
• Ford: E-250 Econoline 75 - 78 7.5 L Engine, Ford: E-250 Econoline Club Wagon 75 - 78 7.5 L Engine, Ford: E-350 Econoline 75 - 78 7.5 L Engine, Ford: E-350 Econoline Club Wagon 77 - 78 7.5 L Engine
• Ford: F-100 73 - 74 7.5 L Engine, Ford: F-150 75 - 78 7.5 L Engine, Ford: F-250 73 - 78 7.5 L Engine, Ford: F-350 73 - 78 7.5 L Engine, Ford: Falcon 70 - 70 7 L Engine
• Ford: Galaxie 500 69 - 73 7 L Engine, Ford: Galaxie 500 72 - 73 7.5 L Engine, Ford: LTD 69 - 73 7 L Engine, Ford: LTD 72 - 73 7.5 L Engine, Ford: Mustang 69 - 71 7 L Engine
• Ford: Ranchero 70 - 71 7 L Engine, Ford: Ranchero 75 - 77 7.5 L Engine, Ford: Torino 70 - 73 7 L Engine, Ford: Torino 73 - 74 7.5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753675040
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counterweight Assist: Yes
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 11.000
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.375
• Input Spline Quantity: 10
• Make: Ford
• Notes: SPECIAL ORDER made to order item. They come with a lead time of 4-6 weeks.
• Pilot Bushing Included: No
• Pressure Plate Style: Long
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 176-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 75 POUNDS
