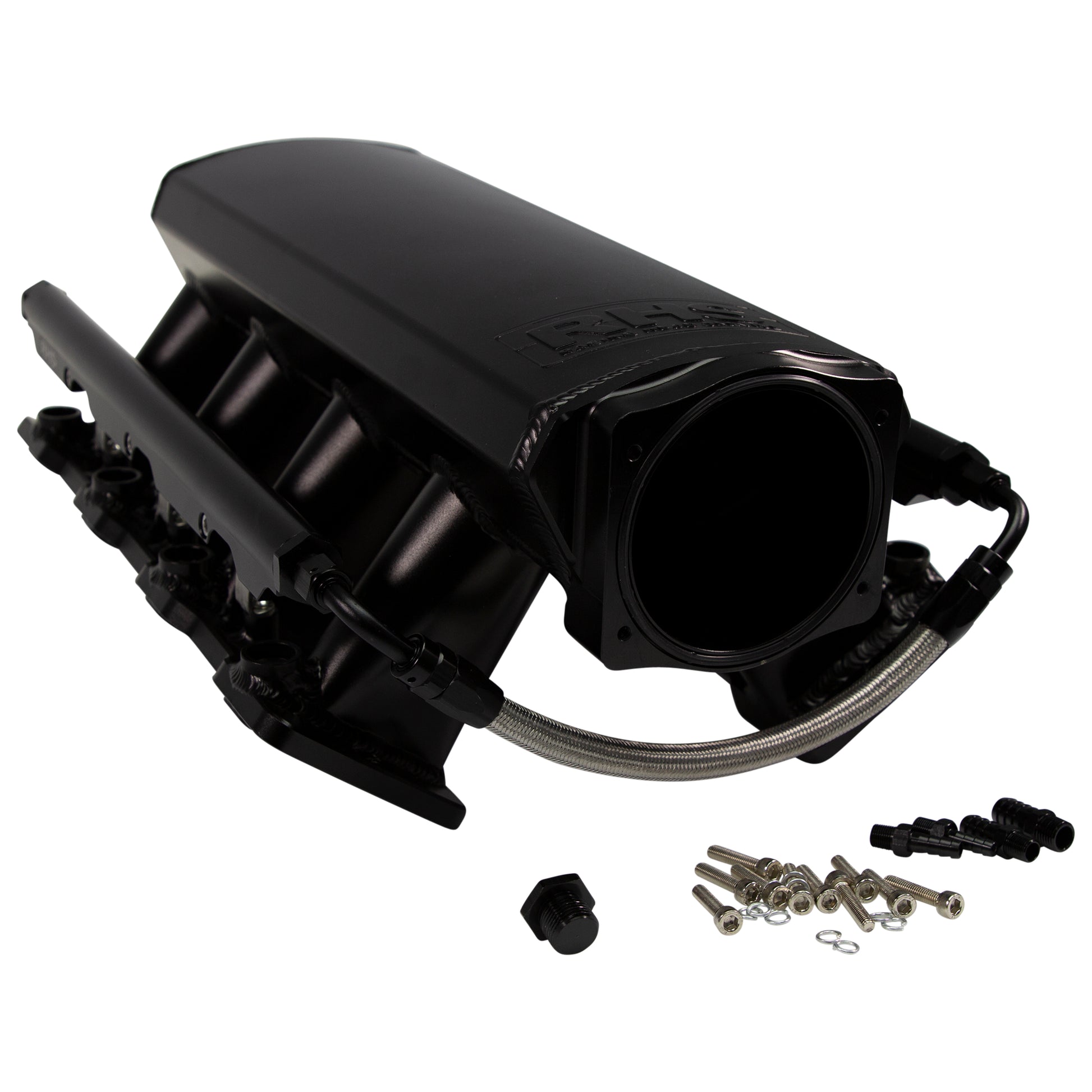

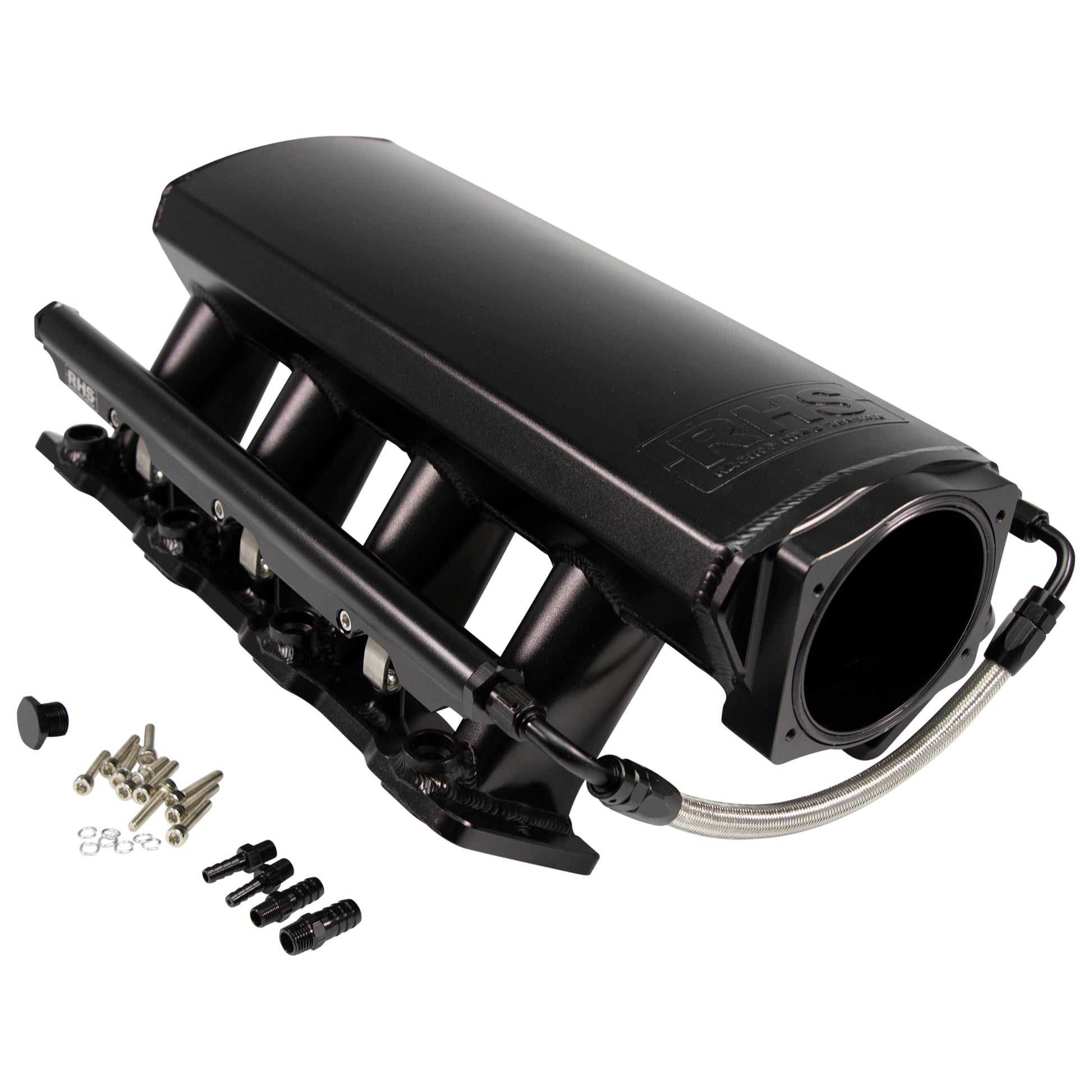

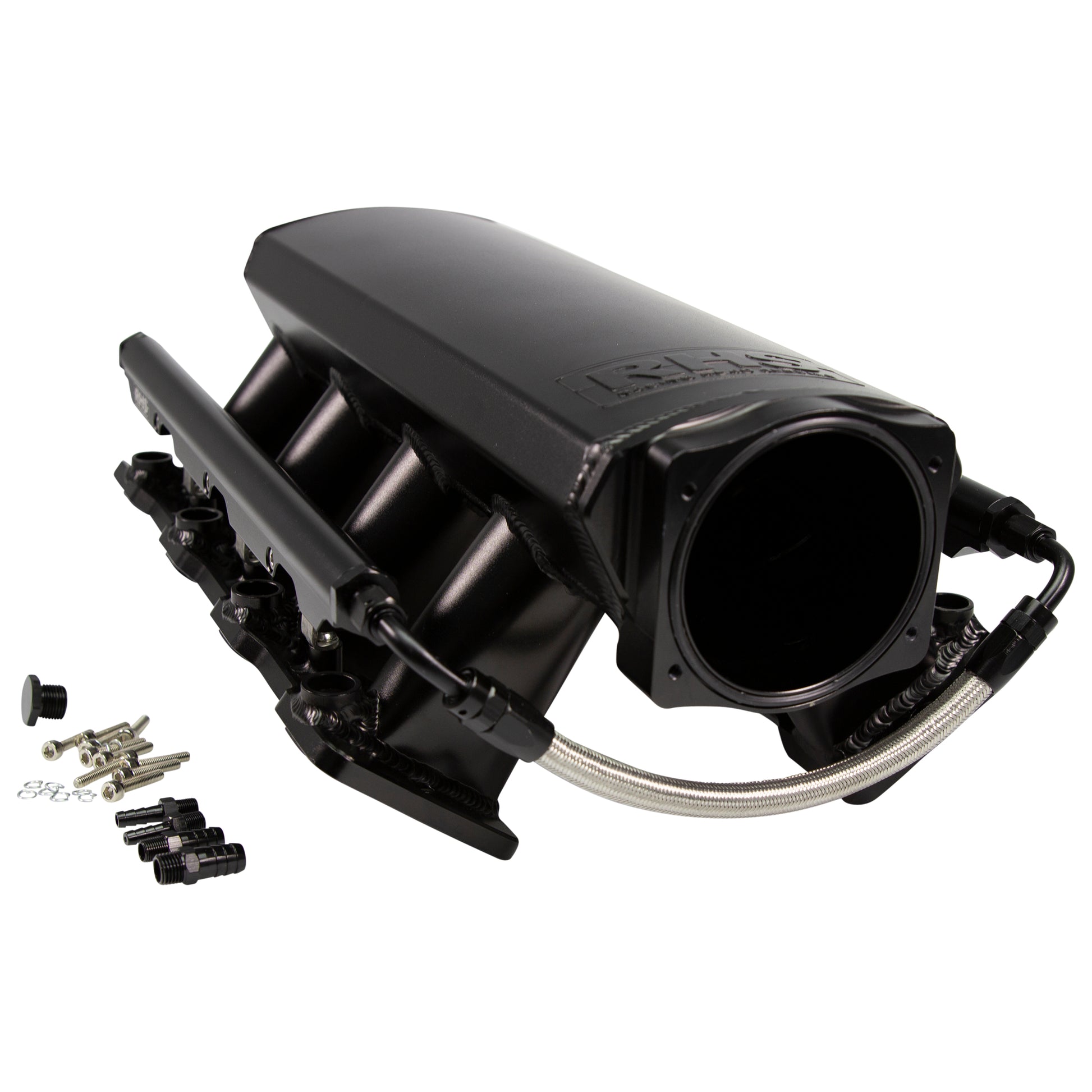

Sheet Metal LS1/Cathedral Port Intake Manifold W/ Fuel Rail Kit

The RHS Sheet Metal Intake features a black anodized textured finish for a unique high-end appearance. Scalloped fuel rails (included) further set this intake apart. The RHS Sheet Metal Manifold doesn't just look good, it helps your engine achieve its peak potential, whether you're building a high RPM screamer or a boosted powerhouse. Vehicle Specific

• Cathedral Port LS1/LS2/LS6 Car and Truck Engines

Attributes:

• Brand Name: FAST
• GTIN: 00036584403876
• Boost Capable?: Yes
• CNC Ported: No
• Center Maximum Height: 8.267
• Color: Textured Black Anodize
• Compatible with FAST Big Mouth Throttle Bodies?: Yes
• Compatible with FAST Modular Runner System?: No
• EGR Provision?: No
• Engine Family/Fitment: GM LS Gen III/IV Cathedral Port
• Front Maximum Height: 8.267
• Fuel Injector Pocket ID: 0.54
• Fuel Rail Mounting Thread: M6
• Includes Fuel Injectors?: No
• Includes Fuel Rail Mounting Brackets?: Yes
• Includes Fuel Rails?: Yes
• Includes Intake to Engine Mounting Hardware?: Yes
• Intake Port Fitment: Cathedral (LS1)
• Intake Port Seals Included?: Yes
• Intake Style: Fabricated Sheet Metal
• Material: Aluminum
• Maximum Recommended Boost Pressure: 45
• New or Remanufactured: New
• Nitrous Bungs?: No
• RPM Operating Range: 2500-7500
• Rear Maximum Height: 8.267
• Recommended Fuel Injector O-Ring O.D.: 0.574
• Recommended Fuel Injector Profile: EV1/EV6 (LS1/LS6 or LS2)
• Removable Intake Runners?: No
• Throttle Body Mounting Hole Bolt Attachment Number: 4
• Throttle Body Mounting Hole Inside Diameter: 102
• Throttle Body Mounting Hole Outer Diameter: 115.6
• Upper to Lower Intake Seals Included?: N/A

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27.75 x 16.5 x 9.75 inches
• Weight: 23 POUNDS
