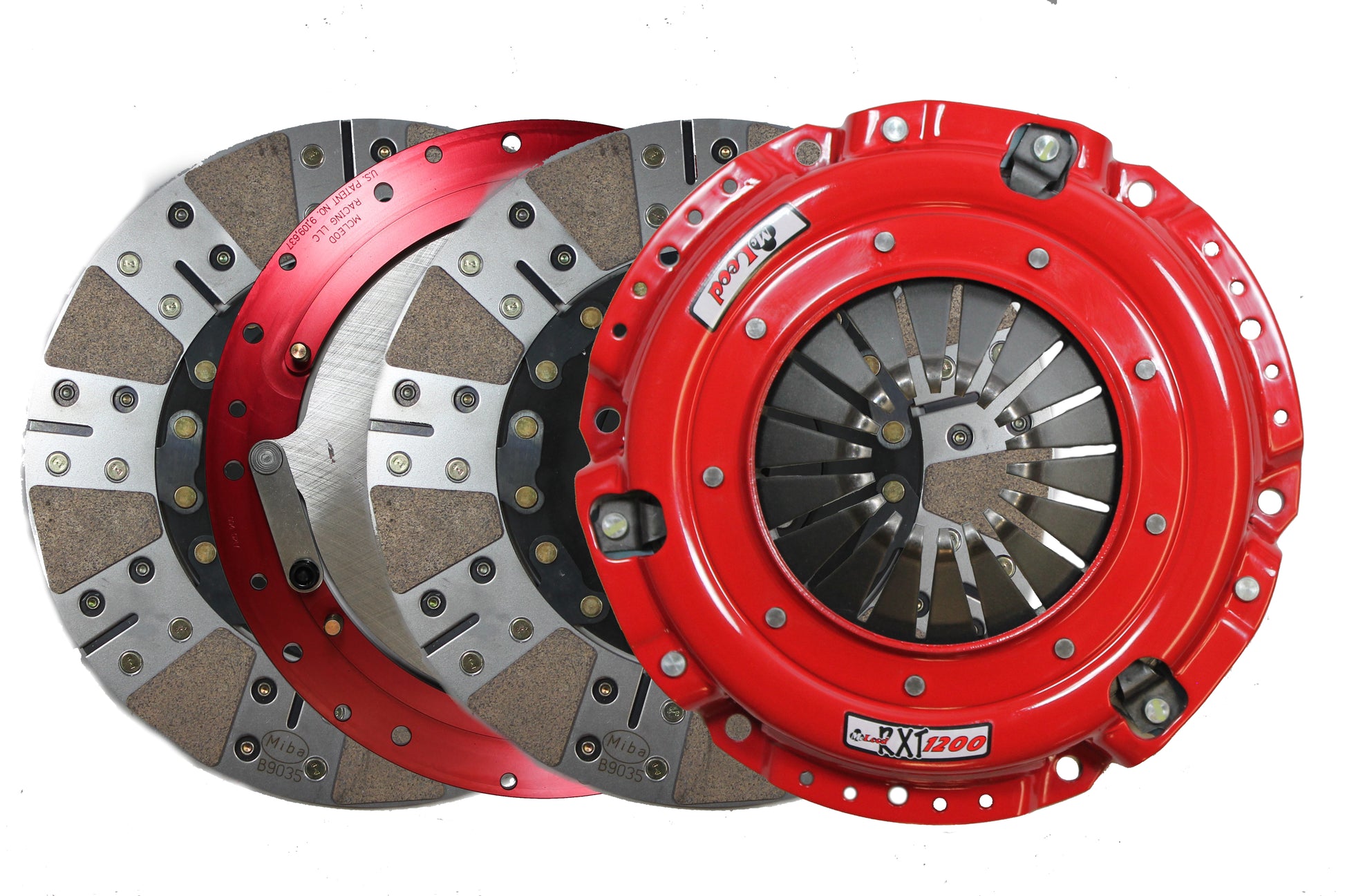

McLeod RXT 1100HP Twin Disc Clutch Kits

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1100hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

• • Lighter than Stock Pedal Feel. • Metallic Facings for Increased Holding Power. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.

Vehicle Specific

• Ford: Custom 64 - 72 7 L Engine, Ford: Custom 500 73 - 73 7 L Engine, Ford: Fairlane 64 - 69 7 L Engine, Ford: Falcon 70 - 70 7 L Engine, Ford: GT40 66 - 69 7 L Engine
• Ford: Galaxie 64 - 67 7 L Engine, Ford: Galaxie 500 68 - 73 7 L Engine, Ford: LTD 66 - 73 7 L Engine, Ford: Mustang 68 - 71 7 L Engine, Ford: Ranchero 68 - 71 7 L Engine
• Ford: Torino 68 - 73 7 L Engine, Mercury: Comet 64 - 69 7 L Engine, Mercury: Commuter 65 - 68 7 L Engine, Mercury: Cougar 68 - 71 7 L Engine, Mercury: Cyclone 64 - 71 7 L Engine
• Mercury: Marauder 69 - 70 7 L Engine, Mercury: Marquis 67 - 71 7 L Engine, Mercury: Montclair 64 - 68 7 L Engine, Mercury: Montego 68 - 73 7 L Engine, Mercury: Monterey 64 - 73 7 L Engine
• Mercury: Park Lane 64 - 68 7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753315441
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Patterns: 11/12" B&B; 11" Long; 11.5/12" Long
• Clutch Usage: Performance
• Disc Diameter (in.): 9.688
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Fitment: For use with Large Diameter Flywheel
• Flywheel Included: No
• Hardware Included: Yes
• Horsepower Rating: 1100
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.375
• Input Spline Quantity: 10
• Make: GM, Ford, Mopar
• Notes: Must use internal Hydraulic Bearing with this application.
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17 x 16 x 5 inches
• Weight: 26 POUNDS

PDF:
