McLeod RXT HD 1300HP Twin Disc Clutch Kits

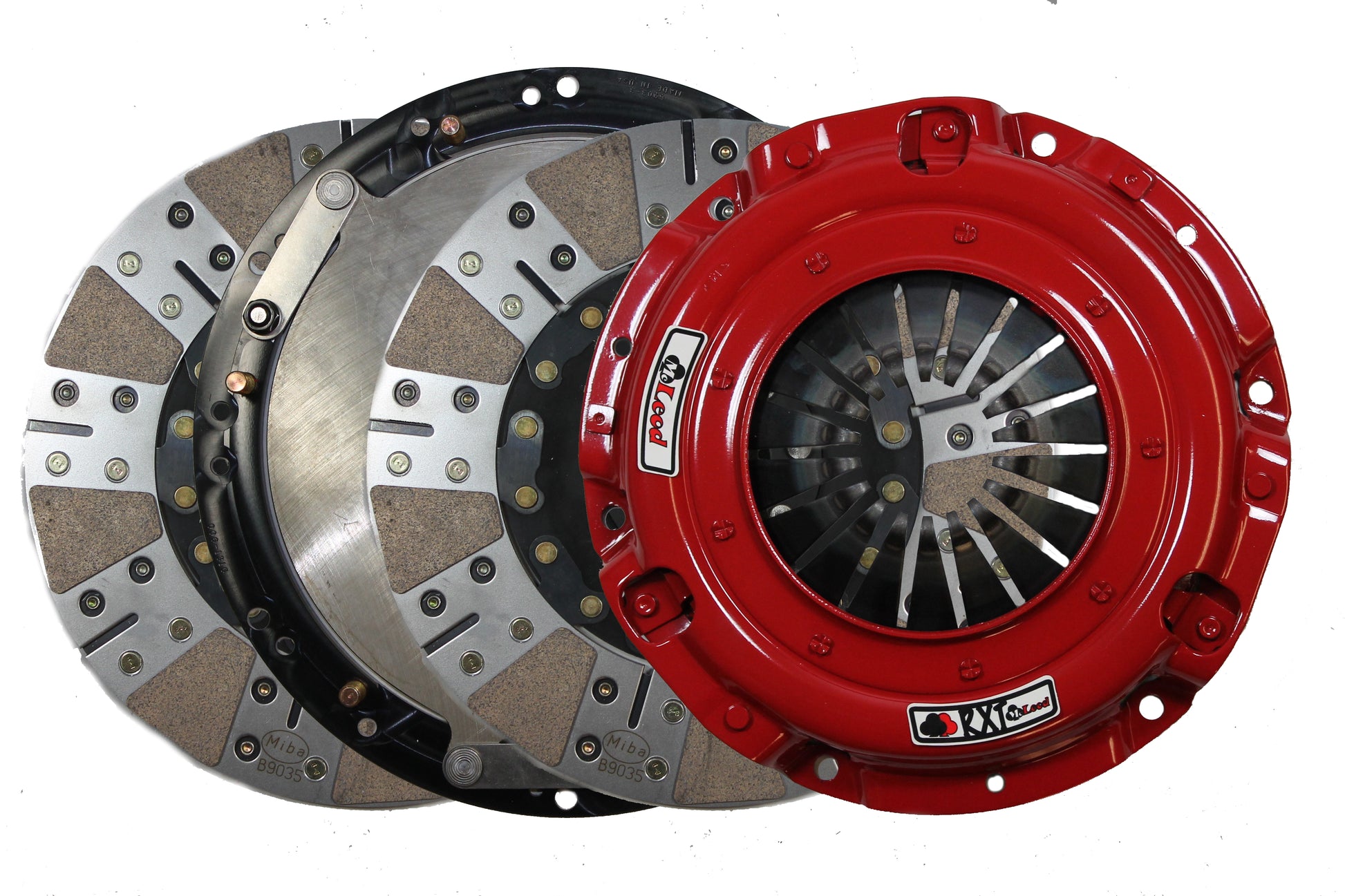

McLeod RXT HD – Rated up to 1300 HP, this twin disc clutch is Intended for the high horsepower street/strip fan. This clutch can handle serious horsepower and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT HD is what you’ll need! This series of clutches comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

• • Metallic Facings for Increased Holding Power. • Higher Clamp Load Pressure Plate. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.

Vehicle Specific

• Chrysler: 300 63 - 63 7 L Engine, Chrysler: Newport 63 - 63 7 L Engine, Dodge: 880 64 - 65 7 L Engine, Dodge: Challenger 70 - 71 7 L Engine, Dodge: Charger 66 - 71 7 L Engine
• Dodge: Coronet 65 - 71 7 L Engine, Dodge: Monaco 65 - 65 7 L Engine, Dodge: Polara 63 - 65 7 L Engine, Plymouth: Barracuda 68 - 71 7 L Engine, Plymouth: Belvedere 63 - 69 7 L Engine
• Plymouth: Cuda 70 - 71 7 L Engine, Plymouth: Fury 63 - 66 7 L Engine, Plymouth: GTX 68 - 71 7 L Engine, Plymouth: Road Runner 68 - 71 7 L Engine, Plymouth: Satellite 65 - 67 7 L Engine
• Plymouth: Savoy 63 - 64 7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753019097
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Patterns: 10.5" Mustang Diaphragm; 10.5" Borg & Beck; 10/10.5" Long Pattern
• Clutch Usage: Performance
• Disc Diameter (in.): 9.688
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Fitment: For use with Small Diameter Flywheel
• Flywheel Included: No
• Hardware Included: Yes
• Horsepower Rating: 1300
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.188
• Input Spline Quantity: 18
• Make: Mopar
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 23 POUNDS
