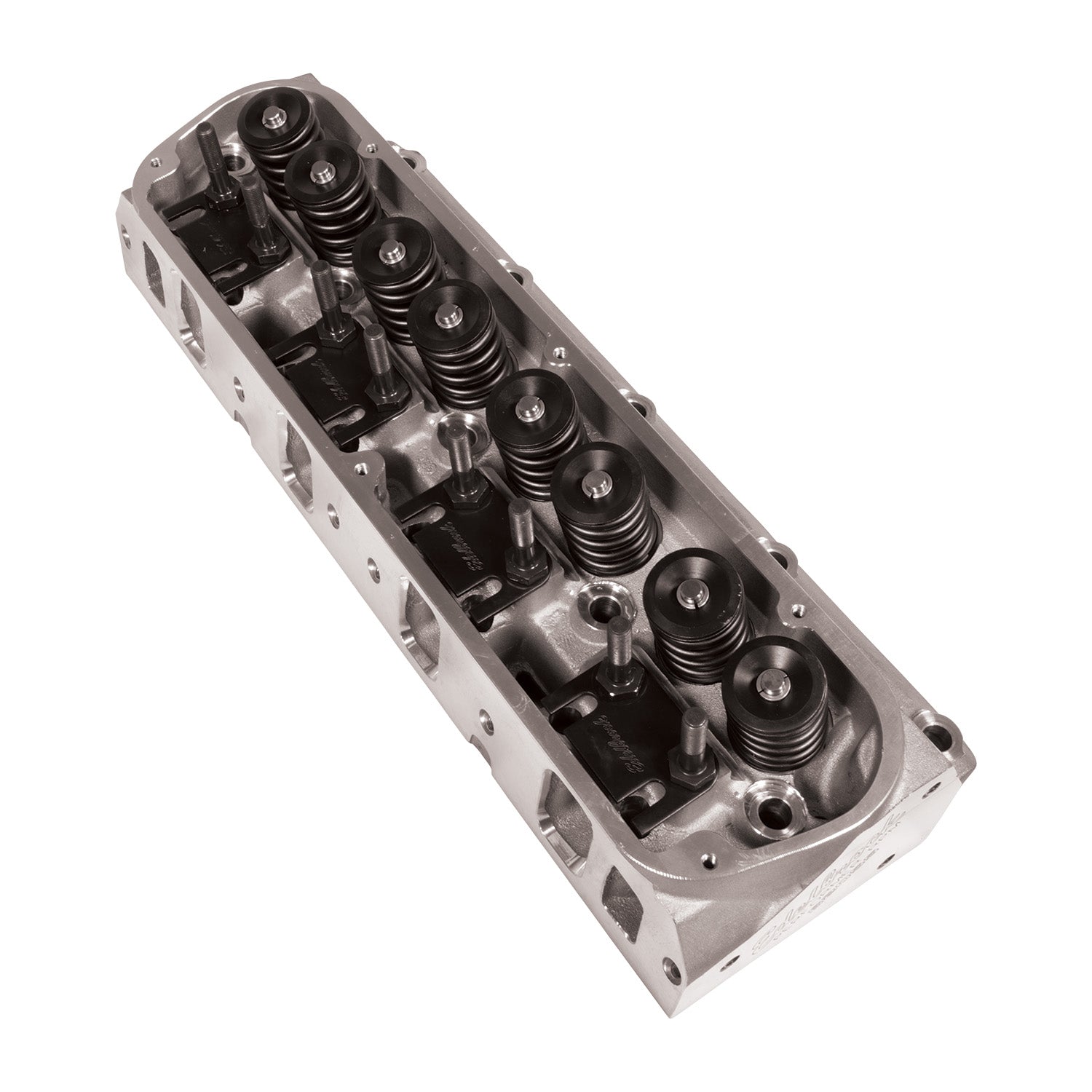

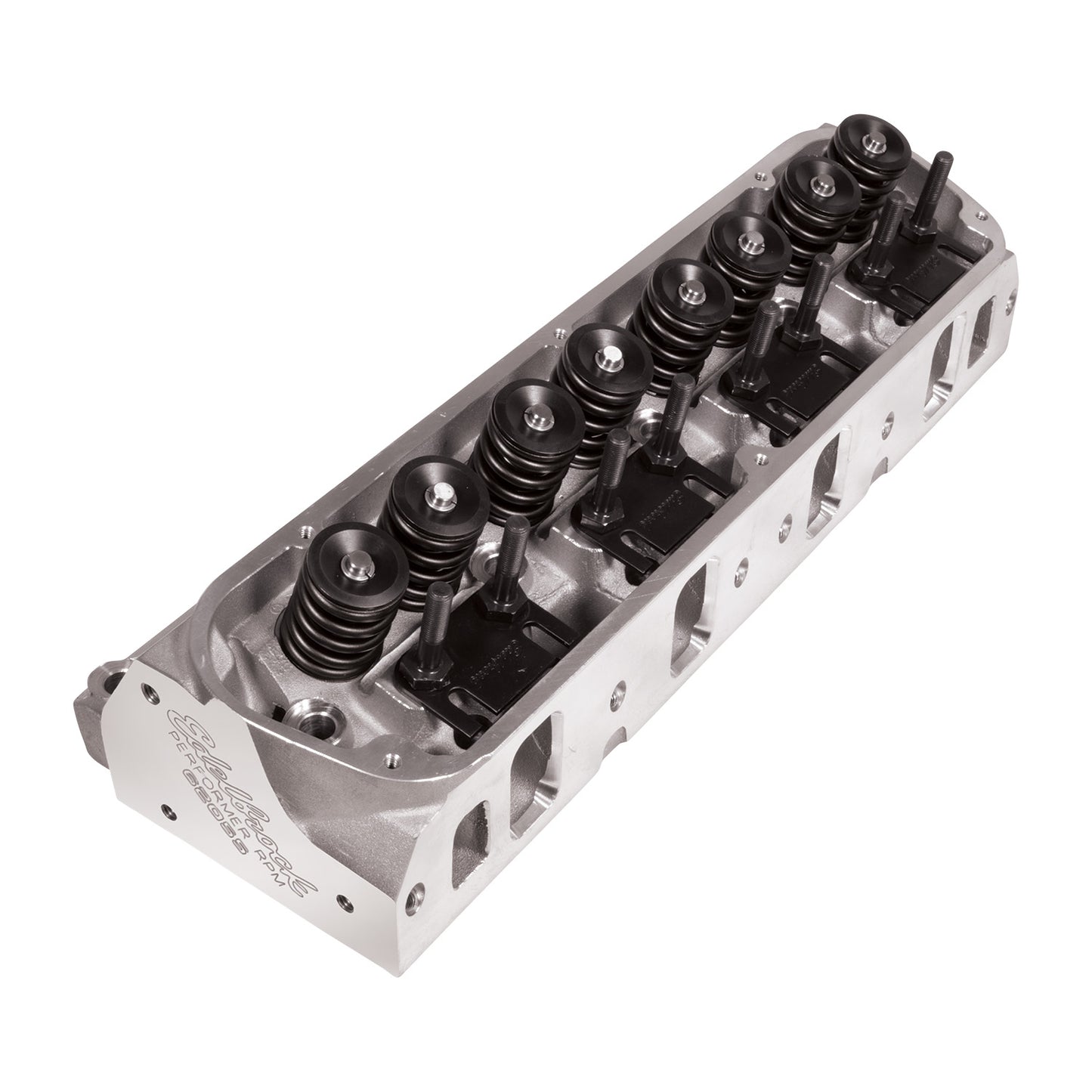

RPM Small-Block Ford 2.08" 205cc Cyl Head Hydraulic Roller

Edelbrock introduces the new Performer RPM 205 cc Cylinder Heads for Gen I Small-Block Ford engines. Designed as the ideal next-step upgrade from Edelbrock’s Performer series, these premium cylinder heads offer increased airflow, exceptional quality, and compatibility with a wide range of performance components. Manufactured in Edelbrock’s ISO-certified facility in San Jacinto, California, each cylinder head is machined to exacting tolerances to ensure superior performance and reliability. With larger 205 cc intake ports than comparable Performer RPM heads, these heads are specifically engineered for applications that demand increased performance while maintaining compatibility with off-the-shelf parts. They are suitable for any 289, 302, or 351W engine that does not require meeting emission standards, making them a perfect choice for street and strip builds. Each Performer RPM 205 cc cylinder head is fully assembled with high-quality valvetrain components, including stainless steel one-piece swirl-polished intake and exhaust valves with undercut stems for increased flow, 2-ring positive oil control seals, 3/8" rocker arm studs with 5/16" guide plates, hardened steel valve spring locators, and Edelbrock Sure-Seat valve springs, retainers, and keepers. Edelbrock’s patented Clean-Cast™ Technology eliminates internal casting flaws, producing smoother internal surfaces to improve airflow and coolant flow. This advanced manufacturing process yields greater power potential and enhanced cooling performance right out of the box. Engineered for high-performance builds, the Performer RPM 205 cc Cylinder Heads deliver exceptional value and power gains for enthusiasts building or upgrading Small Block Ford engines.

• 205cc intake ports for more airflow over OEM designs
• Larger valve spring for better valve control and higher lift camshafts
• OEM intake and exhaust port locations for maximum OEM and aftermarket manifolds and accessories

Vehicle Specific

• Ford 289, 302, 351W
• Ford Windsor Engine Platform

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347899654
• CNC Machined Exhaust Port: No
• CNC Machined Intake Port: No
• CNC-Machined Combustion Chamber: No
• CNC-Machined Exhaust Runner: No
• CNC-Machined Intake Runner: No
• Combustion Chamber Volume: 60
• Cylinder Head Style: Assembled
• Exhaust Port Location: Standard
• Exhaust Port Shape: Square
• Exhaust Runner Volume: 62
• Exhaust Valve Angle: 20
• Exhaust Valve Diameter: 1.6
• Exhaust Valve Job Diameter: 1.6
• Exhaust Valve Stem Diameter: 0.3438
• Guide Plates Included: Yes
• Guide plate Pushrod Size: 5/16
• Intake Port Location: Standard
• Intake Port Shape: Rectangle
• Intake Runner Volume: 205
• Intake Valve Angle: 20
• Intake Valve Diameter: 2.08
• Intake Valve Job Diameter: 2.08
• Intake Valve Stem Diameter: 0.3438
• Material: Aluminum
• Quantity: Single
• Related Products: 7181-Performer RPM Small Block Ford Intake Manifold 7227-Exhaust Manifold Gasket Set for Ford 7560-Valve Cover Gasket Set for Ford 1076-Edelbrock high quality RTV silicone 3 oz OE silicone gaskets 85522 - Bolt Kit
• Required Products: 7220-Intake Manifold Gasket for Hardened pushrods required. Will not accept rail rockers. 289-302 V8's require head bolt bushings 9680 and either head bolt kit 85522 (7/16") or stock head bolts; 1963-1996 Small-Block Fords 9680-Ford 5.0L Head Bolt Bushings 7313-Cylinder Head Gasket Set for Ford
• Retainer Diameter: 1.46
• Retainer Lock Style: 7
• Retainer Material: Steel
• Rocker Arm Studs/Bolts Included: Yes
• Spark Plug Style: OEM
• Special Notes: Hardened pushrods required. Will not accept rail rockers. 289-302 V8's require head bolt bushings 9680 and either head bolt kit 85522 (7/16") or stock head bolts.
• Steam Holes Drilled: No
• Valve Cover Mounting Style: Perimeter bolt
• Valve Guide I.D: 11/32
• Valve Guide Material: Manganese Bronze
• Valve Guide Size O.D: 0.5
• Valve Lock Material: Steel
• Valve Lock Style: 7
• Valve Locks Included: Yes
• Valve Spring Diameter: 1.46
• Valve Spring Maximum Lift: 0.650
• Valve Spring Type: Dual
• Valve Springs Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 11 x 9 inches
• Weight: 35.4 POUNDS
