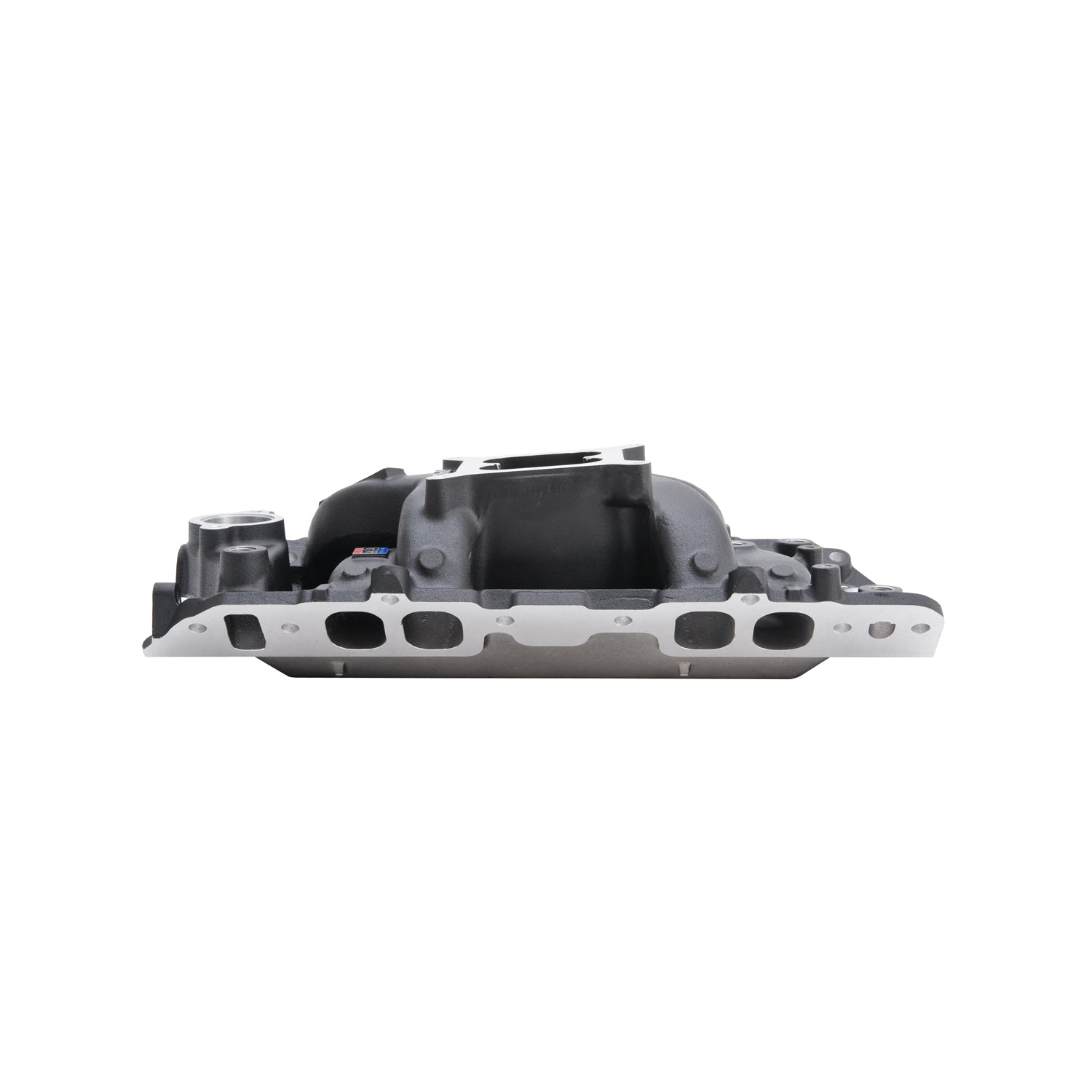

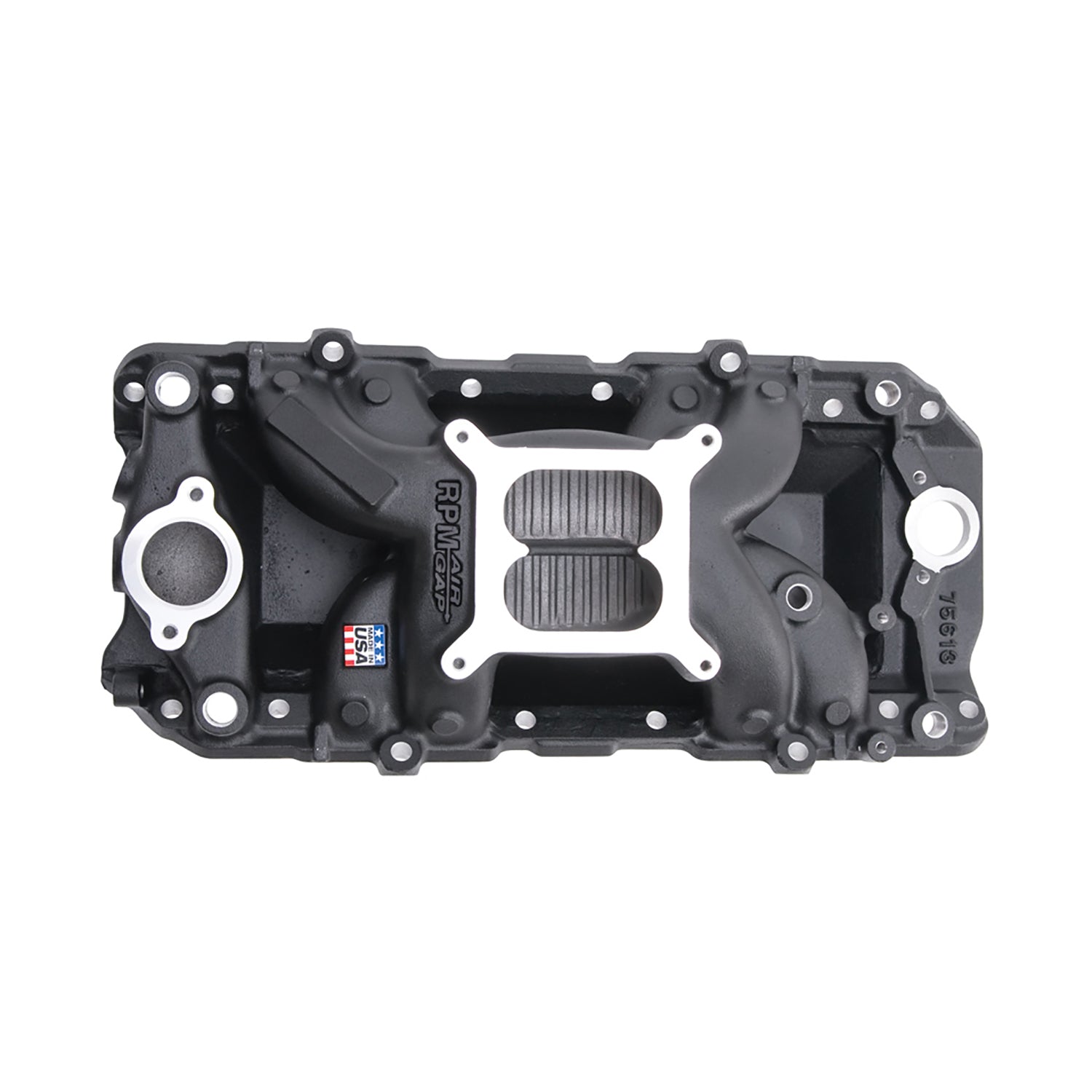

RPM Air-Gap Big Block Chevy 2-O Black Intake Manifold

Edelbrock part #75613 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. Vehicle Specific

• Chevrolet:Big-Block:396 (6.5L)-502 (8.2L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347756131
• Basic Operating RPM Range: 1500-6500
• CNC Ported: No
• Center Maximum Height: 5.220
• EGR Port: No
• Finish: Black Powder Coated
• Flange Type: 4150
• Front Maximum Height: 4.450
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 6.000
• Series: RPM Air-Gap
• Single Or Dual Plane Type: Dual
• Vehicle Model: Chevrolet

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.625 x 14.75 x 7.5 inches
• Weight: 22.5 POUNDS
