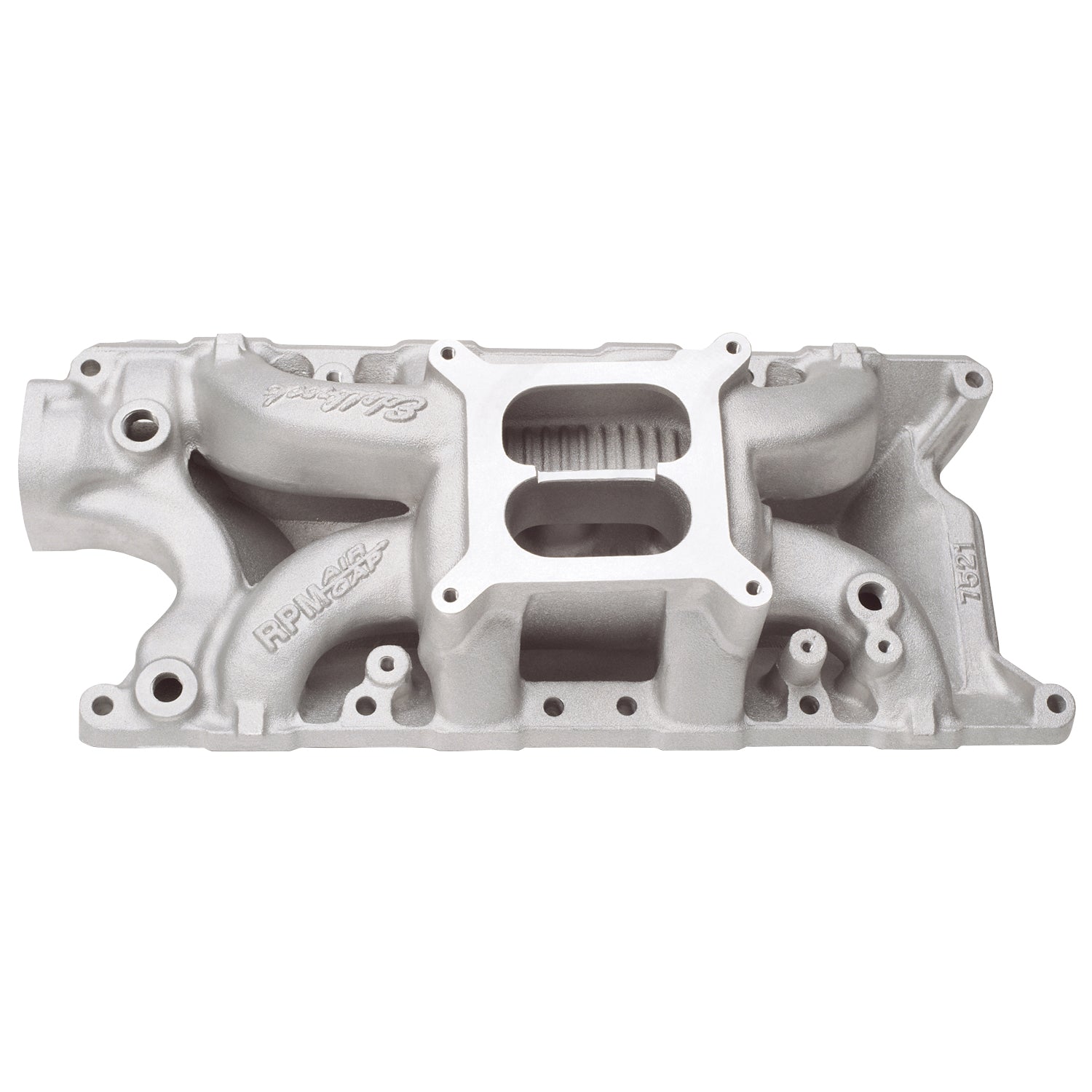

RPM Air-Gap #7521 Intake Manifold For Small-Block Ford 302-331-347 V8

Edelbrock Part #7521 RPM Air-Gap intake manifold is designed for the small-block 302 CID Ford V8 or 331-347 stroker applications. The RPM Air-Gap incorporates the same race-winning technology that?s been used on our Victor Series competition intakes and is the perfect manifold for hot rodders, street machine enthusiasts, bracket racers or any builder looking for optimum performance in the 1,500-6,500 RPM range with a serious look of horsepower under the hood. The Air-Gap design features an open air space under the plenum that separates the runners from the hot engine resulting in a cooler, denser charge for more power. The 7521 RPM Air-Gap features larger runners (7% at the plenum entries) than the standard 7121 Performer RPM design that is beneficial to larger CID stroker engines. The 7521 includes nitrous bosses but no provision for exhaust heated chokes and no exhaust crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000. For more info go to www.lokar.com.

• RPM Air-Gap for 302-331-347 Small-Block Ford V8

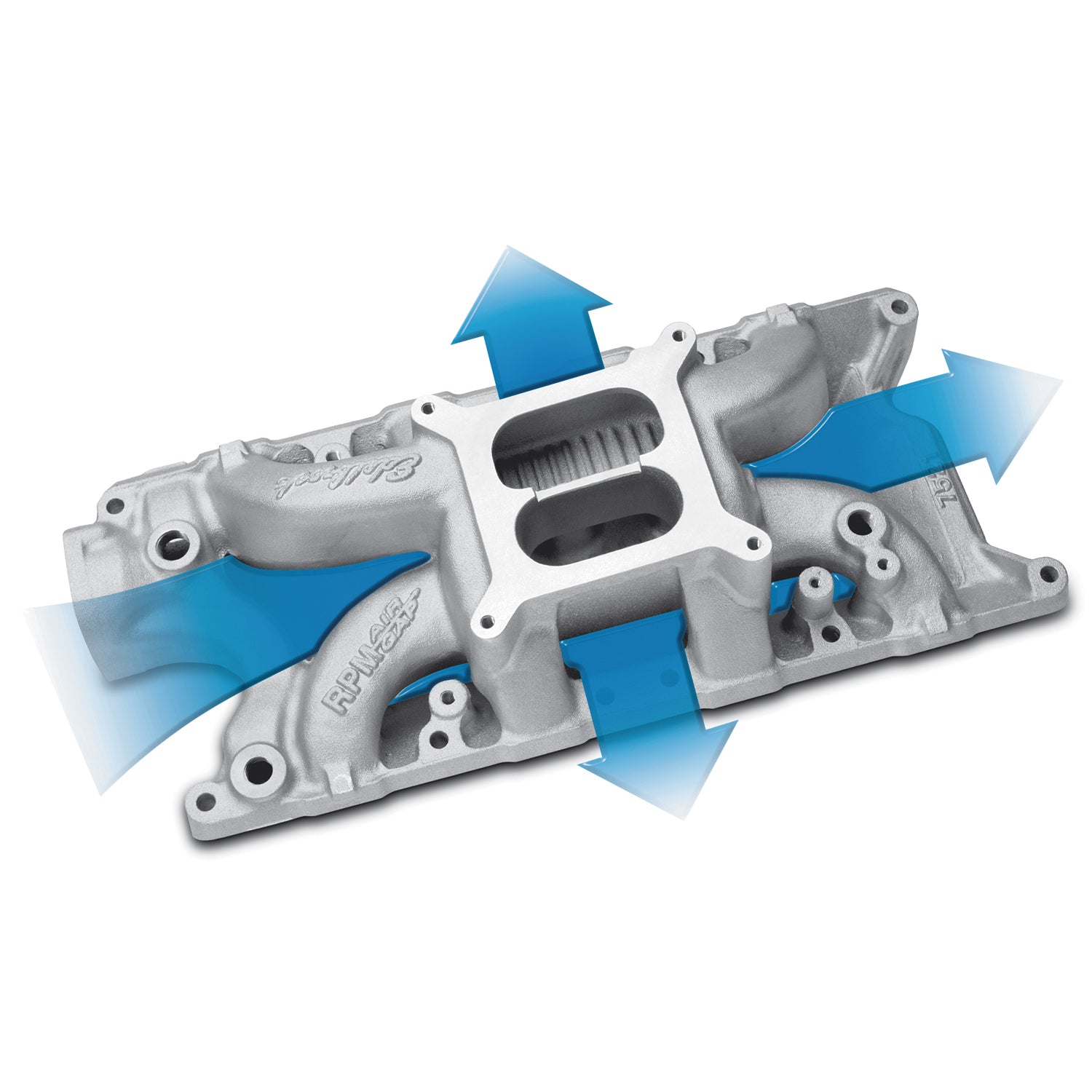

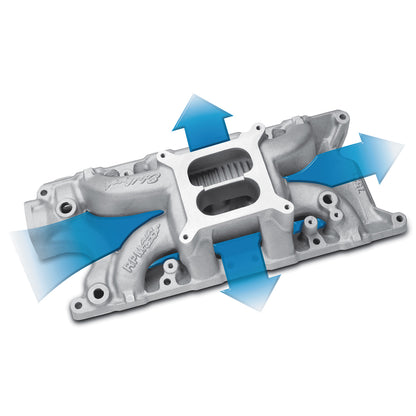

• Air-Gap design features an open air space under the plenum
• Separates fuel and air from engine heat
• Larger runners over standard 7121 manifold
• Includes nitrous bosses

Vehicle Specific

• Ford:Small-Block:289 (4.7L)-302 (5.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347075218
• Basic Operating RPM Range: 1500-6500
• CNC Ported: No
• Center Maximum Height: 4.900
• EGR Port: No
• Finish: Satin
• Flange Type: 4150
• Front Maximum Height: 4.300
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 5.500
• Series: RPM Air-Gap
• Single Or Dual Plane Type: Dual
• Vehicle Model: Ford

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.625 x 14.75 x 7.5 inches
• Weight: 20.25 POUNDS
