Rear Upper Adjustable Shock Mount

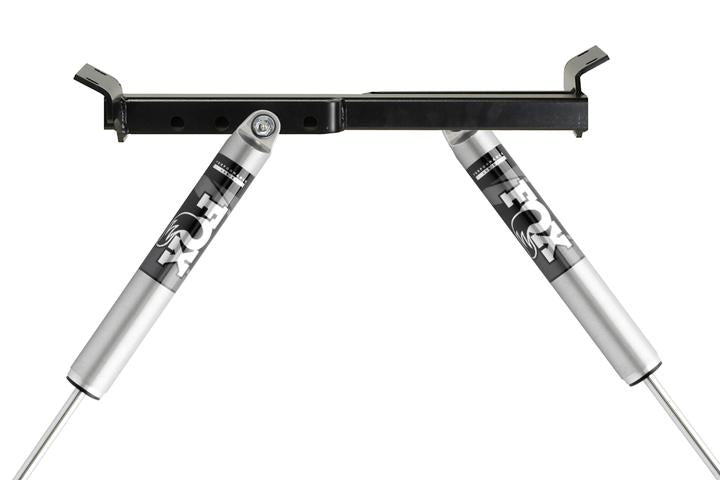

Install long-travel shock absorbers on your Jeep Cherokee XJ with this rear upper shock crossmember. The adjustable, heavy-duty design features four shock mounting positions per side. This makes it easier to source long travel shocks and fine tune shock angle. Can be bolted on or welded in place. The rear suspension on Cherokee XJ models is capable of providing exceptional axle articulation when properly modified. Includes upper shock mounting studs. Powder coated finish. Requires modifications to exhaust system. Requires new shock absorbers unless installed in conjunction with Rear Axle Shock Mount [JKS PN: OGS922].

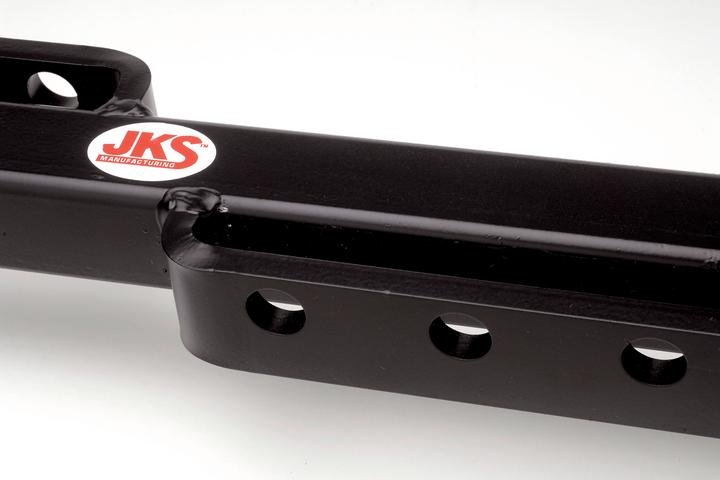

• Heavy duty crossmember-type shock mount provides multiple damping rates from a single shock absorber
• Four shock mounting options enable optimization of performance and travel for each application
• Angled shock position produces cantilever effect for greater travel, while mechanical advantage improves ride quality with firm valved shocks
• Heavy duty shock mounting studs eliminate factory bar pin design for improved bushing longevity and reduced noise
• New mounting location increases selection of compatible shock absorbers and improves access for painless adjustments
• Utilizes existing shock absorbers if Rear Axle Shock Mount [JKS PN: OGS922] is installed at same time

Attributes:

• Brand Name: JKS
• GTIN: 00814897010710

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.0000 x 6.5000 x 6.5000 inches
• Weight: 12.0000 POUNDS
