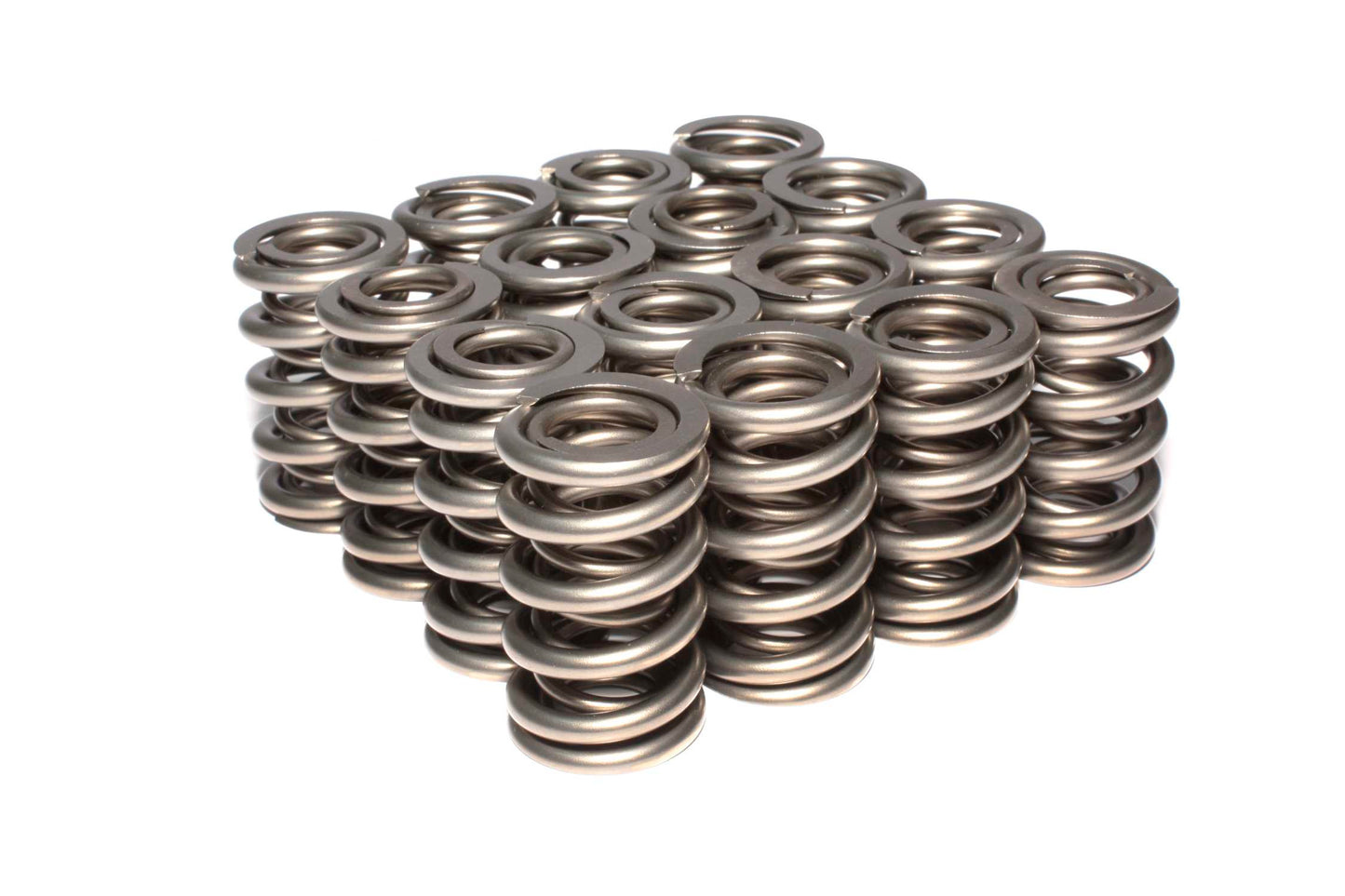

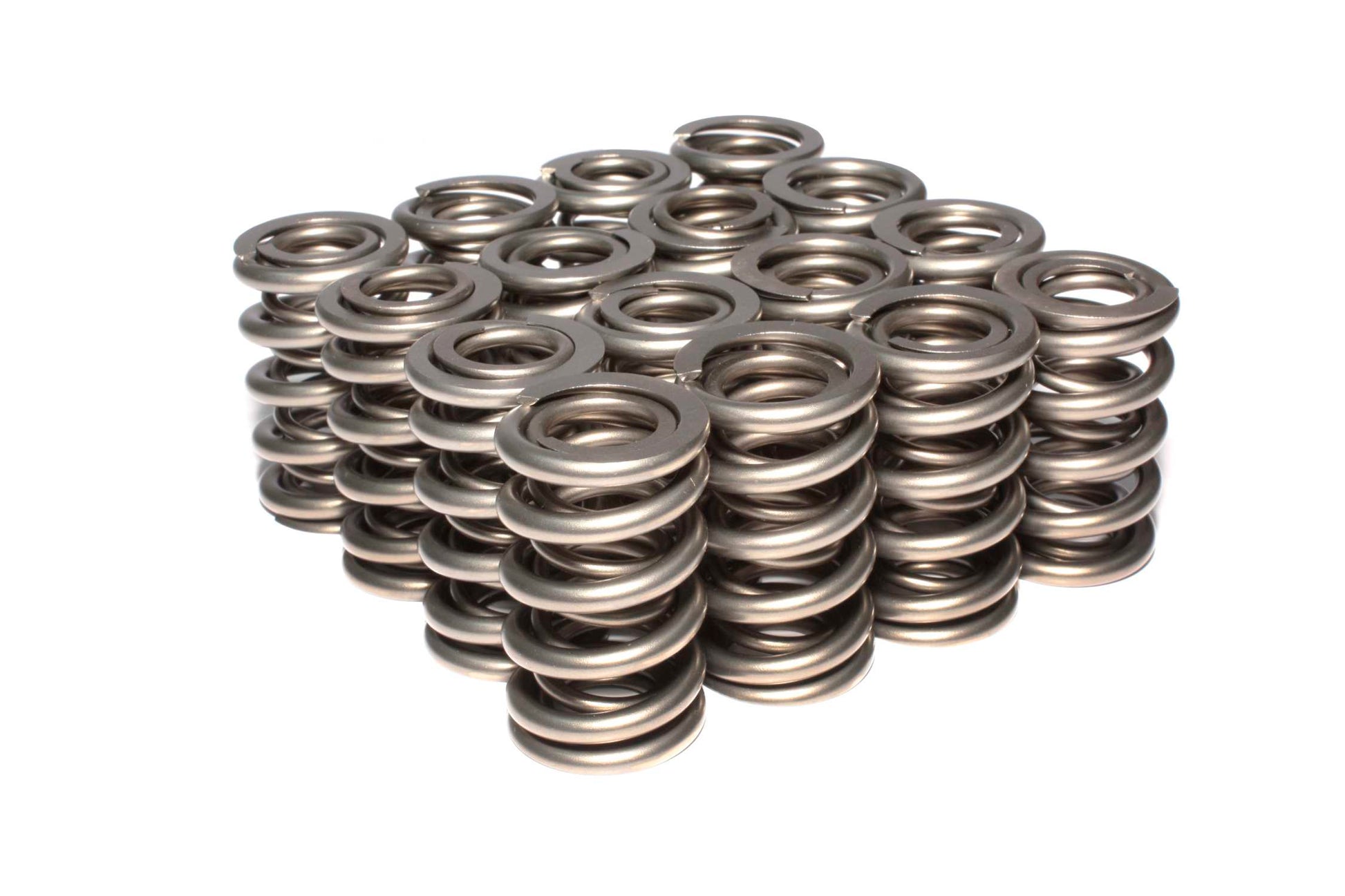

Race Street 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584200918
• Amazon ASIN: B003HGQURG
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• Coil Bind Height: 1.1
• Compatible .570" Guide Diameter Spring Seats: 4731-16
• Compatible Retainer: 779-16
• Compatible Shims: 4753
• Compatible Spring Cup (O.D. Locator): 4709-16
• Damper: No
• Inner Spring Inside Diameter: 0.654
• Number of Springs: 2
• Outer Spring Inside Diameter: 0.92
• Outer Spring Outside Diameter: 1.32
• Seat Height: 1.835
• Seat Pressure: 129
• Spring Rate: 505
• Valve Spring Series: Race/Street

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 10.3 x 2.9 x 2.2 inches
• Weight: 3.7479 POUNDS
