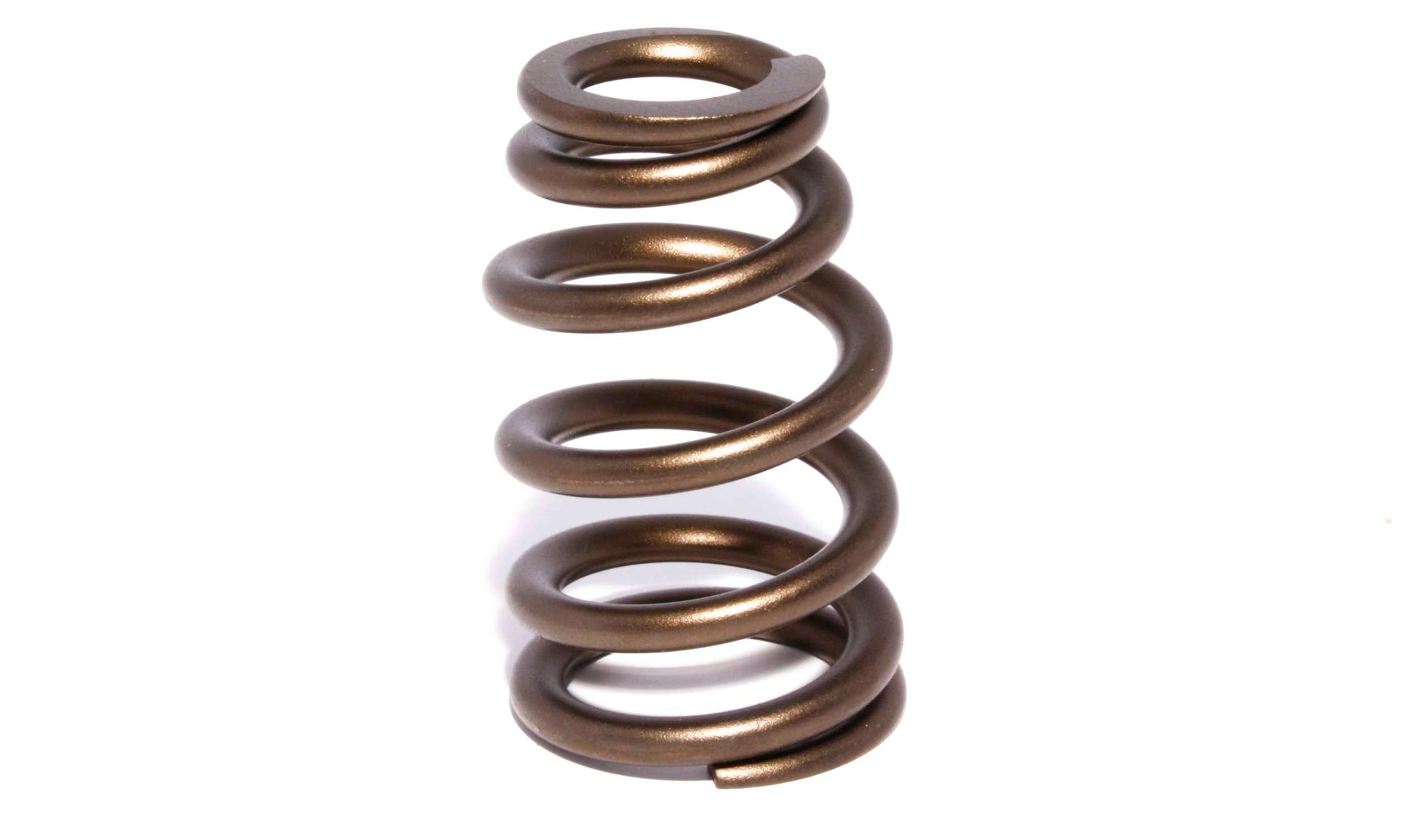

Race Sportsman 1.585" OD Beehive Spring; 1.925" Installed Height; 1 Spring

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584132141
• Amazon ASIN: B001GBO8BY
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• Coil Bind Height: 1.225
• Compatible .570" Guide Diameter Spring Seat: 4640-1
• Compatible .630" Guide Diameter Spring Seat: 4697-1
• Compatible Retainer: 785-1
• Compatible Shims: 4757
• Compatible Spring Cup (O.D. Locator): 4702-1
• Damper: No
• Number of Springs: 1
• Outer Bottom Spring Inside Diameter: 1.102
• Outer Bottom Spring Outside Diameter: 1.585
• Outer Top Spring Inside Diameter: 0.721
• Outer Top Spring Outside Diameter: 1.204
• Seat Height: 1.925
• Seat Pressure: 150
• Spring Rate: 400
• Valve Spring Series: Race Sportsman

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 1.1 inches
• Weight: 0.25 POUNDS
