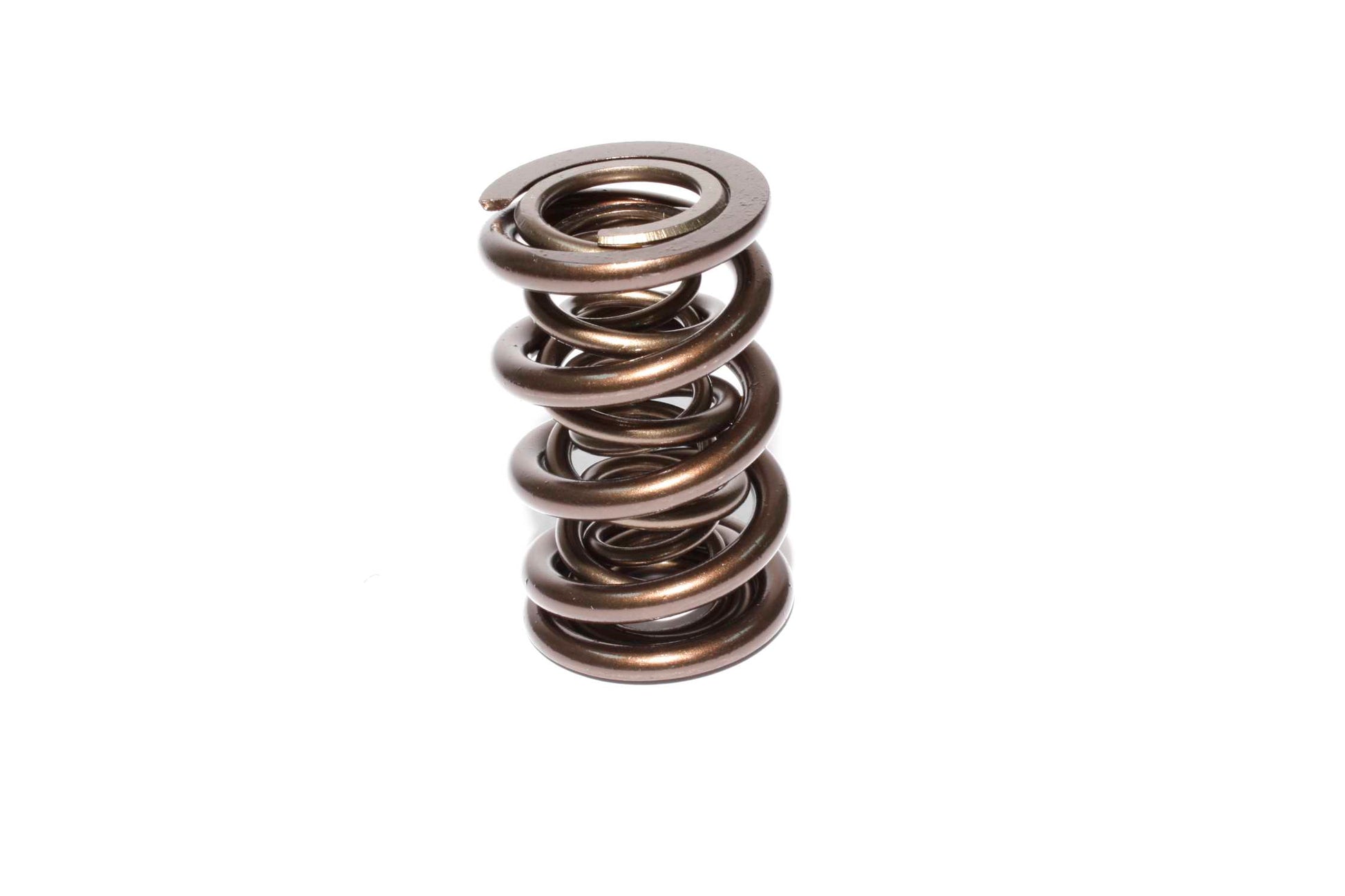

Race Extreme 1.683" OD Triple Spring; 2.100" Installed Height; 1 Spring

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584071259
• Amazon ASIN: B001GBVJFC
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• Coil Bind Height: 1.13
• Compatible .570" Guide Diameter Spring Seats: 4786-1
• Compatible Retainer: 799-1
• Compatible Shims: 4756
• Compatible Spring Cup (O.D. Locator): 4708-1
• Damper: No
• Inner Spring Inside Diameter: 0.863/0.627
• Number of Springs: 3
• Outer Spring Inside Diameter: 1.196
• Outer Spring Outside Diameter: 1.683
• Seat Height: 2.1
• Seat Pressure: 382
• Spring Rate: 761
• Valve Spring Series: Race Extreme

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 1.4 inches
• Weight: 0.4 POUNDS
