QA1 Suspension Subframe 5282

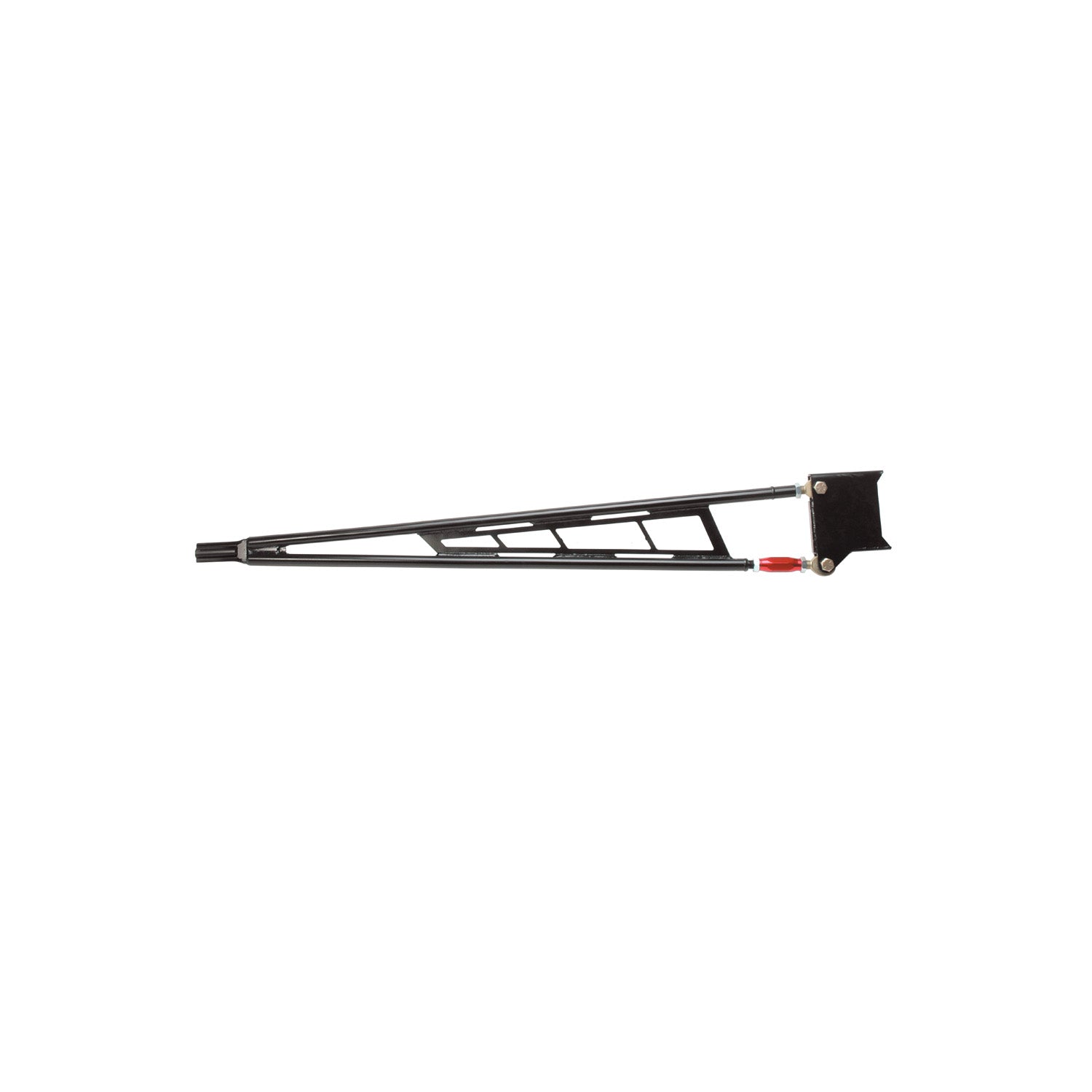

QA1's Torque Arms feature strong tubular construction and a graphite/polyurethane front bushing to reduce wheel-hop caused by excessive flex under hard accelerations and cornering. Adjustable Torque Arms are built from 1" x .120" wall tubing. They feature 3/4" spherical rod ends, allowing easy pinion angle adjustment. Powder coated black for durability with grade 8 bolts. Made in the USA. Fits vehicles with GM corporate 10-bolt rear ends in which front locator of stock torque arms has lips facing away from driveshaft. Can be used on 1982-83 Camaro/Firebird with 1984 or newer mount.

• Strong 1in. X .120in wall tubular construction
• Poly/graphite front bushing
• Easy pinion angle adjustment
• Made in the USA

Attributes:

• Brand Name: QA1
• GTIN: 00806990064714
• Manufacturer Part Number: 5282
• UPC: 806990064714

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 59 x 8.15 x 6.1 inches
• Weight: 19.3 POUNDS
