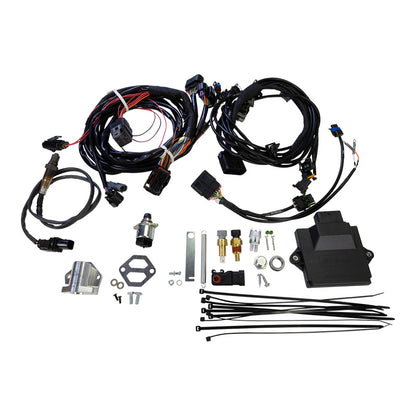

Pro-Flo 4 EFI Upgrade Kit (from Legacy Pro-Flo To Pro-Flo 4)

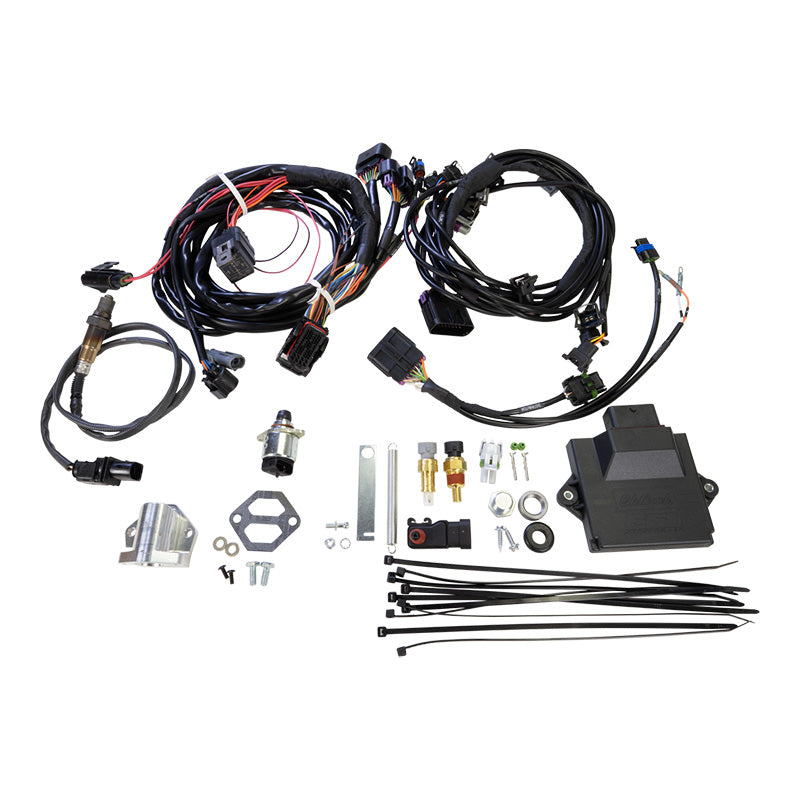

This Pro-Flo 4 EFI kit provides a solution for consumers who own a legacy Pro-Flo EFI System and want to upgrade to Pro-Flo 4. The Legacy Pro-Flo to Pro-Flo 4 EFI Upgrade Kit includes a harness, supporting sensors, and components for converting from a Legacy Pro-Flo EFI System to Pro-Flo 4 EFI. This kit consists of supporting sensors, ECU, wide-band O2 sensor, wiring harness, IAC valve, and IAC adapter. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrock’s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must provide an induction system, including the manifold, throttle body, fuel rails, and injectors, as well as a Pro-Flo distributor, fuel pump, regulator, and fuel lines. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

• Economical EFI System solution for users with existing legacy Edelbrock Pro Flo 1,2 or 3 EFI systems and components.
• Simplified installation, providing all existing features of Pro Flo 4 EFI

Vehicle Specific

• Any Legacy Pro Flo EFI Fuel Injection applications

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347899203
• Cross sell / Upsell Part Numbers: 35760 35820 35823 35810 35813 35790 35793 35870 35873 35860 29785 71383 7136 71363 7138 71383 29045 7137 71373
• Data Logger: Yes
• Display Included: No
• Distributor Included: No
• Drive-By-Wire Capable: No
• ECU Included: Yes
• EGR: No
• Fuel Injectors included: No
• Fuel Pressure Regulator Included: No
• Fuel Pump Included: No
• Fuel Rails Included: No
• Handheld Controller Included: No
• High or Low Impedence: High
• IAC Motor Included: No
• IAT Sensor Included: Yes
• Injection Style: Sequential Port
• Injector Connector Type: Minitimer / EV1
• Injector Size (lbs/hr): N/A
• Intake Finish: N/A
• Intake Manifold Included: No
• Intake Material: N/A
• MAP Sensor Included: Yes
• Maximum Horsepower with Gas: 900
• Metering Style: Speed Density
• Notes: System tuning supported by E Tuner 4 App
• Number of Connectors Supported: 8
• Oxygen Sensor Included: Yes
• Power Adder Compatible: Yes
• Quantity: Sold as kit
• Related Products: All Edelbrock and FAST EFI Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket
• Required Products: A legacy Edelbrock Pro Flo EFI system
• Self Tuning: Yes
• TPS Sensor Included: No
• Throttle Body Finish: N/A
• Throttle Body Included: No
• Throttle Body Material: N/A
• Timing Control Compatible: Yes
• Transmission Controller Included: No
• User Tunable: Yes
• Wiring harness included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12.7 x 10.3 x 7.8 inches
• Weight: 5.75 POUNDS
