Pro Flo 4 EFI ECU And Electronics Kit Ford 289/302

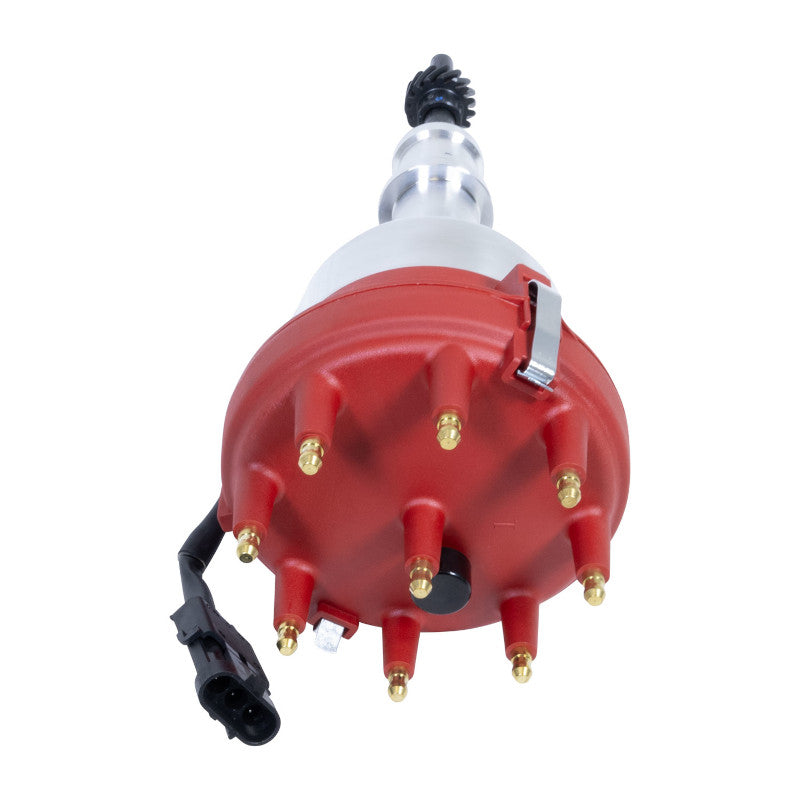

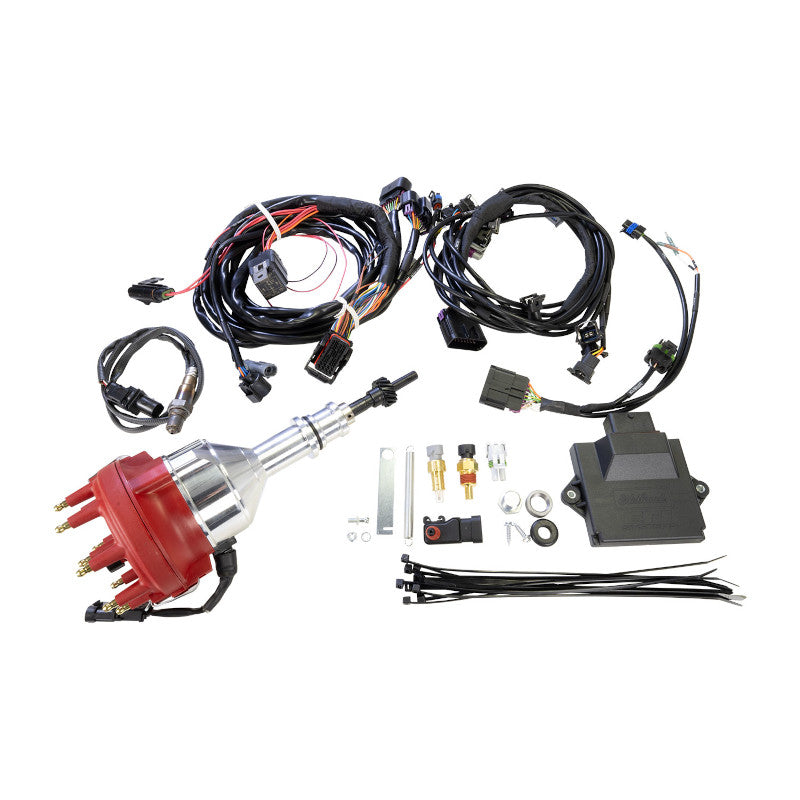

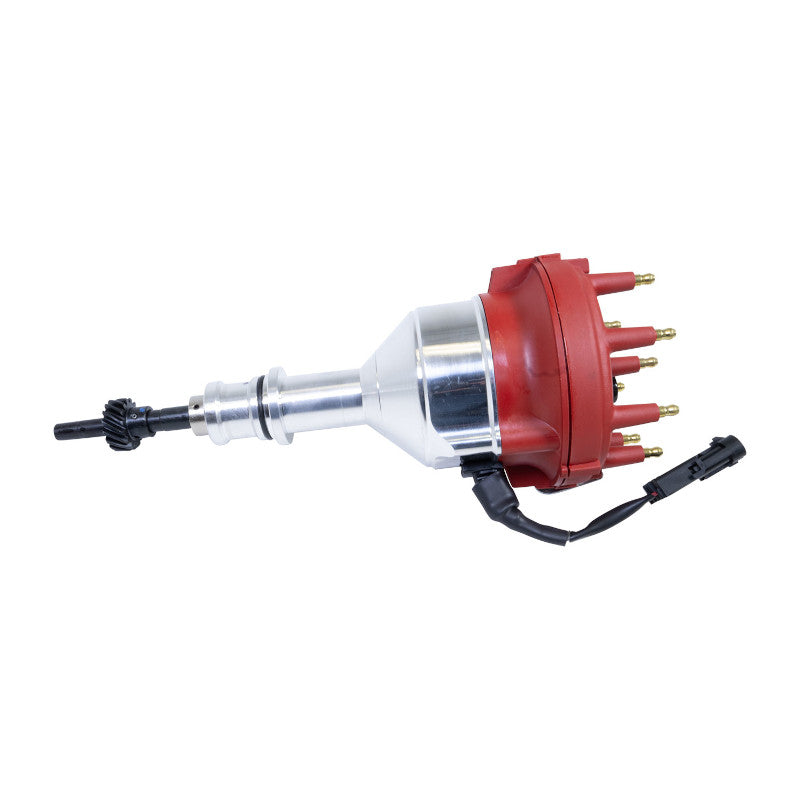

This Pro-Flo 4 ECU and Electronics Kit for Ford 289/302 engines offers an economical, plug-and-play solution for enthusiasts who want to keep their existing EFI Induction system (intake manifold, fuel rails, and accessories) but want the performance advantages of the Pro-Flo 4 EFI system. Pro Flo 4 EFI ECU and Electronics kits include supporting sensors, a distributor, an ECU, a wide-band O2 sensor, a wiring harness, and components for Ford 289/302 applications. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrock’s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must provide an induction system including a manifold, throttle body, fuel rails, and injectors. Also, a fuel pump, regulator, or fuel lines are not included. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

• Economical EFI System solution for Ford 289/302users with existing EFI components Simplified installation, providing all existing features of Pro Flo 4 EFI
• Simplified installation, providing all existing features of Pro Flo 4 EFI

Vehicle Specific

• Ford 389/302 Engine Family

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347899234
• Cross sell / Upsell Part Numbers: 35930 29215
• Data Logger: Yes
• Datalogging Support: Yes
• Display Included: No
• Distributor Included: Yes
• Drive-By-Wire Capable: No
• ECU Included: Yes
• EGR: No
• Fuel Injectors Included: No
• Fuel Pressure Regulator Included: No
• Fuel Pump Included: No
• Fuel Rails Included:: No
• Handheld Controller Included: No
• High or Low Impedence: High
• IAC Motor Included: No
• IAT Sensor Included: Yes
• Injection Style: Sequential Port
• Injector Connector Type: Minitimer / EV1
• Intake Manifold Included: No
• MAP Sensor Included: Yes
• Maximum Horsepower W/ Gas: 900
• Metering Style: Speed Density
• Notes: System tuning supported by E Tuner 4 App
• Number of Connectors Supported: 8
• Oxygen Sensor Included: Yes
• Power Adder Compatible: Yes
• Quantity: Sold as a kit
• Related Products: All Edelbrock and FAST EFI Ford 289/302 Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket
• Required Products: Fuel Injection Intake assembly including Fuel Rails and Injectors
• Self-Tuning: Yes
• TPS Sensor Included: No
• Throttle Body Included: No
• Timing Control Compatible: Yes
• Transmission Controller Included: No
• User Tunable: Yes
• Wiring harness included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.1 x 14.8 x 8.8 inches
• Weight: 11.6 POUNDS
