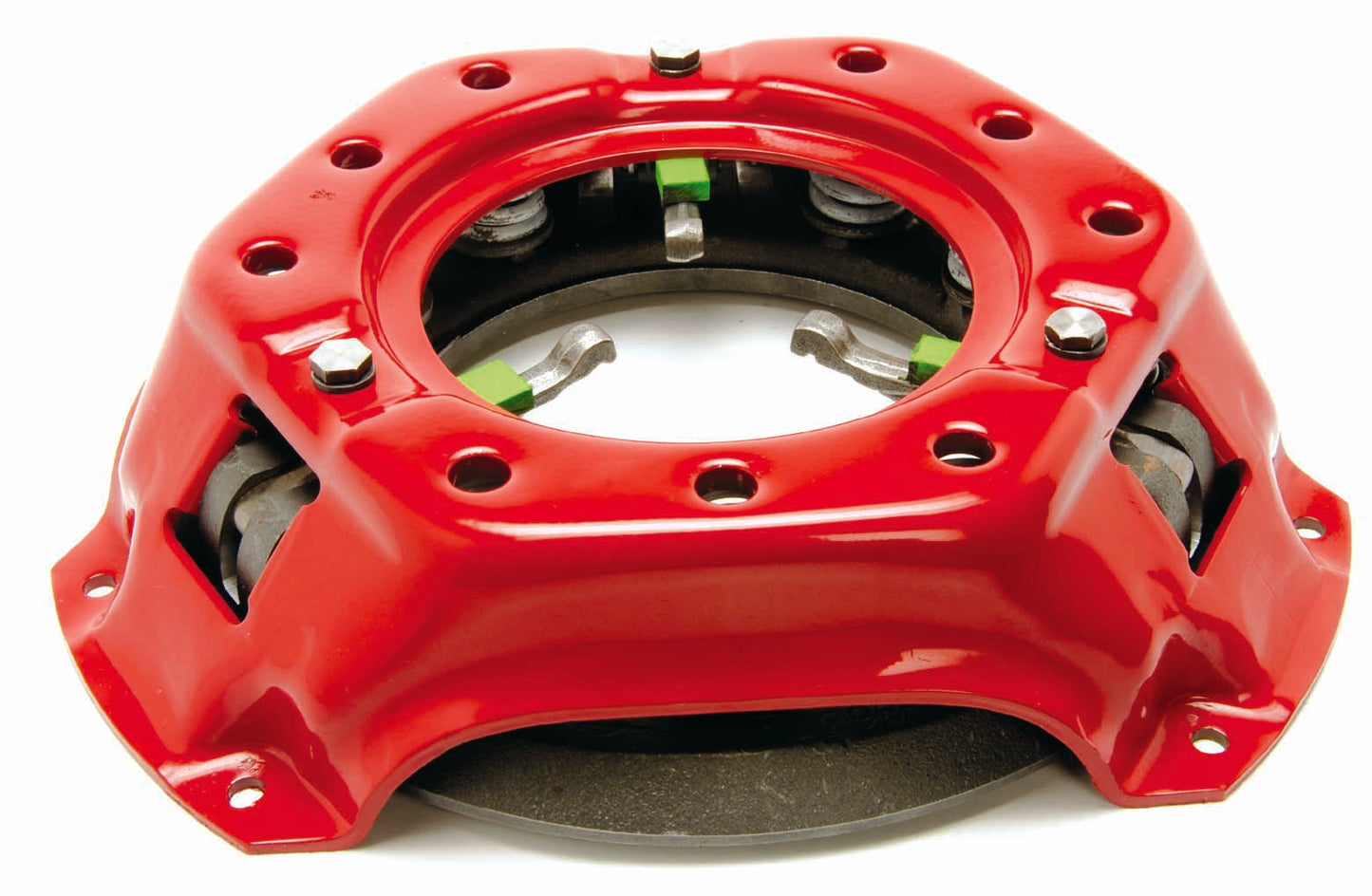

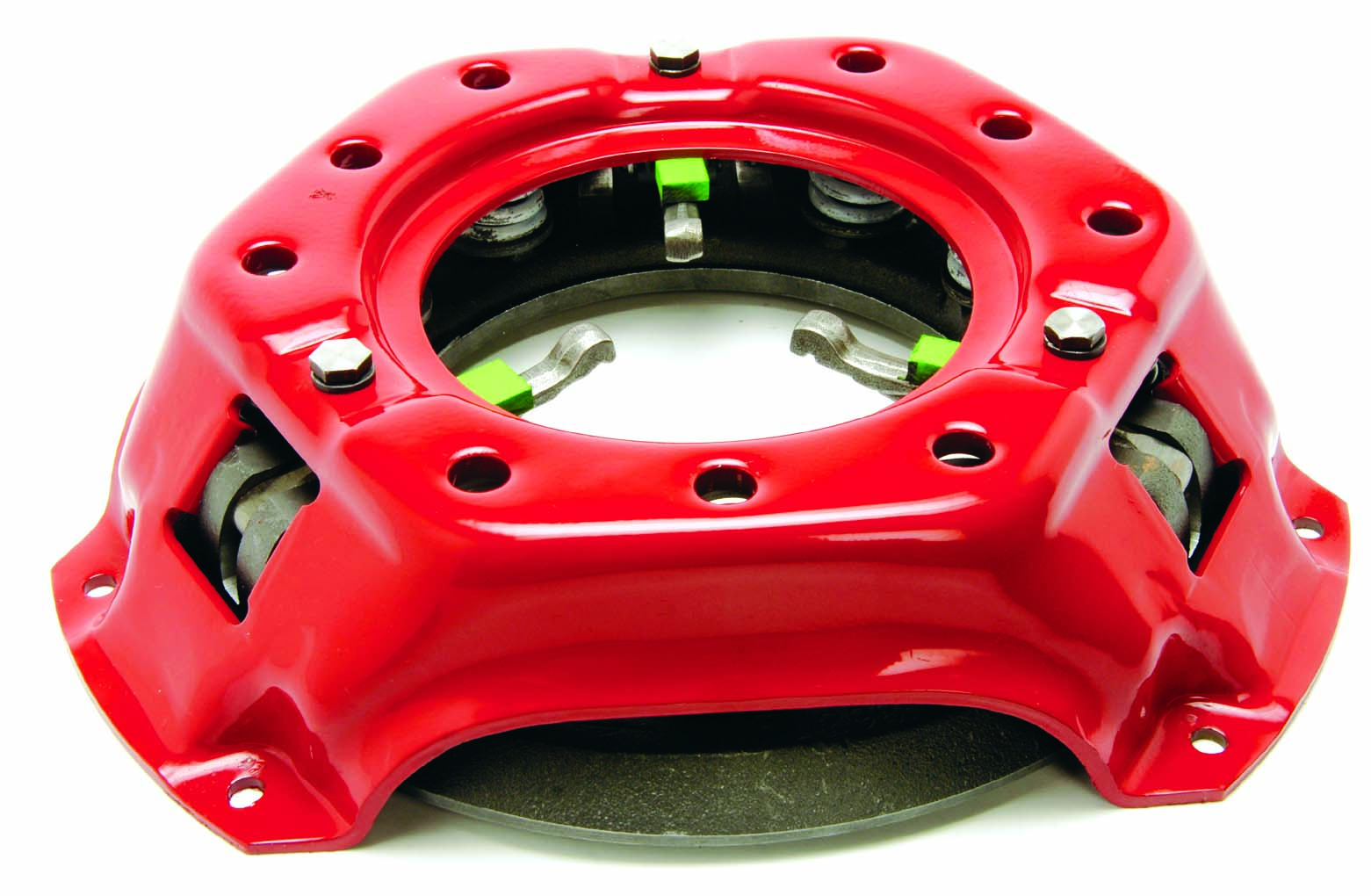

McLeod Racing Pressure Plates

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

• • Drag Racing, Road Racing, Oval Tracks • Diaphragm, Borg & Beck, and Long types. • General Motors, Ford, Chrysler and Import applications.

Vehicle Specific

• DeTomaso: Pantera 71 - 89 5.8 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753018724
• Application: 1971-88 De Tomaso Pantera
• Bolt Circle: 3-3/8In.
• Bolt Holes Dia: 5/16 x 18
• Clamp Load: 2200 Lbs
• Counterweight Assist: No
• Dowel Pins Required: No
• Hardware Included: No
• Make: Ford
• Pressure Plate Diameter (in.): 11.000
• Pressure Plate Pattern: Ford Long Pattern
• SFI Approved: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 13.25 x 3.25 inches
• Weight: 20 POUNDS
