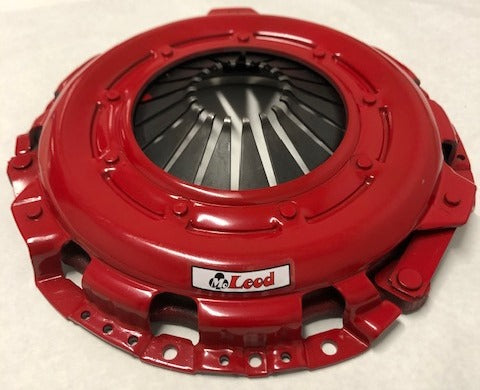

McLeod Racing Pressure Plates

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

• • Drag Racing, Road Racing, Oval Tracks • Diaphragm, Borg & Beck, and Long types. • General Motors, Ford, Chrysler and Import applications.

Vehicle Specific

• Ford: Custom 65 - 72 7 L Engine, Ford: Fairlane 65 - 69 7 L Engine, Ford: Falcon 70 - 70 7 L Engine, Ford: GT40 66 - 69 7 L Engine, Ford: Galaxie 65 - 67 7 L Engine, Ford: Galaxie 500 68 - 72 7 L Engine
• Ford: LTD 66 - 72 7 L Engine, Ford: Mustang 68 - 71 7 L Engine, Ford: Ranchero 68 - 71 7 L Engine, Ford: Torino 68 - 72 7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753018885
• Application: Ford Big Block 429-460; 332-428 BB Fe
• Bolt Circle: 3-9/16
• Bolt Holes Dia: 5/16 x 18
• Clamp Load: 2250 Lbs
• Counterweight Assist: No
• Dowel Pins Required: No
• Hardware Included: No
• Make: Ford
• NOTE:: Comes With Mechanical Bearing for 1-3/8 x 10 Inputshaft
• Pressure Plate Diameter (in.): 12.000
• Pressure Plate Pattern: Ford Long Pattern
• SFI Approved: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 13.25 x 3.25 inches
• Weight: 20 POUNDS

PDF:
