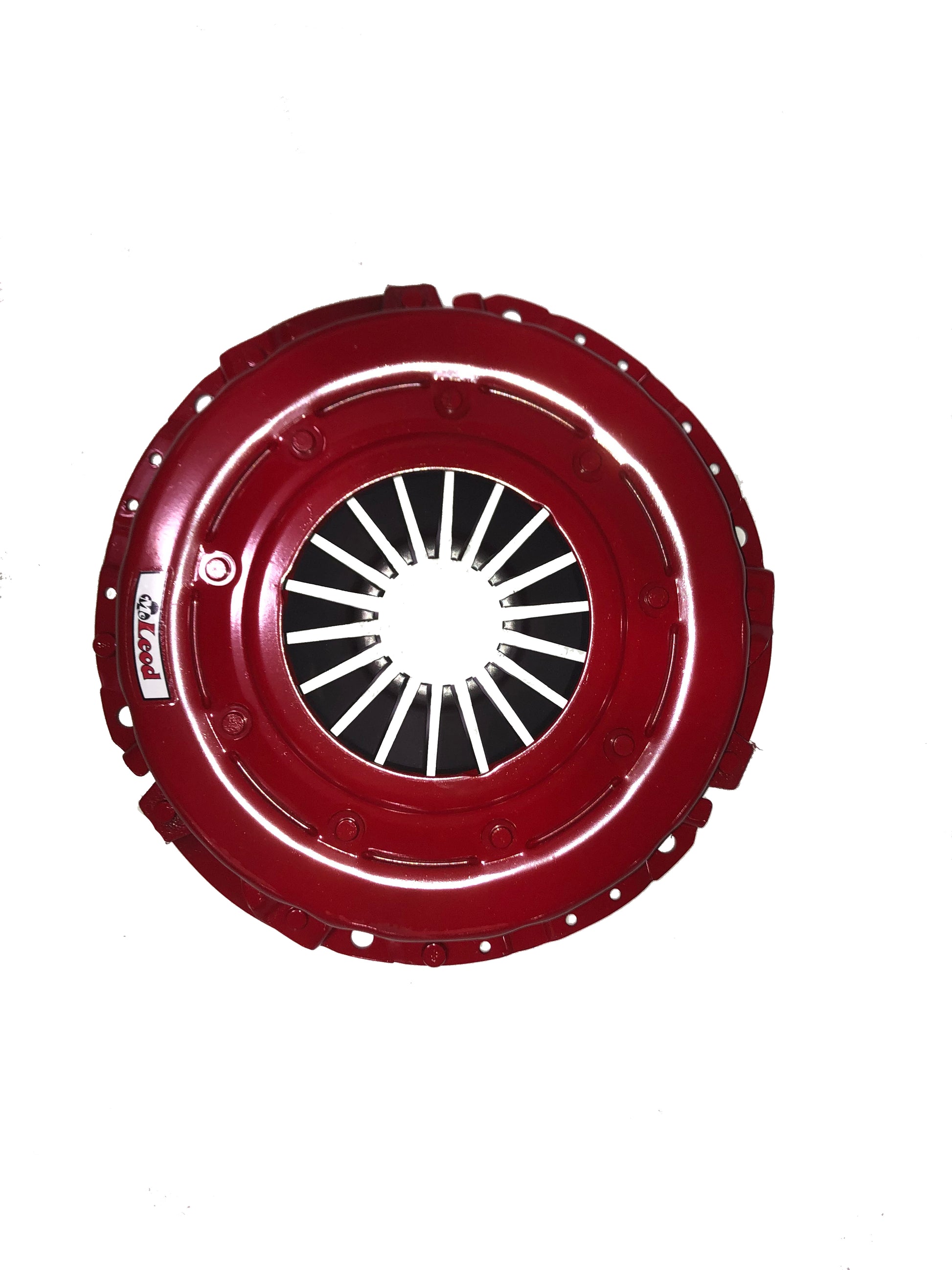

McLeod Racing Pressure Plates

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

• • Drag Racing, Road Racing, Oval Tracks • Diaphragm, Borg & Beck, and Long types. • General Motors, Ford, Chrysler and Import applications.

Vehicle Specific

• Chevrolet: Camaro 82 - 92 5 L Engine, Chevrolet: Camaro 87 - 92 5.7 L Engine, Chevrolet: Corvette 80 - 80 5 L Engine, Chevrolet: Corvette 71 - 88 5.7 L Engine, Chrysler: 300 62 - 66 6.3 L Engine
• Dodge: D300 Pickup 68 - 71 6.3 L Engine, Dodge: D300 Series 61 - 67 5.2 L Engine, Dodge: D300 Series 67 - 67 6.3 L Engine, Dodge: Dart 61 - 72 5.2 L Engine, Dodge: Dart 68 - 72 5.6 L Engine
• Dodge: Dart 61 - 72 5.9 L Engine, Dodge: Dart 61 - 69 6.3
• Chrysler: 300 59 - 65 6.7 L Engine, Chrysler: 300 59 - 65 6.8 L Engine, Chrysler: Imperial 59 - 59 6.7 L Engine, Chrysler: Newport 61 - 71 5.9 L Engine, Chrysler: Newport 65 - 71 6.3 L Engine
• Chrysler: Newport 61 - 65 6.7 L Engine, Chrysler: Saratoga 59 - 60 6.3 L Engine, Chrysler: Windsor 59 - 61 6.3 L Engine, Dodge: 880 62 - 64 5.9 L Engine, Dodge: 880 64 - 65 6.3 L Engine
• Dodge: B100 Van 71 - 72 5.2 L Engine, Dodge: B100 Van 71 - 72 5.9 L Engine, Dodge: B200 Van 71 - 72 5.2 L Engine, Dodge: B200 Van 71 - 72 5.9 L Engine, Dodge: B300 Van 71 - 72 5.2 L Engine
• Dodge: B300 Van 71 - 72 5.9 L Engine, Dodge: Challenger 70 - 72 5.2 L Engine, Dodge: Challenger 70 - 72 5.6 L Engine, Dodge: Challenger 71 - 72 5.9 L Engine, Dodge: Challenger 70 - 71 6.3 L Engine
• Dodge: Charger 66 - 72 5.2 L Engine, Dodge: Charger 70 - 72 5.6 L Engine, Dodge: Charger 66 - 72 5.9 L Engine, Dodge: Charger 66 - 71 6.3 L Engine, Dodge: Coronet 65 - 72 5.2 L Engine
• Dodge: Coronet 70 - 72 5.6 L Engine, Dodge: Coronet 65 - 72 5.9 L Engine, Dodge: Coronet 65 - 71 6.3 L Engine, Dodge: D100 Pickup 68 - 72 5.2 L Engine, Dodge: D100 Pickup 71 - 72 5.9 L Engine
• Dodge: D100 Pickup 68 - 71 6.3 L Engine, Dodge: D100 Series 61 - 67 5.2 L Engine, Dodge: D100 Series 67 - 67 6.3 L Engine, Dodge: D200 Pickup 68 - 72 5.2 L Engine, Dodge: D200 Pickup 71 - 72 5.9 L Engine
• Dodge: D200 Pickup 68 - 71 6.3 L Engine, Dodge: D200 Series 61 - 67 5.2 L Engine, Dodge: D200 Series 67 - 67 6.3 L Engine, Dodge: D300 Pickup 68 - 72 5.2 L Engine, Dodge: D300 Pickup 71 - 72 5.9 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753018762
• Application: GM, Mopar, AMC
• Bolt Circle: 11-5/8In.
• Bolt Holes Dia: 3/8 x 16
• Clamp Load: 2750 Lbs
• Counterweight Assist: No
• Dowel Pins Required: No
• Hardware Included: No
• Make: GM, Mopar, AMC
• Pressure Plate Diameter (in.): 10.500
• Pressure Plate Pattern: Borg & Beck Even Pattern
• SFI Approved: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 13.25 x 3.25 inches
• Weight: 20 POUNDS
