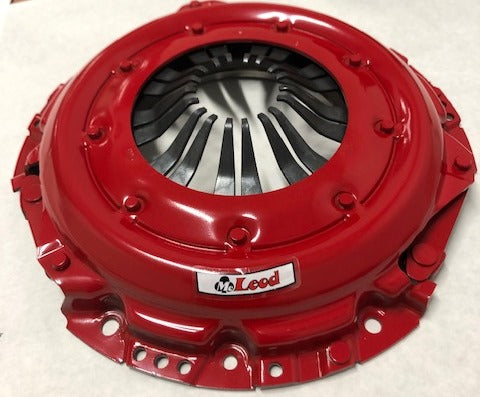

McLeod Racing Pressure Plates

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

• • Drag Racing, Road Racing, Oval Tracks • Diaphragm, Borg & Beck, and Long types. • General Motors, Ford, Chrysler and Import applications.

Vehicle Specific

• Ford: Fairlane 58 - 59 5.4 L Engine, Ford: Fairlane 58 - 69 5.8 L Engine, Ford: Fairlane 61 - 69 6.4 L Engine, Ford: Fairlane 64 - 69 7 L Engine, Ford: Falcon 69 - 70 5.8 L Engine
• Ford: Galaxie 59 - 67 5.8 L Engine, Ford: Galaxie 59 - 59 5.9 L Engine, Ford: Galaxie 61 - 67 6.4 L Engine, Ford: Galaxie 62 - 63 6.6 L Engine, Ford: Galaxie 63 - 67 7 L Engine
• Ford: Mustang 69 - 73 5.8 L Engine, Ford: Mustang 67 - 69 6.4 L Engine, Ford: Ranchero 68 - 71 5 L Engine, Ford: Ranchero 69 - 71 5.8 L Engine, Ford: Ranchero 68 - 69 6.4 L Engine
• Ford: Torino 68 - 74 5 L Engine, Ford: Torino 69 - 74 5.8 L Engine, Ford: Torino 68 - 70 6.4 L Engine, Mercury: Comet 69 - 69 5.8 L Engine, Mercury: Comet 66 - 69 6.4 L Engine
• Mercury: Commuter 65 - 68 6.4 L Engine, Mercury: Cougar 69 - 73 5.8 L Engine, Mercury: Cougar 67 - 70 6.4 L Engine, Mercury: Cougar 73 - 73 6.6 L Engine, Mercury: Cyclone 69 - 71 5.8 L Engine
• Mercury: Cyclone 66 - 70 6.4 L Engine, Mercury: Cyclone 71 - 71 6.6 L Engine, Mercury: Marauder 69 - 70 6.4 L Engine, Mercury: Marquis 70 - 71 5.8 L Engine, Mercury: Marquis 67 - 70 6.4 L Engine
• Mercury: Marquis 71 - 71 6.6 L Engine, Mercury: Meteor 62 - 62 5.8 L Engine, Mercury: Meteor 62 - 63 6.4 L Engine, Mercury: Montclair 64 - 68 6.4 L Engine, Mercury: Montego 69 - 73 5.8 L Engine
• Mercury: Montego 68 - 69 6.4 L Engine, Mercury: Montego 72 - 73 6.6 L Engine, Mercury: Monterey 62 - 73 5.8 L Engine, Mercury: Monterey 62 - 70 6.4 L Engine, Mercury: Monterey 62 - 73 6.6 L Engine
• Mercury: Park Lane 64 - 68 6.4 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753019219
• Application: Small Block Ford; Big Block Ford
• Bolt Circle: 3-3/8In.
• Bolt Holes Dia: 5/16 x 18
• Clamp Load: 2400 Lbs
• Counterweight Assist: No
• Dowel Pins Required: No
• Hardware Included: No
• Make: Ford
• NOTE:: Fingers are laser cut for big shaft top loader 1.750In. guide tube.
• Pressure Plate Diameter (in.): 11.000
• Pressure Plate Pattern: Ford Long Pattern
• SFI Approved: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 14.5 x 3.25 inches
• Weight: 19 POUNDS
