Precision-Flow Fuel Injector (42 Lb/hr)

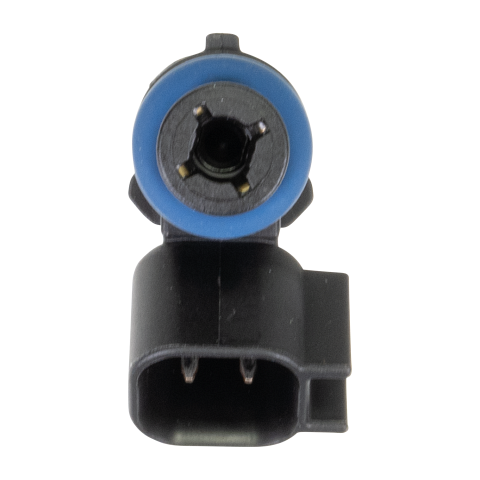

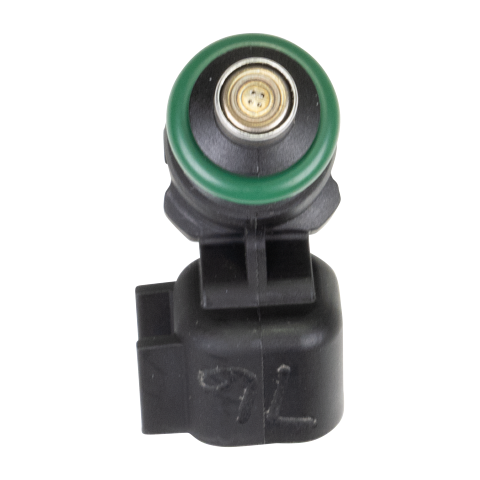

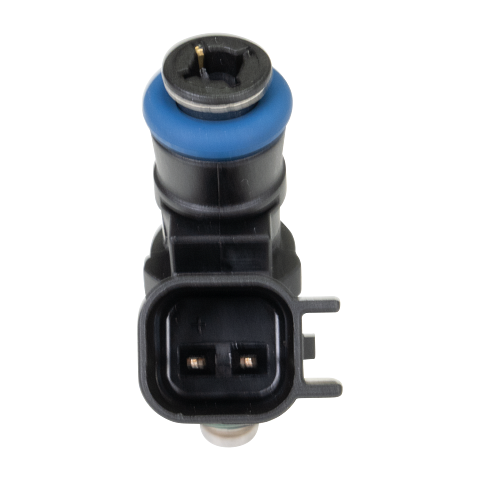

These new Precision-Flow high-impedance fuel injectors deliver the outstanding idle quality, unparalleled flow consistency, and durability essential for high-performance EFI applications. With a flow rate of 42 lb/hr (440cc/min) at 43.5 psi (3 BAR), these are the same high-quality fuel injectors used in the Edelbrock Pro-Flo 4, 675 horsepower-rated EFI Kits. Engineered for excellent response and fuel atomization, Precision-Flow Fuel Injectors are manufactured and 100% flow tested to maintain the tightest tolerances in the industry. They undergo a multi-point dynamic flow testing process to ensure they meet the stated flow rate within +/- 2%. Testing at multiple pulse widths, rather than just at static flow, ensures consistent cylinder-to-cylinder fuel delivery throughout the entire operating range of an engine, not just at maximum capacity. The result is a smoother-running engine that is easier to tune and maintains a consistent cylinder-to-cylinder air-fuel ratio. They are a short-body style injector using a USCAR-style connector with a standard .550” O.D. lower O-ring and measure 1.480” from O-ring to O-ring. These injectors are designed for pre-pollution-controlled or race applications only. Available as single injectors or in sets of 8, these Precision-Flow fuel injectors are the final piece of your fuel delivery system in any EFI-equipped application.

• Flow matched to 2%
• Consistent fueling from cylinder to cylinder
• Multi-point Dynamic Flow Testing
• Ensures that the injectors deliver the required fuel flow throughout their operating range and not just at max flow
• Excellent Fuel Atomization
• Maximizes fuel efficiency for clean, complete combustion

Vehicle Specific

• Precision-Flow 42 LB/HR Fuel Injector Universal Application Single

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347899630
• Body Type: Short
• Connector Type: USCAR
• E85 Compatible: Yes
• Flow Rate: 42
• Impedance: High
• Length from O-ring to O-ring: 1.48
• Lower O-Ring Diameter: 0.550
• Manufacturer: Edelbrock
• Oxygenated Fuel Compatible: Yes
• Rated Fuel Pressure: 43.5

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Released

Packing Information:

• Quantity of Each: 1
• Package UOM: PK
• Dimension: 5.7 x 2.8 x 1.8 inches
• Weight: 0.1 POUNDS
