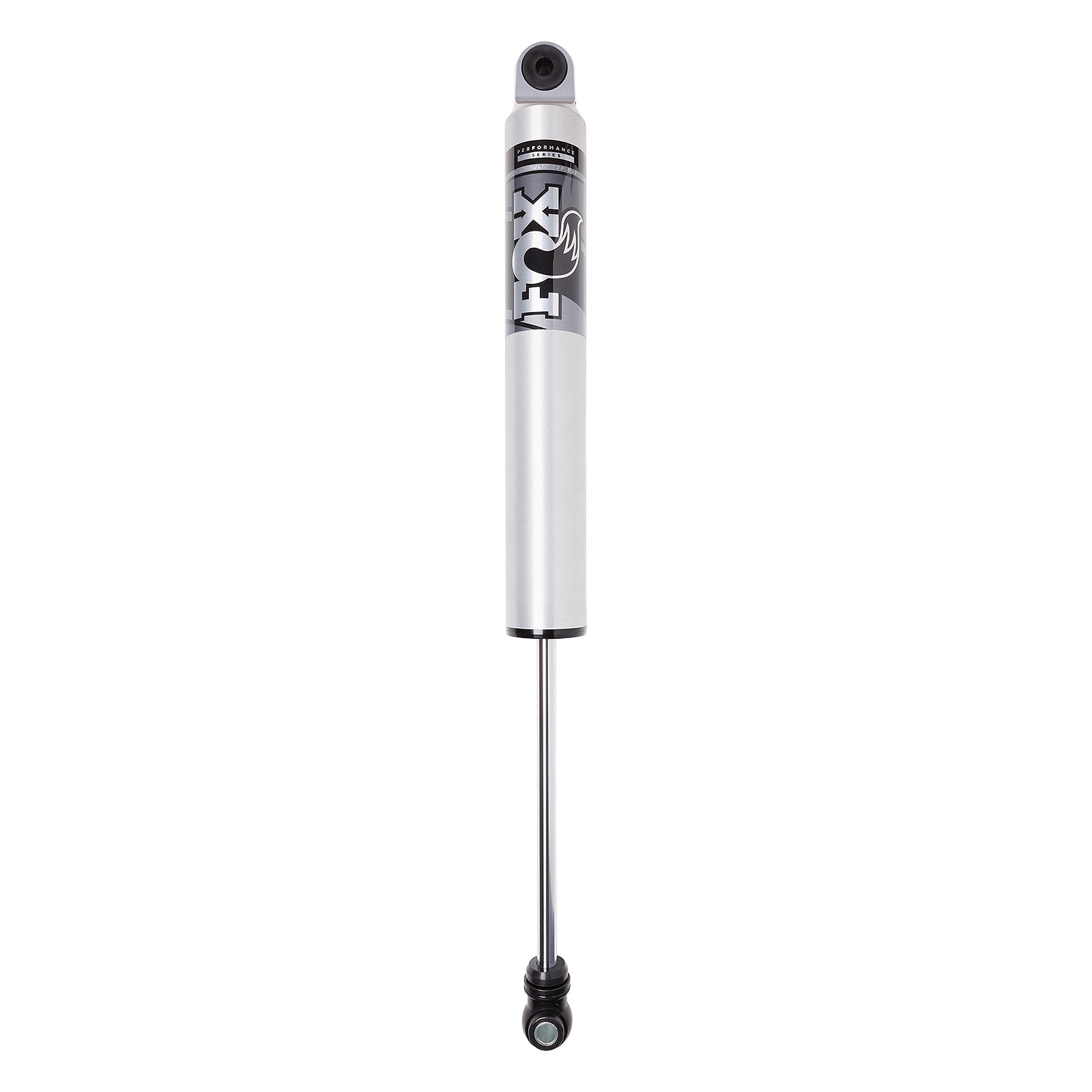

PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK

FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Corrosion resistant
• Application specific tune
• Fully rebuildable and re-tunable

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878899369
• Body Diameter (in): 2.5
• Body Material: Aluminum
• Bottom Mount: Eyelet
• Compressed Length (in): 17.54
• Extended Length (in): 26.72
• Fox Catalog: TRUCK
• Label Name: 11-ON GM 2500, 3500, Rear, 2.5 Truck PS, IFP, 1.5-2.5” Lift, HTO
• Reservoir Type: Internal Floating Piston
• Series: Performance
• Top Mount: Eyelet
• Travel (in): 9.18
• Type: Smooth Body

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.0000 x 3.0000 x 3.0000 inches
• Weight: 7.0000 POUNDS
